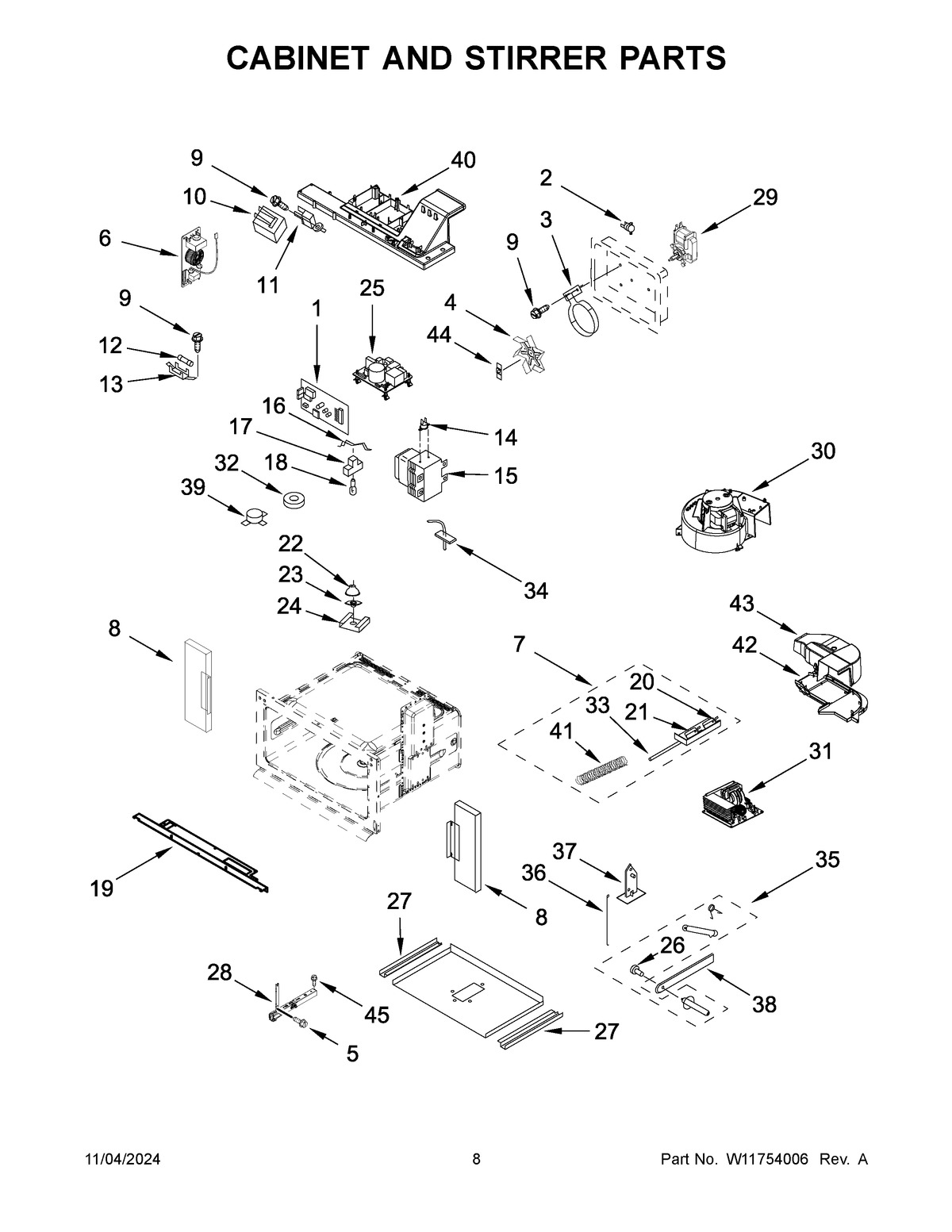

JMC2430LL01 05 – CABINET AND STIRRER PARTS

Products

Position	Product
1	W11325784 Whirlpool Microwave Electronic Control Board
2	W11607085 Whirlpool Microwave Thermostat Fix
3	WPW10493735 Whirlpool Microwave Heater
4	W11512064 Whirlpool Microwave Fan
5	W11690594 Whirlpool Screw
6	W11578573 Whirlpool Filter
7	W11033422 Whirlpool Microwave Interlock
8	W10486208 Whirlpool Microwave Trim
8A	TRIM, SIDE (RIGHT)
9	461967825321 Whirlpool Microwave Screw
10	W11238401 Whirlpool Microwave Transformer
11	461967842541 Whirlpool Microwave Actuator
12	W11188752 Whirlpool Microwave Fuse
13	W10245194 Whirlpool Microwave Fuse Block
14	W11233913 Whirlpool Microwave Sensor
15	W11578959 Whirlpool Magnetron
16	W10465869 Whirlpool Microwave Spring
17	WPW10490593 Whirlpool Microwave Lamp Housing
18	W10886919 Whirlpool Light Bulb
19	W11334716 Whirlpool Door Trim
20	W10211972 Whirlpool Microwave Switch
21	W11214928 Whirlpool Microwave Interlock
22	423107022541 Whirlpool Microwave Reflector
23	W11193483 Whirlpool Microwave Lamp Lens
24	W11440819 Whirlpool Clip
25	WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
26	WPW10128850 Whirlpool Microwave Arm
27	8205707 Whirlpool Microwave Support
28	HINGE, DOOR
29	W11534564 Whirlpool Microwave Convection Motor
30	W11344874 Whirlpool Microwave Fan Motor
31	W11578579 Whirlpool Inverter
32	W10769147 Whirlpool Microwave Foam Seal
33	WPW10120235 Whirlpool Microwave Relief Rod
34	W11208292 Whirlpool Microwave Sensor
36	W11700292 Whirlpool Spring
37	W11684510 Whirlpool Support
38	W11607070 Whirlpool Arm
39	W11699906 Whirlpool Sensor
40	461967754821 Whirlpool Microwave Magnetic Duct
41	W11715912 Whirlpool Spring Assembly
42	HOUSING, LOWER INVERTER
43	HOUSING, UPPER INVERTER
44	W11724411 Whirlpool Support
45	461967825601 Whirlpool Screw
