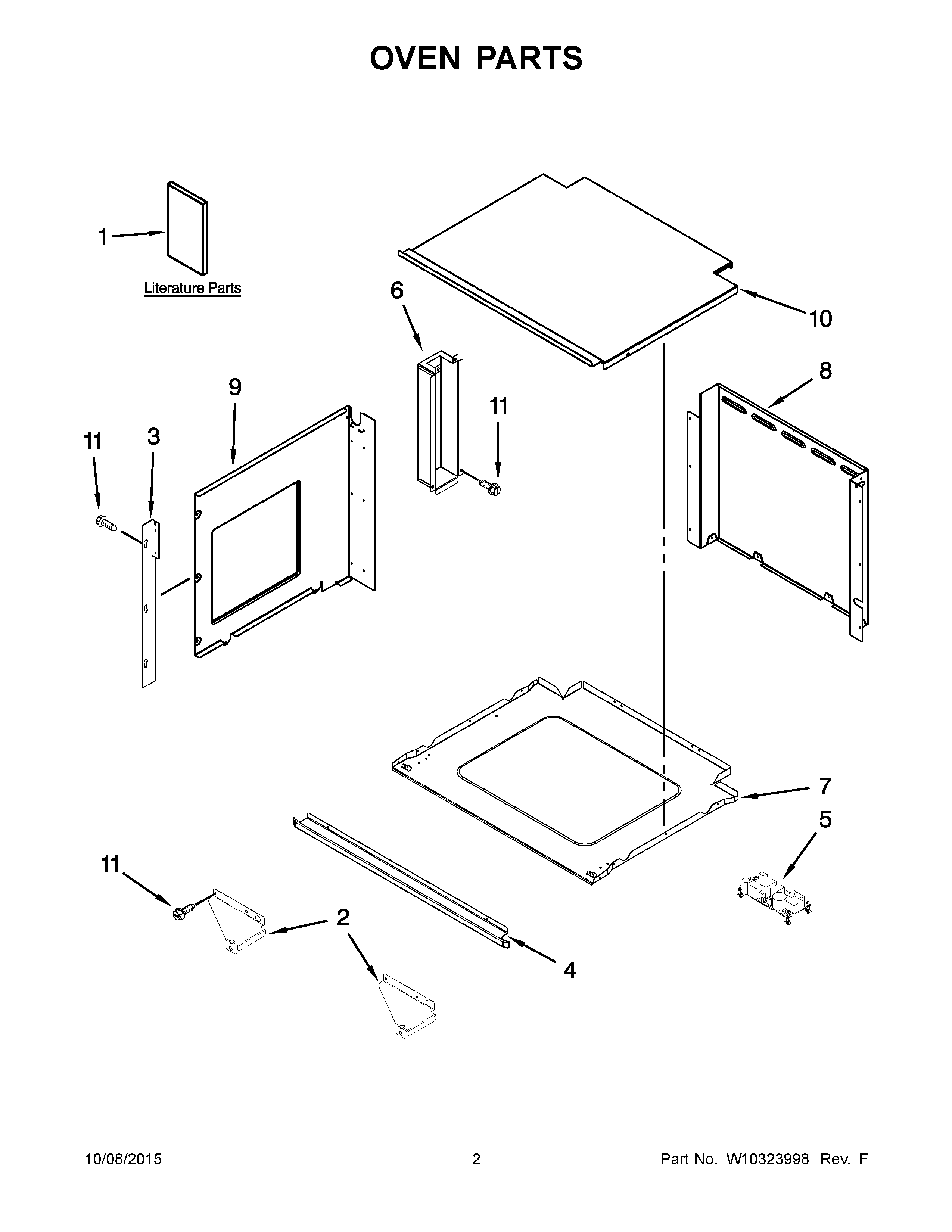

JMC2430WP01 02 – OVEN PARTS

Products

PositionProduct
NIRELAY OMRON
NIRELAY OEG
NIMISCELLANEOUS PARTS, HARNESS, COMM SMPS
NIMAY W10277591
NIMAY 7401P099-60
NICONDUIT
NIMAY 4450800
1ETIPS, SAFE COOKING (ENGLISH)
1FTIPS, SAFE COOKING (FRENCH)
1BMAY W10221391
1MAY W10221385
1DMAY W10213736
1CMAY W10213735
1AINSTR, INSTALLER
2ABRACKET, LOWER (RIGHT)
2BRACKET, LOWER (LEFT)
3MAY W10283693
4MAY W10284663
5CONTROL, ELEC
6BOX, CONDUIT
10LINER (NOT A SERVICEABLE PART)
11MAY 7101P426- 60
