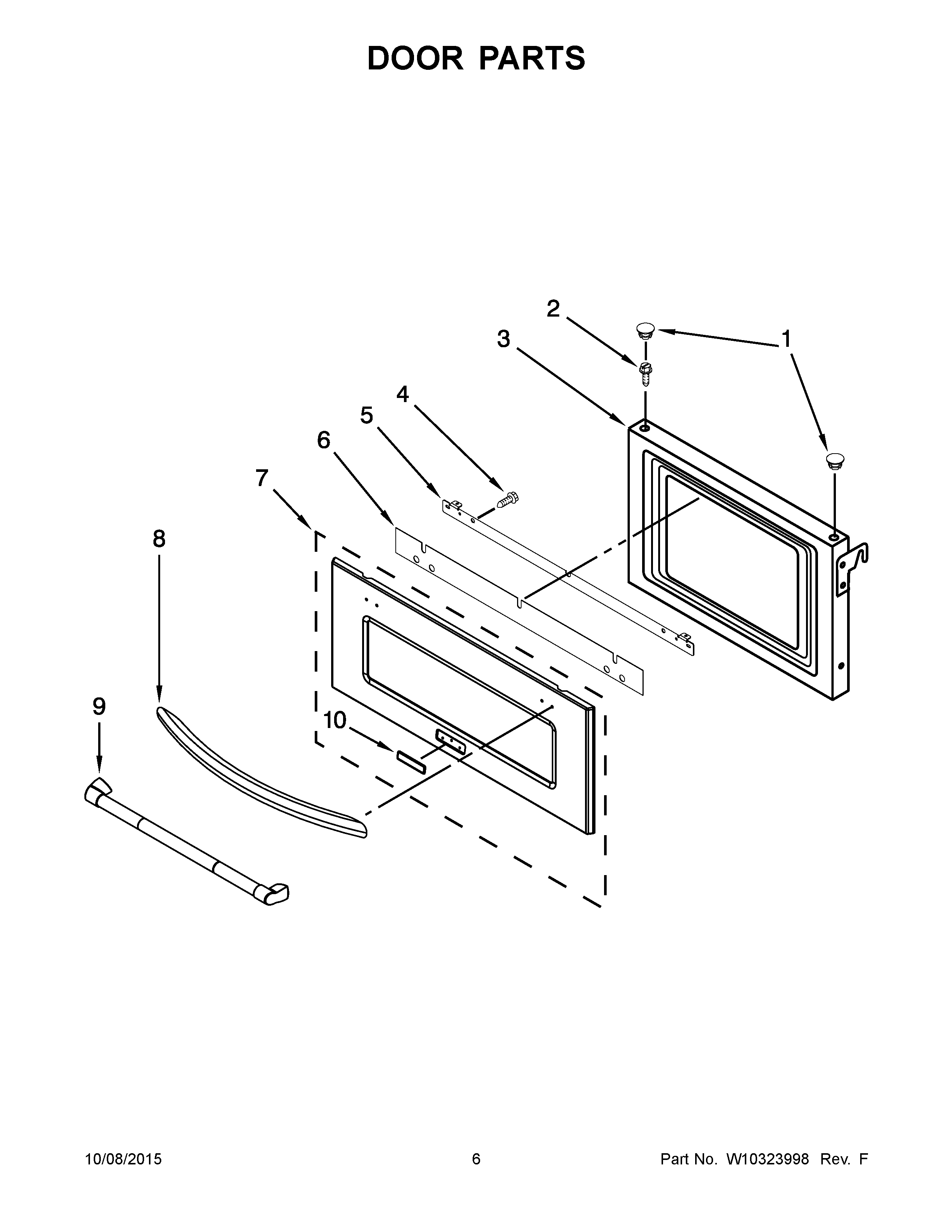

JMC2430WR01 04 – DOOR PARTS

JMC2430WR01 04 – DOOR PARTS

Written by

in

JMC2430WR01 04 – DOOR PARTS

Products

PositionProduct
1CAP, SCREW
2MAY 7101P426- 60
3MAY W10288012
4SCREW, HANDLE (STANDARD)
5BRACKET, HANDLE
5AMAY W10281176
6MAY W10314607
7AMAY W10269421
7CMAY W10269423
7MAY W10176200
7BMAY W10269422
8AMAY W10186756
8BMAY W10186757
8MAY W10186755
9HANDLE, DOOR
10ASSEMBLY, BADGE (BLACK)
10AASSEMBLY, BADGE (STAINLESS)
10BASSEMBLY, BADGE (OILED BRONZE)
10CMAY W10159578
