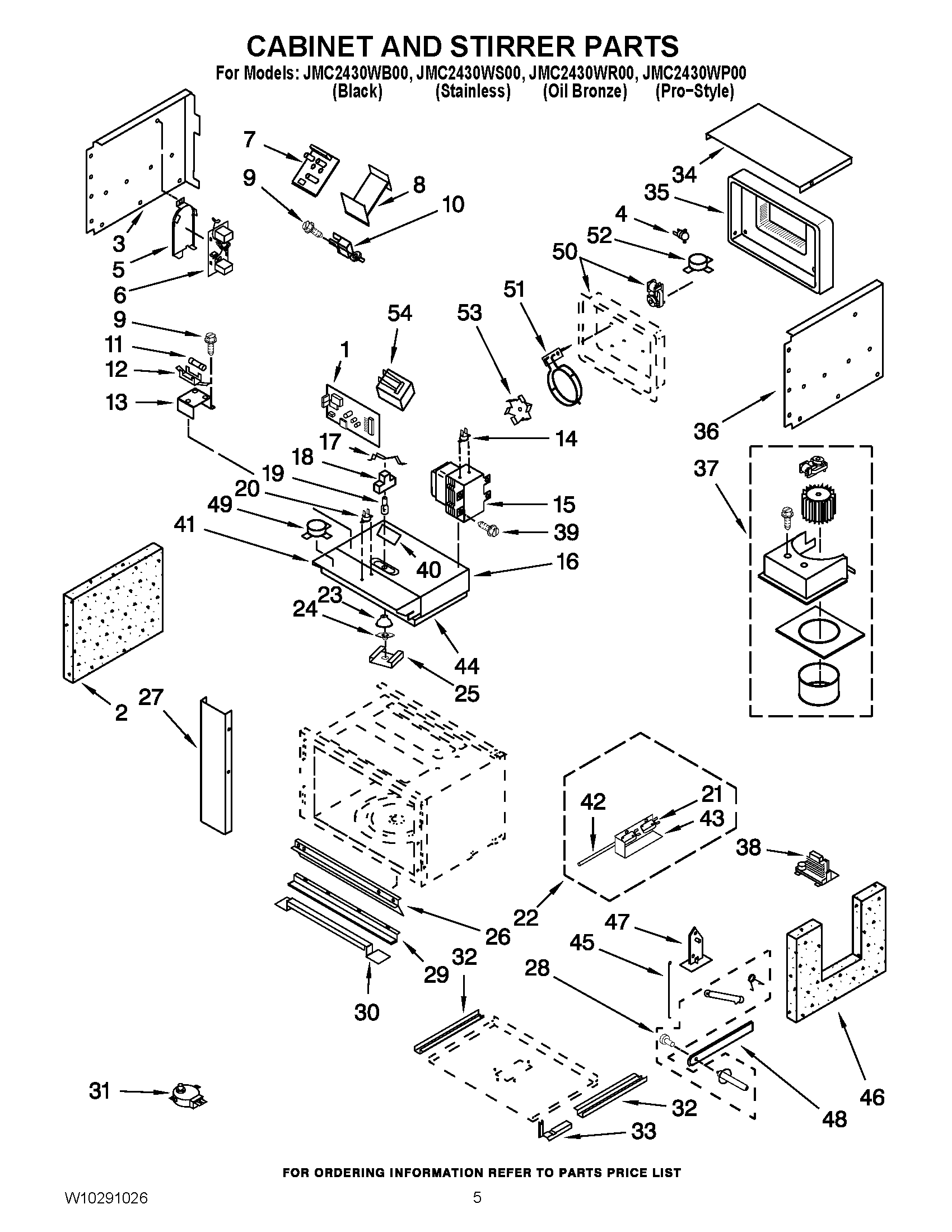

JMC2430WS00 04 – CABINET AND STIRRER PARTS

JMC2430WS00 04 – CABINET AND STIRRER PARTS

Written by

in

JMC2430WS00 04 – CABINET AND STIRRER PARTS

Products

Position	Product
1	MAY W10287989
2	MAY W10130901
3	MAY W10120471
4	MAY W10120223
6	MAY W10287966
7	CONTROL, ELECTRIC CONVERTER
9	MAY W10131249
10	ACTUATOR
11	MAY 4375321
12	BLOCK, FUSE
13	BRACKET, SUPPORT
14	MAY W10287986
15	MAY W10120113
17	SPRING, LAMP
18	MAY W10287974
19	MAY W10287972
20	MAY W10287985
21	MAY 4375346
22	ASSEMBLY, INTERLOCK SWITCH
23	MAY 4375320
24	MAY 4375318
25	CLIP, SPRING
28	ASSEMBLY, SLIDING ARM
32	SUPPORT
33	MAY W10120478
37	MAY W10330572
38	MAY W10120229
39	MAY W10130890
42	ROD, RELEASE
43	HOLDER, SWITCH
45	SPRING
46	LINER (NOT A SERVICEABLE PART)
47	MAY 8205686
48	ARM
49	MAY W10287988
50	MOTOR, CONVECTION
51	HEATER, CONVECTION
52	MAY W10287987
53	FAN, CONVECTION
54	TRANSFORMER
