JMC2430WS01 04 – DOOR PARTS – Aparts

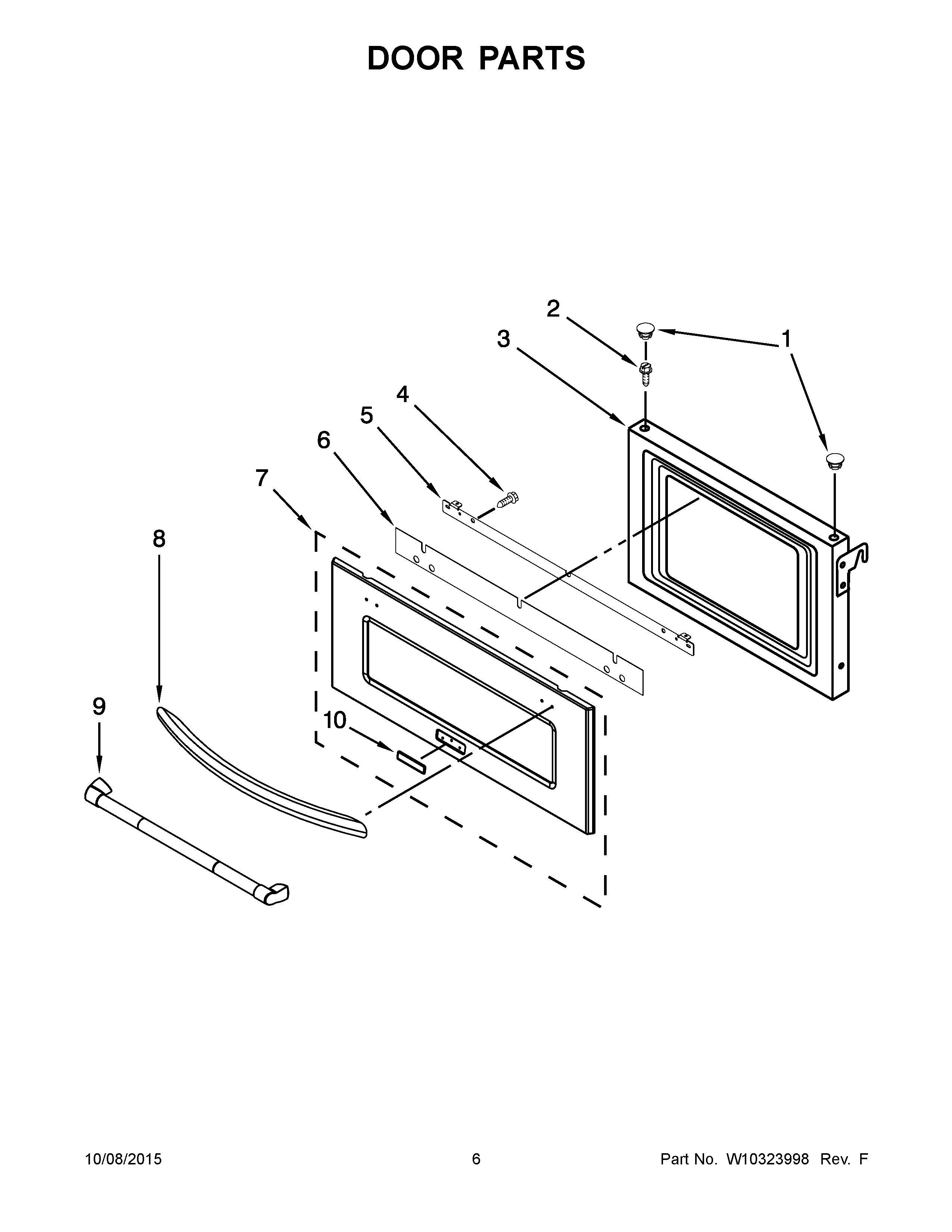

JMC2430WS01 04 – DOOR PARTS

Products

Position	Product
1	CAP, SCREW
2	MAY 7101P426- 60
3	MAY W10288012
4	SCREW, HANDLE (STANDARD)
5	BRACKET, HANDLE
5A	MAY W10281176
6	MAY W10314607
7A	MAY W10269421
7C	MAY W10269423
7	MAY W10176200
7B	MAY W10269422
8A	MAY W10186756
8B	MAY W10186757
8	MAY W10186755
9	HANDLE, DOOR
10	ASSEMBLY, BADGE (BLACK)
10A	ASSEMBLY, BADGE (STAINLESS)
10B	ASSEMBLY, BADGE (OILED BRONZE)
10C	MAY W10159578
