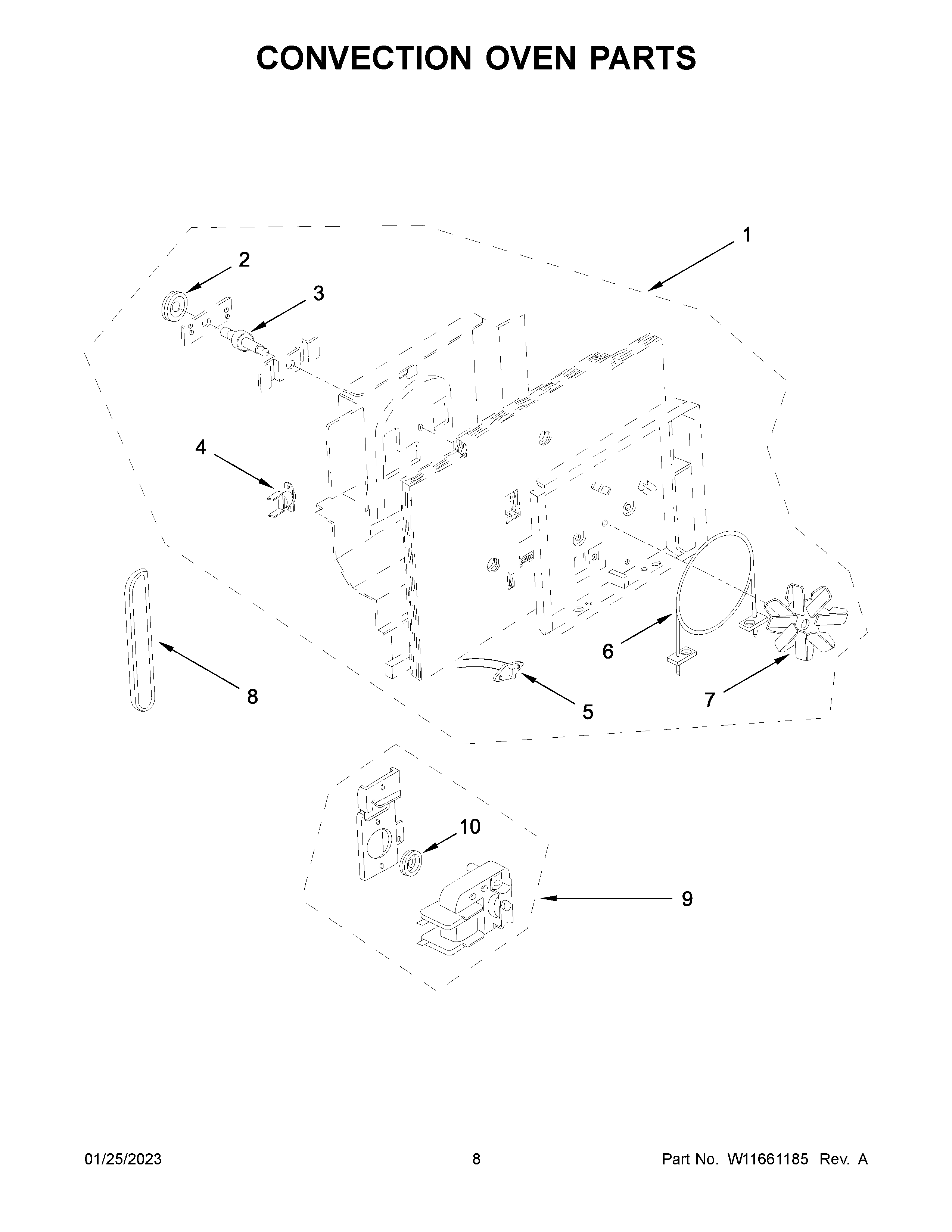

JMC3415ES02 05 – CONVECTION OVEN PARTS

Written by

Products

Position	Product
1	ASSEMBLY, CONVECTION HEATER
2	PULLEY
3	ASSEMBLY, BEARING
4	CUTOUT, THERMAL (OVEN AND CONVECTION)
5	THERMISTOR
6	ELEMENT, CONVECTION
7	FAN, CONVECTION
8	BELT, FAN
9	MOTOR, CONVECTION
10	PULLEY
