JMC8127DDB 01 – BODY BASE & CAVITY – Aparts

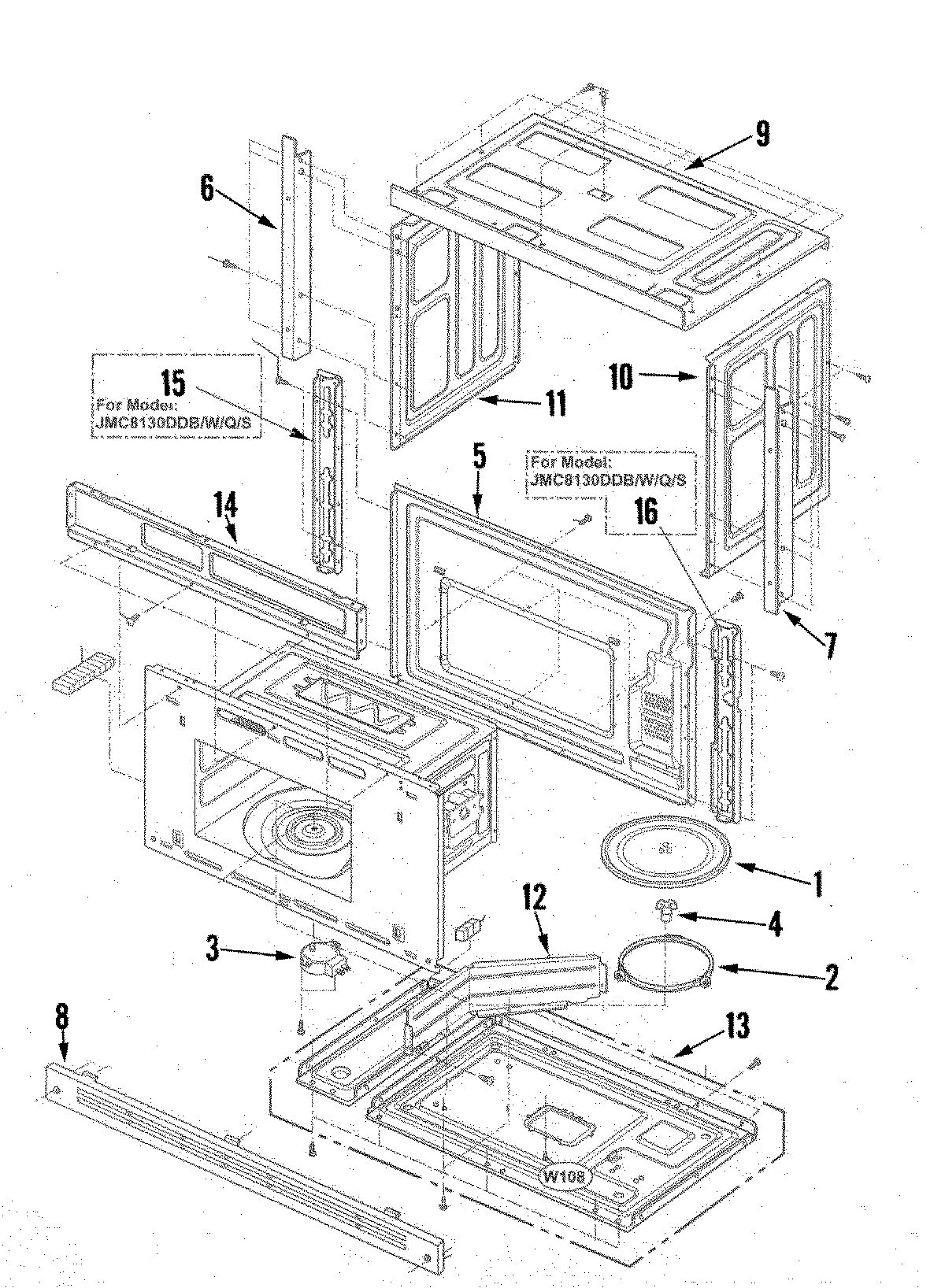

JMC8127DDB 01 – BODY BASE & CAVITY

Products

Position	Product
1	MAY 53001023
2	Ring, Rotating
3	MAY 53001025
4	MAY R0130605
5	MAY 53001298
6	Trim, Side (LH)
7	Trim, Side (RH)
8	MAY 53001265
8	MAY R9800360
9	MAY 53001299
10	Side, Chassis (Right Side)
11	Side, Chassis (Left Side)
12	MAY 53001273
13	BASE, PLATE
14	BRACKET, CNTRL
