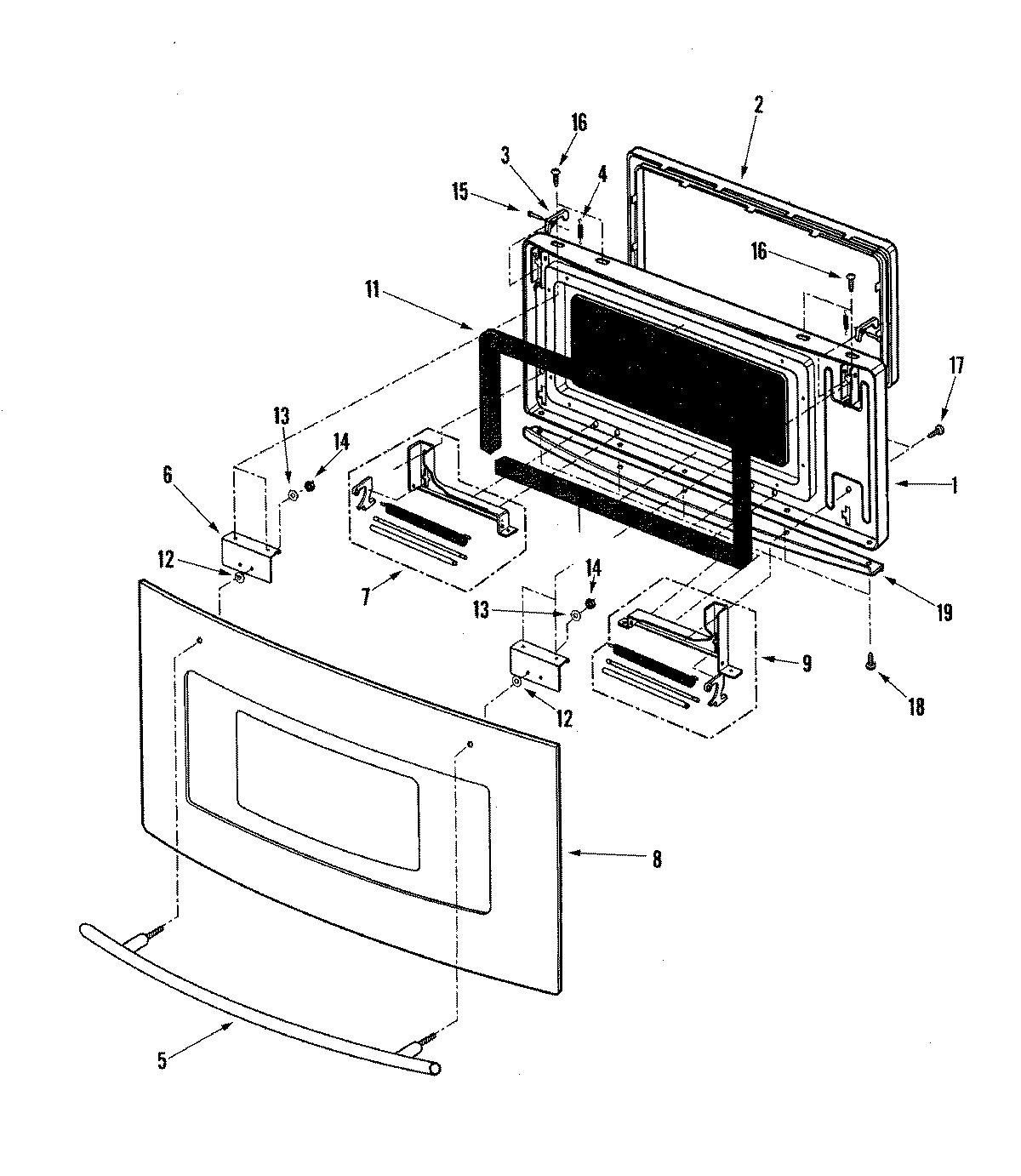

JMC8127DDQ 03 – DOOR ASSEMBLYadmin2025-04-26T09:38:02+00:00JMC8127DDQ 03 – DOOR ASSEMBLY
Products
| Position | Product |
|---|
| 1 | FRAME, DOOR |
| 2 | MAY 53001219 |
| 3 | MAY 53001220 |
| 4 | MAY 53001221 |
| 5 | HANDLE, DOOR |
| 6 | Bracket, LH |
| 7 | HINGE, LH |
| 8 | GLASS, DOOR (BISQUE) |
| 9 | HINGE, RH |
| 10 | Bracket, RH |
| 11 | Cushion, Door |
| 12 | MAY 53001286 |
| 13 | Washer, Sprg Lck |
| 14 | MAY 53001283 |
| 15 | MAY 53001281 |
| 16 | MAY 53001284 |
| 17 | MAY 53001285 |
| 18 | MAY R9800309 |
| 19 | Trim, Door Btm |
