JMC8127DDS 05 – INTERNAL CONTROLS

JMC8127DDS 05 – INTERNAL CONTROLS

Written by

in

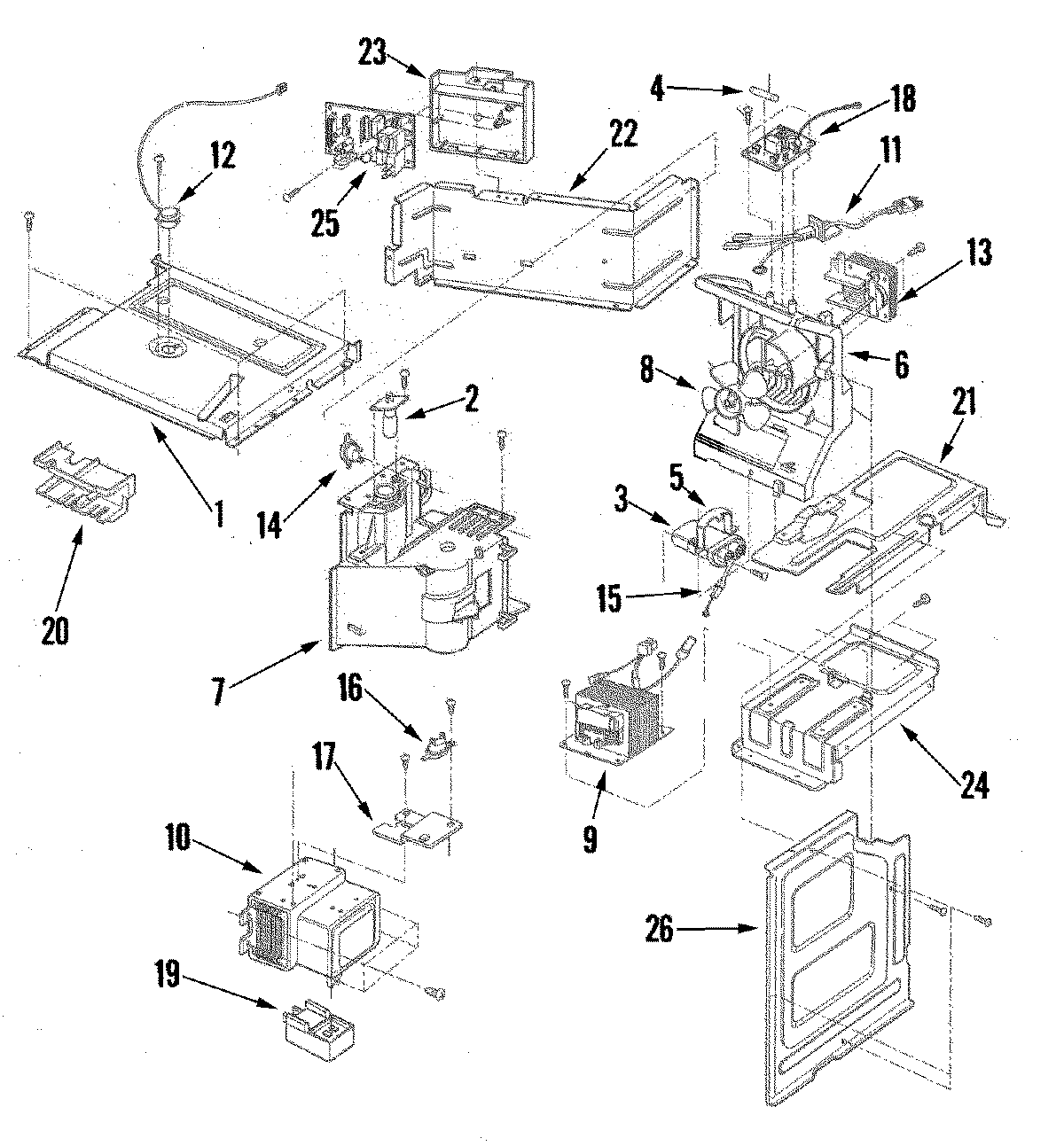

JMC8127DDS 05 – INTERNAL CONTROLS

Products

PositionProduct
1MAY R0130675
2WP8183592 Whirlpool Microwave Lamp Bulb Assembly
3MAY 53001110
4WPM0805101 Whirlpool Microwave Replacement Fuse (20A)
5MAY 53001248
6MAY 53001250
7MAY 53001251
8MAY 53001252
9Transformer, H.V.
10MAY R9900082
11MAY 53001254
12MAY 53001255
13Motor, Fan
14Thermostat
15WP13091701 Whirlpool Microwave Rectifier
16MAY R9900321
17Bracket, Therm.
18MAY 53001259
19FILTER, CHOKE
20MAY 53001260
21MAY 53001272
22MAY 53001274
23Base, PCB
24Bottom
25Board, Power
26Plate, Shield
