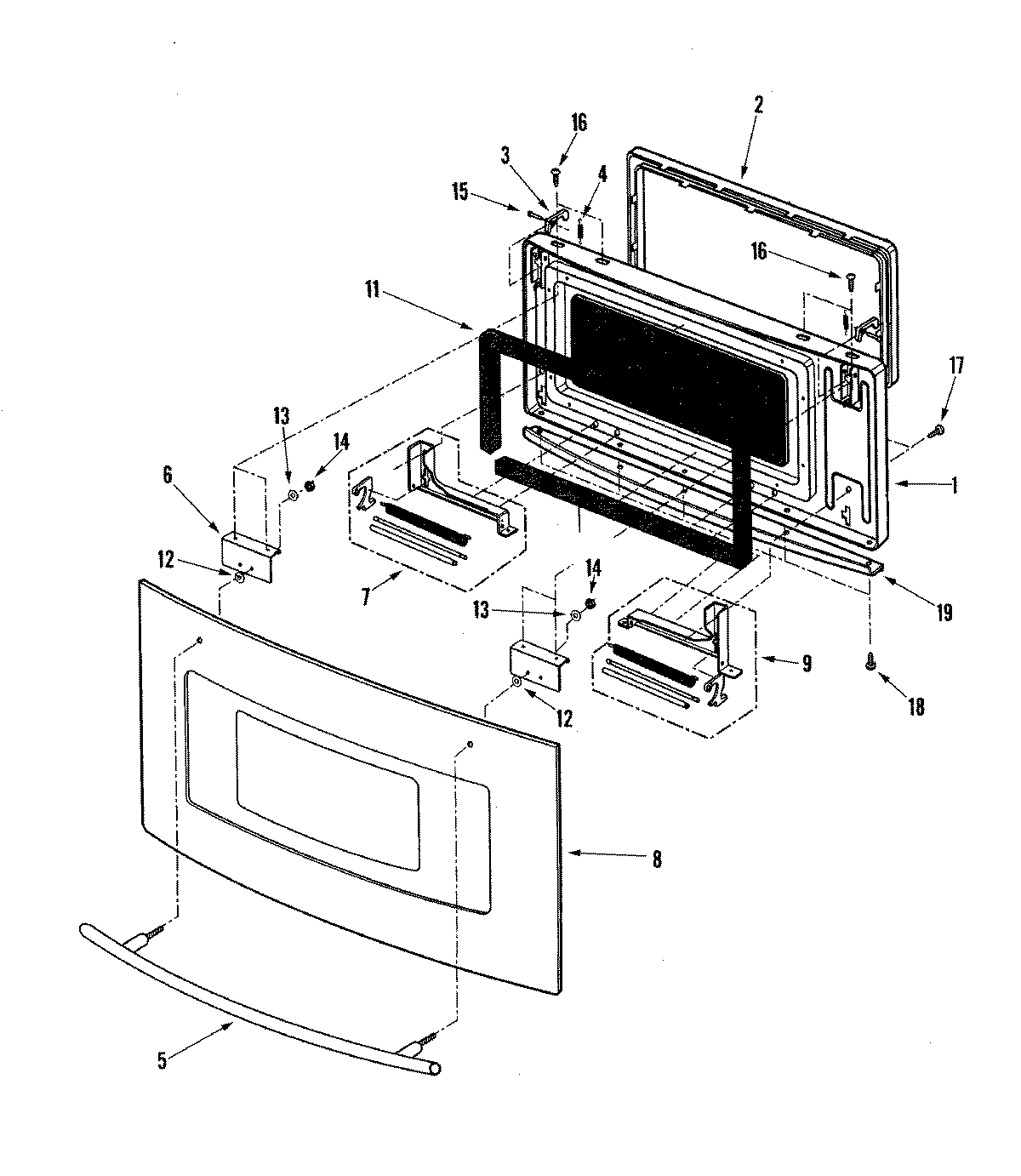

JMC8127DDW 03 – DOOR ASSEMBLY

Products

Position	Product
1	FRAME, DOOR
2	MAY 53001219
3	MAY 53001220
4	MAY 53001221
5	HANDLE, DOOR
6	Bracket, LH
7	HINGE, LH
8	GLASS, DOOR (WHITE)
9	HINGE, RH
10	Bracket, RH
11	Cushion, Door
12	MAY 53001286
13	Washer, Sprg Lck
14	MAY 53001283
15	MAY 53001281
16	MAY 53001284
17	MAY 53001285
18	MAY R9800309
19	Trim, Door Btm
