JMC8130DDB 01 – BODY BASE & CAVITY

JMC8130DDB 01 – BODY BASE & CAVITY

Written by

in

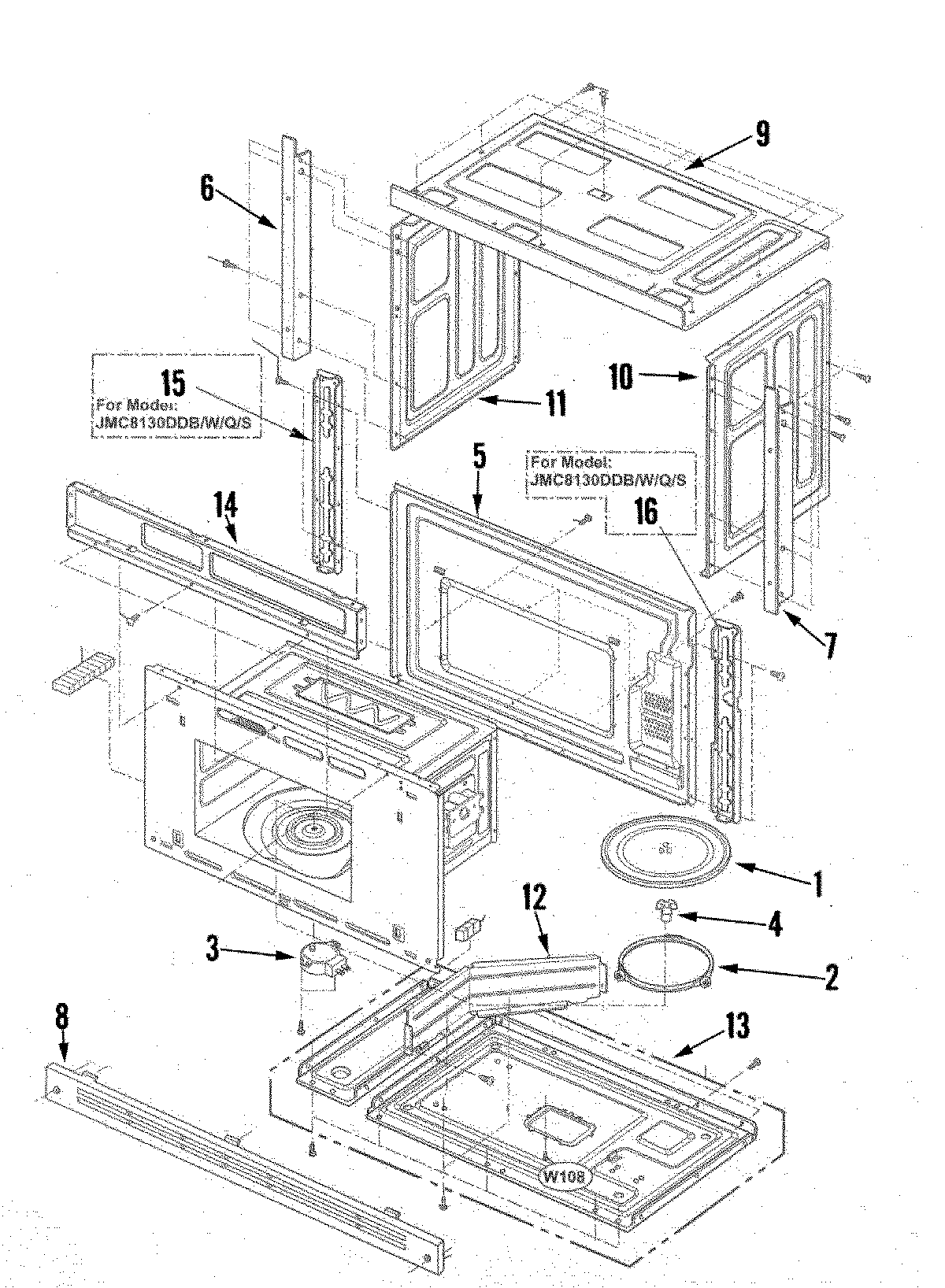

JMC8130DDB 01 – BODY BASE & CAVITY

Products

PositionProduct
1MAY 53001023
2Ring, Rotating
3MAY 53001025
4MAY R0130605
5MAY 53001298
6Trim, Side (LH)
7Trim, Side (RH)
8Trim, Bottom
8MAY R9800360
9MAY 53001299
10Side, Chassis (Right Side)
11Side, Chassis (Left Side)
12MAY 53001273
13Base, Plate
14Bracket, Cntrl
15Bracket, Back (LH)
16Bracket, Back (RH)
17MAY R0130667
