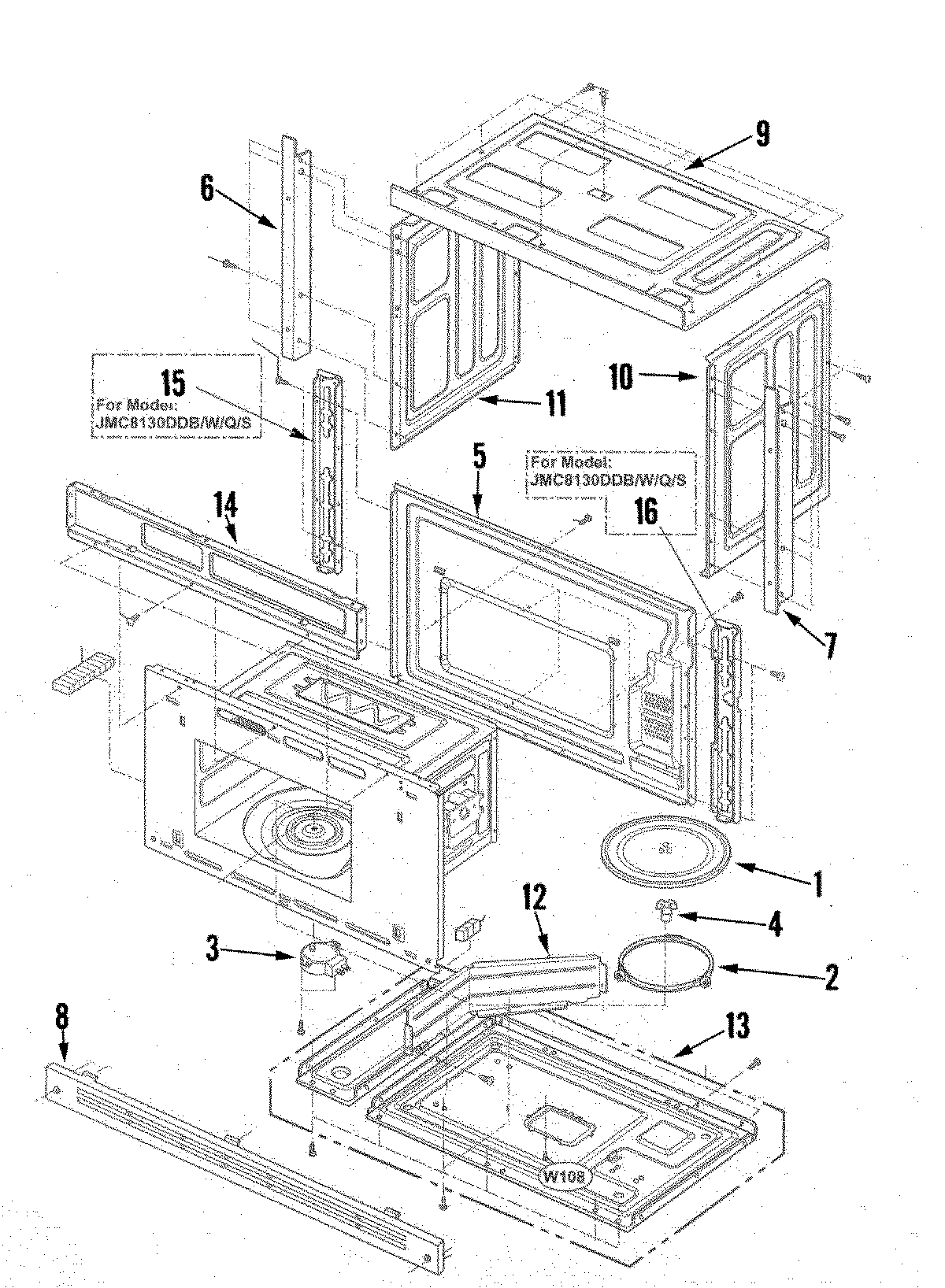

JMC8130DDQ 01 – BODY BASE & CAVITYadmin2025-04-26T09:38:20+00:00JMC8130DDQ 01 – BODY BASE & CAVITY
Products
| Position | Product |
|---|
| 1 | MAY 53001023 |
| 2 | Ring, Rotating |
| 3 | MAY 53001025 |
| 4 | MAY R0130605 |
| 5 | MAY 53001298 |
| 6 | Trim, Side (LH) |
| 7 | Trim, Side (RH) |
| 8 | Trim, Bottom |
| 8 | MAY R9800360 |
| 9 | MAY 53001299 |
| 10 | Side, Chassis (Right Side) |
| 11 | Side, Chassis (Left Side) |
| 12 | MAY 53001273 |
| 13 | Base, Plate |
| 14 | Bracket, Cntrl |
| 15 | Bracket, Back (LH) |
| 16 | Bracket, Back (RH) |
| 17 | MAY R0130667 |
