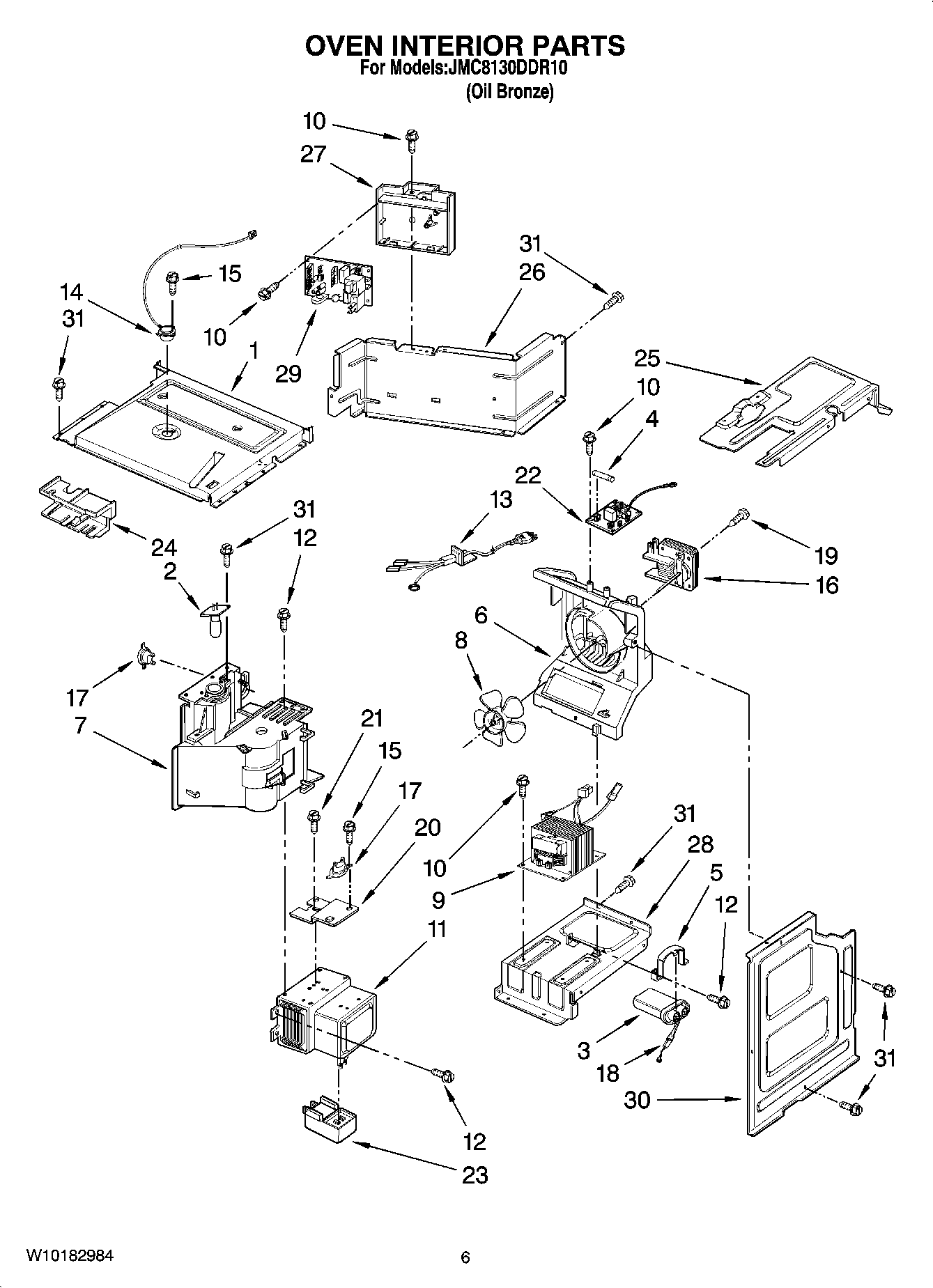

JMC8130DDR10 05 – OVEN INTERIOR PARTS

Products

Position	Product
1	Tunnel, Air
2	WP8183592 Whirlpool Microwave Lamp Bulb Assembly
3	WP59001168 Whirlpool Microwave Capacitor
4	WP8183507 Whirlpool Microwave Fuse
5	MAY 53001248
6	MAY 53001250
7	MAY 53001251
8	MAY 53001252
9	Transformer, H.V.
10	MAY R0654183
11	W10859575 Whirlpool Magnetron
12	MAY R0131029
13	MAY 53001254
14	MAY 53001255
15	MAY R0131307
16	Motor, Fan
17	Thermostat
18	MAY B8383102
19	MAY R9800411
20	Bracket, Therm.
21	MAY R9900293
22	MAY 53001259
23	MAY 53001565
24	MAY 53001260
25	MAY 53001272
26	MAY 53001274
27	Base, PCB
28	Bottom
29	Board, Power
30	Plate, Shield
31	W11380570 Whirlpool Microwave Screw
