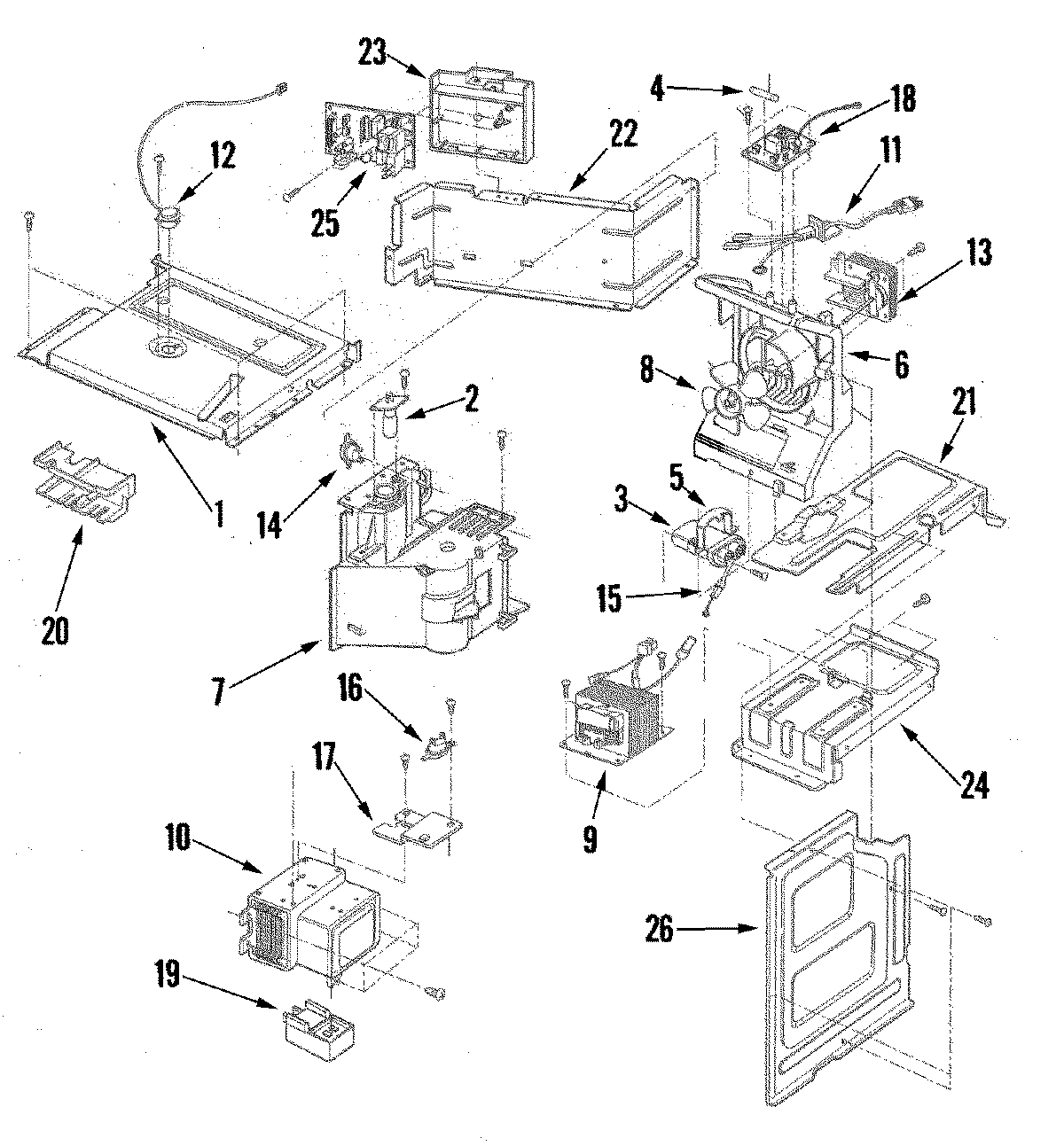

JMC8130DDW 05 – INTERNAL CONTROLS

Products

Position	Product
1	MAY R0130675
2	WP8183592 Whirlpool Microwave Lamp Bulb Assembly
3	MAY 53001110
4	WPM0805101 Whirlpool Microwave Replacement Fuse (20A)
5	MAY 53001248
6	MAY 53001250
7	MAY 53001251
8	MAY 53001252
9	Transformer, H.V.
10	MAY R9900082
11	MAY 53001254
12	MAY 53001255
13	Motor, Fan
14	Thermostat
15	WP13091701 Whirlpool Microwave Rectifier
16	MAY R9900321
17	Bracket, Therm.
18	MAY 53001259
19	FILTER, CHOKE
20	MAY 53001260
21	MAY 53001272
22	MAY 53001274
23	Base, PCB
24	Bottom
25	Board, Power
26	Plate, Shield
