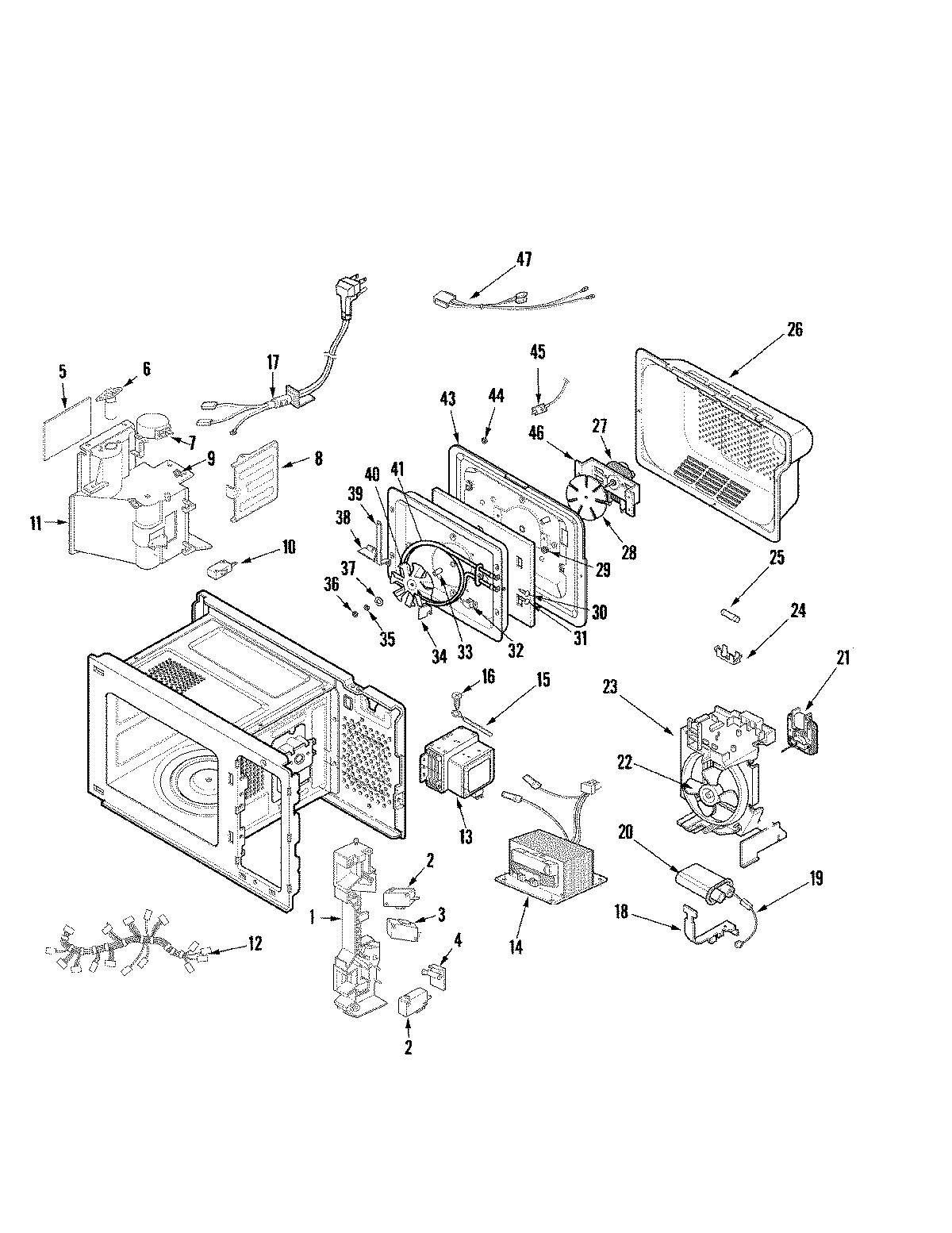

JMC9158AAQ 03 – INTERIOR CONTROLS

Products

Position	Product
1	MAY R0130612
3	MAY R9800417
4	MAY R9800416
5	MAY R0130682
6	WP8183592 Whirlpool Microwave Lamp Bulb Assembly
7	MAY 53001140
8	MAY R0130683
9	Thermostat
10	MAY 53001141
10	4392027 Whirlpool Microwave Primary Switch
11	MAY R0130685
12	MAY R0131022
13	MAY R9900377
14	MAY R9900405
15	MAY R0131047
17	MAY R0131017
18	MAY R9900337
19	MAY R9900303
19	MAY R0131029
20	MAY 53001065
21	MAY R0131020
21	MAY R9800411
22	MAY R9800422
23	MAY R0130684
24	MAY R0131021
24	MAY R0654183
25	WP8183507 Whirlpool Microwave Fuse
26	MAY R0130669
26	W11380570 Whirlpool Microwave Screw
27	MAY R0131019
28	MAY R0654083
29	MAY R0654026
30	MAY R0131030
31	MAY R0654025
32	MAY R0130673
33	MAY R0654123
34	MAY R0130672
35	MAY R0654045
36	MAY R0654027
37	MAY R0654044
38	MAY R0130670
39	MAY R0130671
40	MAY R0130686
41	MAY R0130676
42	MAY R0130680
43	MAY R0130681
44	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
45	MAY R0130687
46	MAY R0654086
47	MAY R0131023
