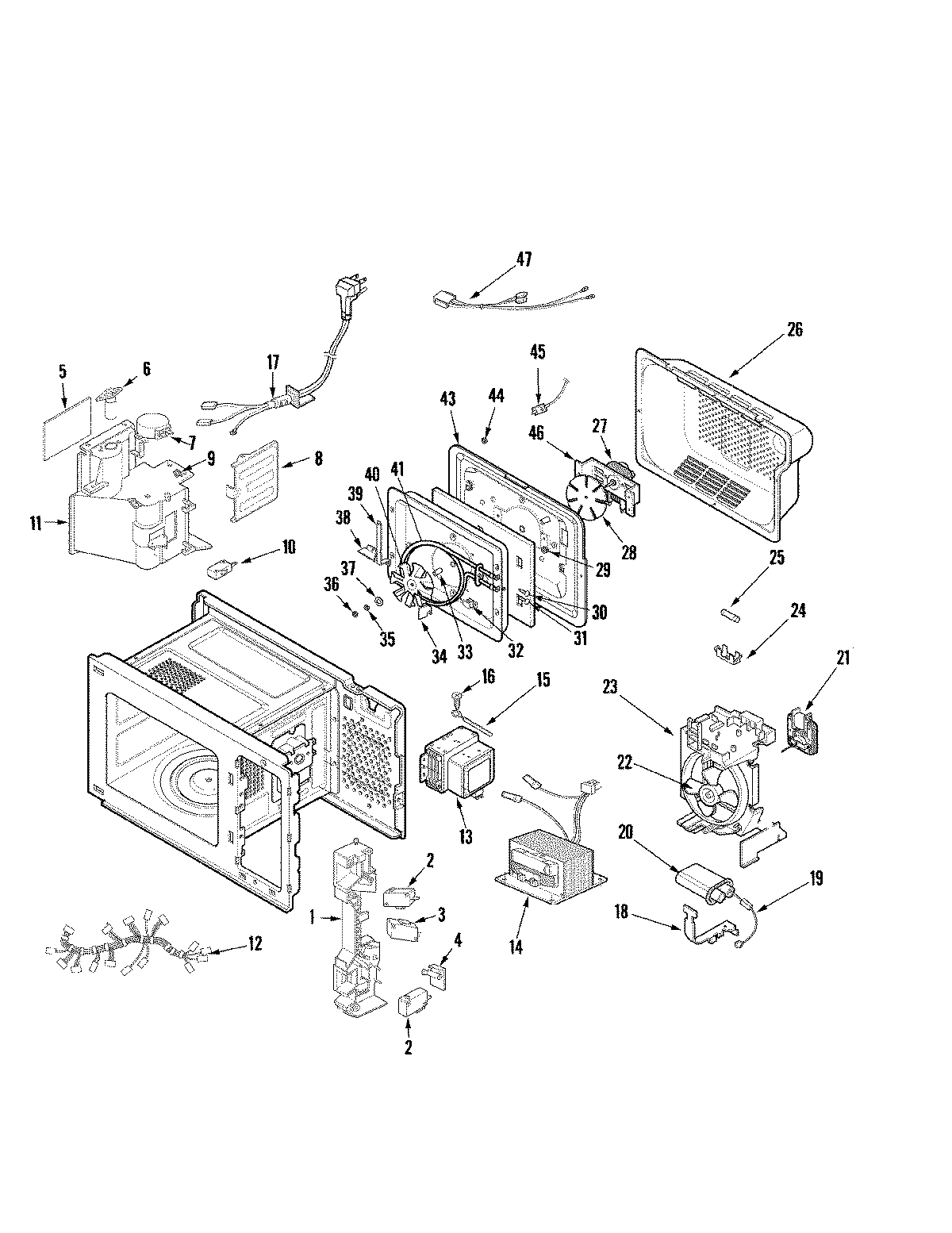

JMC9158AAS 03 – INTERIOR CONTROLS
Written by
in
JMC9158AAS 03 – INTERIOR CONTROLS
Products
Position
Product
1
MAY R0130612
3
MAY R9800417
4
MAY R9800416
5
MAY R0130682
6
WP8183592 Whirlpool Microwave Lamp Bulb Assembly
7
MAY 53001140
8
MAY R0130683
9
Thermostat
10
MAY 53001141
10
4392027 Whirlpool Microwave Primary Switch
11
MAY R0130685
12
MAY R0131022
13
MAY R9900377
14
MAY R9900405
15
MAY R0131047
17
MAY R0131017
18
MAY R9900337
19
MAY R9900303
19
MAY R0131029
20
MAY 53001065
21
MAY R0131020
21
MAY R9800411
22
MAY R9800422
23
MAY R0130684
24
MAY R0131021
24
MAY R0654183
25
WP8183507 Whirlpool Microwave Fuse
26
MAY R0130669
26
W11380570 Whirlpool Microwave Screw
27
MAY R0131019
28
MAY R0654083
29
MAY R0654026
30
MAY R0131030
31
MAY R0654025
32
MAY R0130673
33
MAY R0654123
34
MAY R0130672
35
MAY R0654045
36
MAY R0654027
37
MAY R0654044
38
MAY R0130670
39
MAY R0130671
40
MAY R0130686
41
MAY R0130676
42
MAY R0130680
43
MAY R0130681
44
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
45
MAY R0130687
46
MAY R0654086
47
MAY R0131023
←
