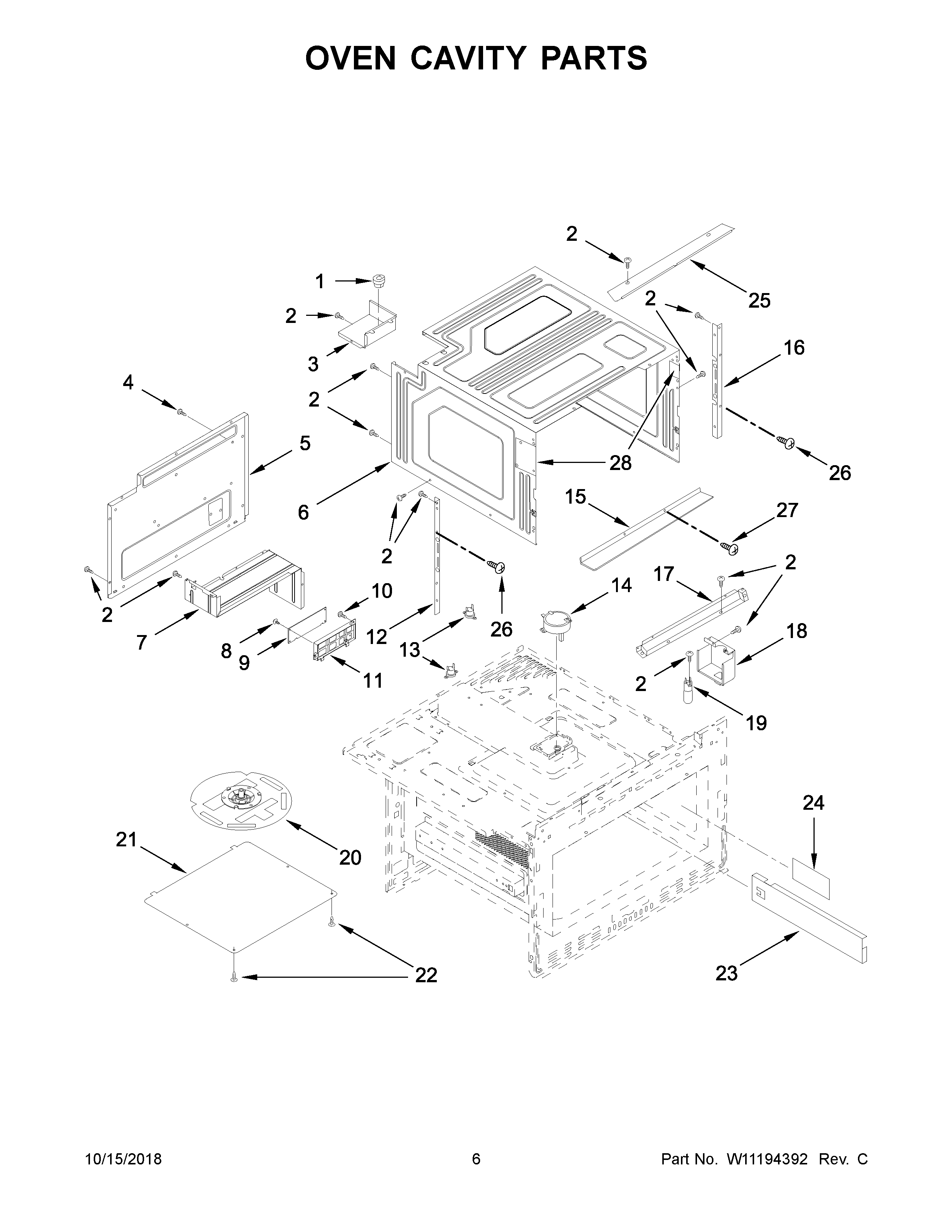

JMDFS24GS0 04 – OVEN CAVITY PARTS

Products

PositionProduct
1BUSHING, POWER CORD
2SCREW
3BRACKET, POWER CORD
4SCREW
5COVER, REAR
6CASE, OUTER
7PANEL, PARTITION
8SCREW
9RELAY, POWER
10SCREW
11HOLDER, RELAY
12BRACKET, LEFT
13CUT-OUT, THERMAL
14MOTOR, STIRRER
15DEFLECTOR
16BRACKET, RIGHT
17BRACKET, CONTROL PANEL
18COVER, LAMP
19ASSEMBLY, LAMP
20BLADE, STIRRER
21COVER, STIRRER
22CLIP, COVER
23PANEL, BOTTOM PARTITION
24GLASS, LAMP
25COVER, FACEPLATE
26SCREW, MOUNTING (WOOD)
27SCREW, DEFLECTOR
28COVER, LATCH
