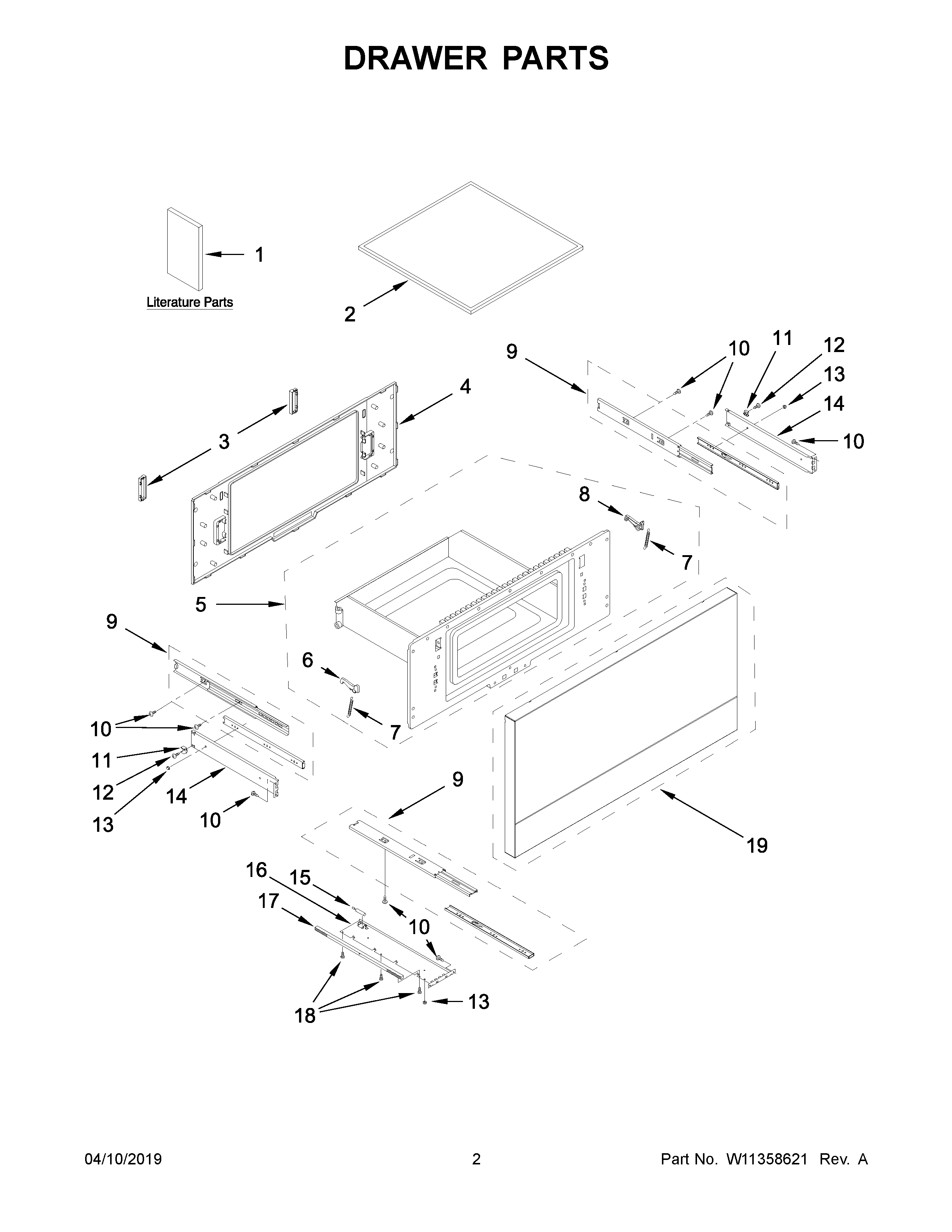

JMDFS24HM01 02 – DRAWER PARTS

JMDFS24HM01 02 – DRAWER PARTS

Written by

in

JMDFS24HM01 02 – DRAWER PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W11362536
NICORD, POWER
NIFUSE (20A)
1MAY W11257722
2TRAY, OVEN
3COVER, SUPPORT
4COVER, CHOKE
5ASSEMBLY, DRAWER
6HOOK, LATCH (LEFT)
7SPRING, LATCH
8HOOK, LATCH (RIGHT)
9SLIDE, DRAWER
10SCREW
11STOPPER, DOOR
12SCREW
13NUT
14SUPPORT, SIDE
15PISTON, DOOR STOP
16SUPPORT, BOTTOM
17GEAR, DRAWER
18SCREW
19MAY W11331003
