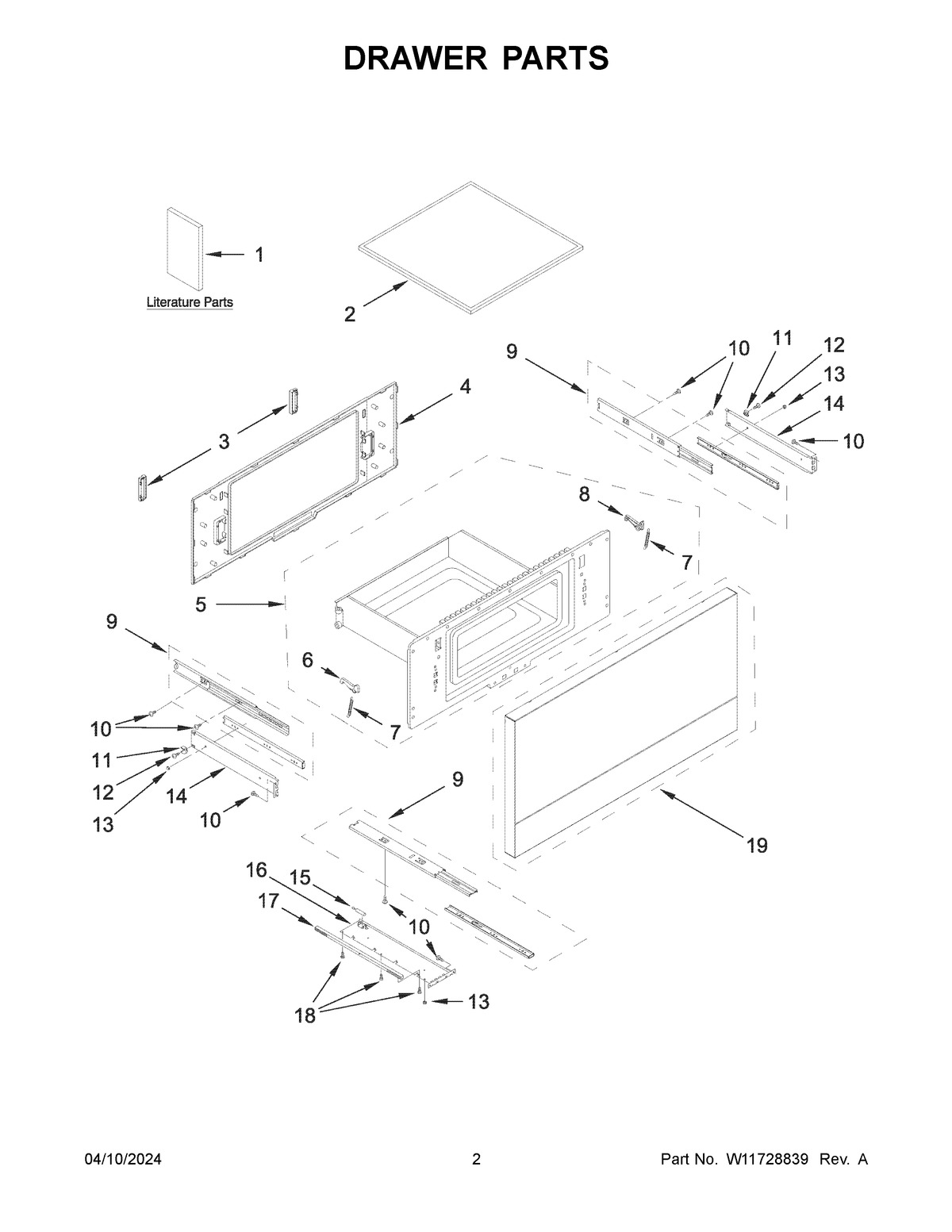

JMDFS24HM02 02 – DRAWER PARTS

JMDFS24HM02 02 – DRAWER PARTS

Written by

in

JMDFS24HM02 02 – DRAWER PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11362536 Whirlpool Wire Harness
NIW11199540 Whirlpool Microwave Power Cord
NIW11677637 Whirlpool Thermal Fuse
1AUSE AND CARE GUIDE
1BCOOKING GUIDE (ENGLISH)
1INSTALLATION INSTRUCTIONS
3W11201390 Whirlpool Cover
4W11201870 Whirlpool Choke Cover
5W11690866 Whirlpool Microwave Door
6HOOK, LEFT LATCH
7SPRING, LATCH
8HOOK, RIGHT LATCH
9W11672511 Whirlpool Drawer Glide
10SCREW
11STOPPER, DOOR
12SCREW
13NUT
14SUPPORT, SIDE
15W11685617 Whirlpool Piston
16SUPPORT, BOTTOM
17GEAR, DRAWER
18SCREW
19PANEL, DOOR
