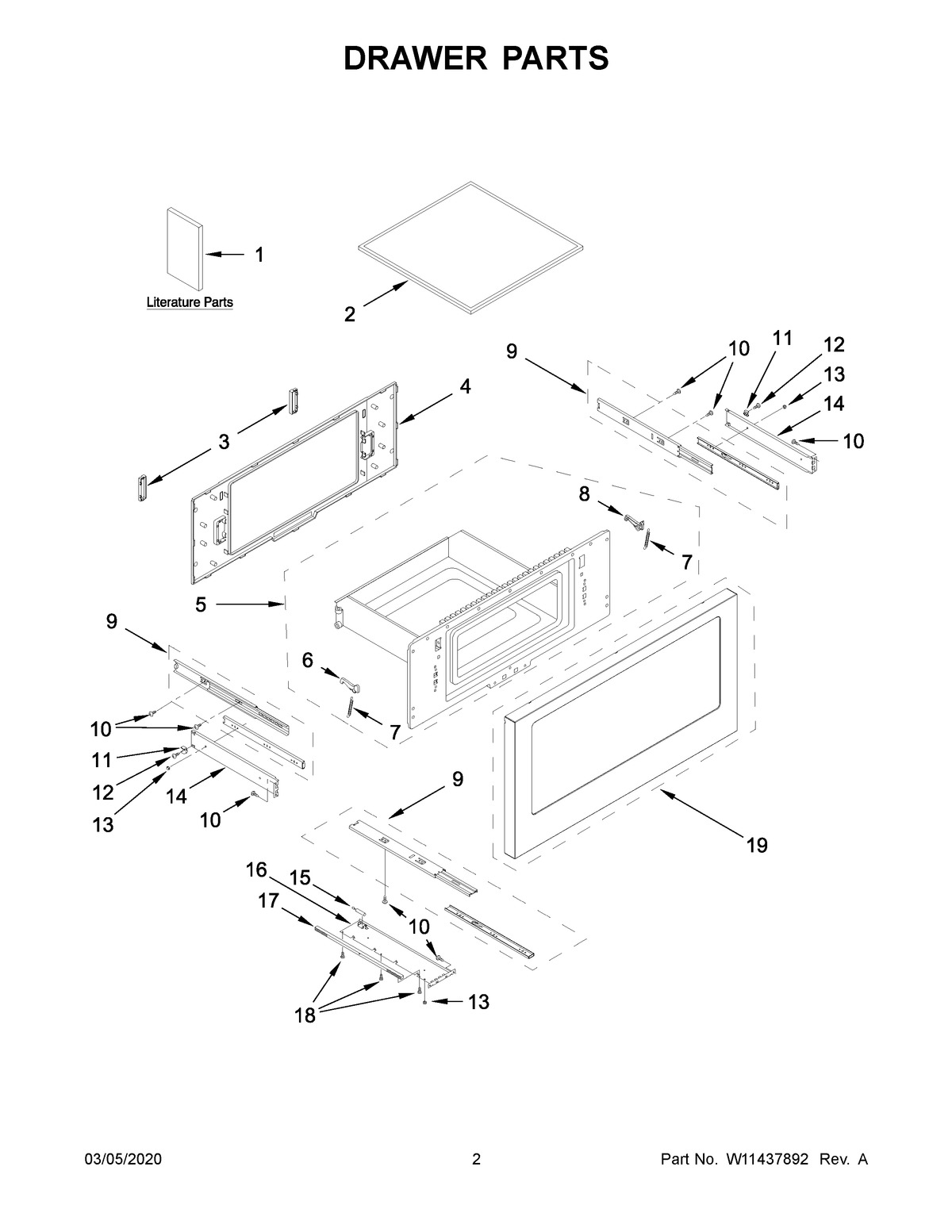

JMDFS24JL00 02 – DRAWER PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIFUSE (20A)
NIMAY W11362536
NICORD, POWER
1BMAY W11109162
1MAY W11257634
1AMAY W11257722
1CMAY W11113416
2TRAY, OVEN
3COVER, SUPPORT
4COVER, CHOKE
5ASSEMBLY, DRAWER
6HOOK, LATCH (LEFT)
7SPRING, LATCH
8HOOK, LATCH (RIGHT)
9SLIDE, DRAWER
10SCREW
11STOPPER, DOOR
12SCREW
13NUT
14SUPPORT, SIDE
15PISTON, DOOR STOP
16SUPPORT, BOTTOM
17MAY W11444631
18SCREW
19MAY W11444656
