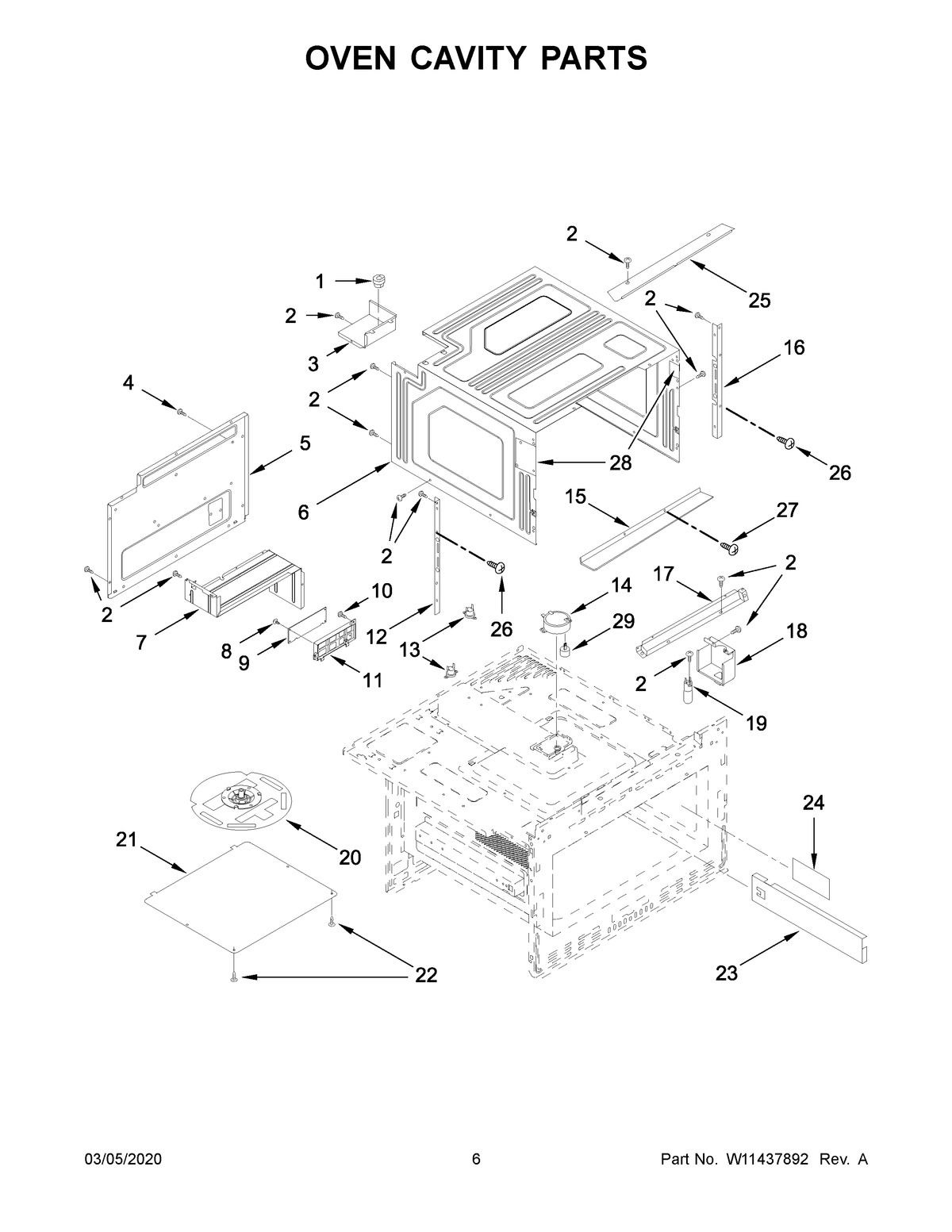

JMDFS24JL00 04 – OVEN CAVITY PARTS

Products

PositionProduct
1BUSHING, POWER CORD
2SCREW
3BRACKET, POWER CORD
4SCREW
5MAY W11444627
6CASE, OUTER
7MAY W11444661
8SCREW
9MAY W11444620
10SCREW
11HOLDER, RELAY
12BRACKET, LEFT
13CUT-OUT, THERMAL
14MAY W11362534
15DEFLECTOR
16BRACKET, RIGHT
17BRACKET, CONTROL PANEL
18COVER, LAMP
19ASSEMBLY, LAMP
20MAY W11362539
21COVER, STIRRER
22MAY W11362541
23MAY W11444648
24GLASS, LAMP
25COVER, FACEPLATE
26SCREW, MOUNTING (WOOD)
27SCREW, DEFLECTOR
28COVER, LATCH
29MAY W11362542
