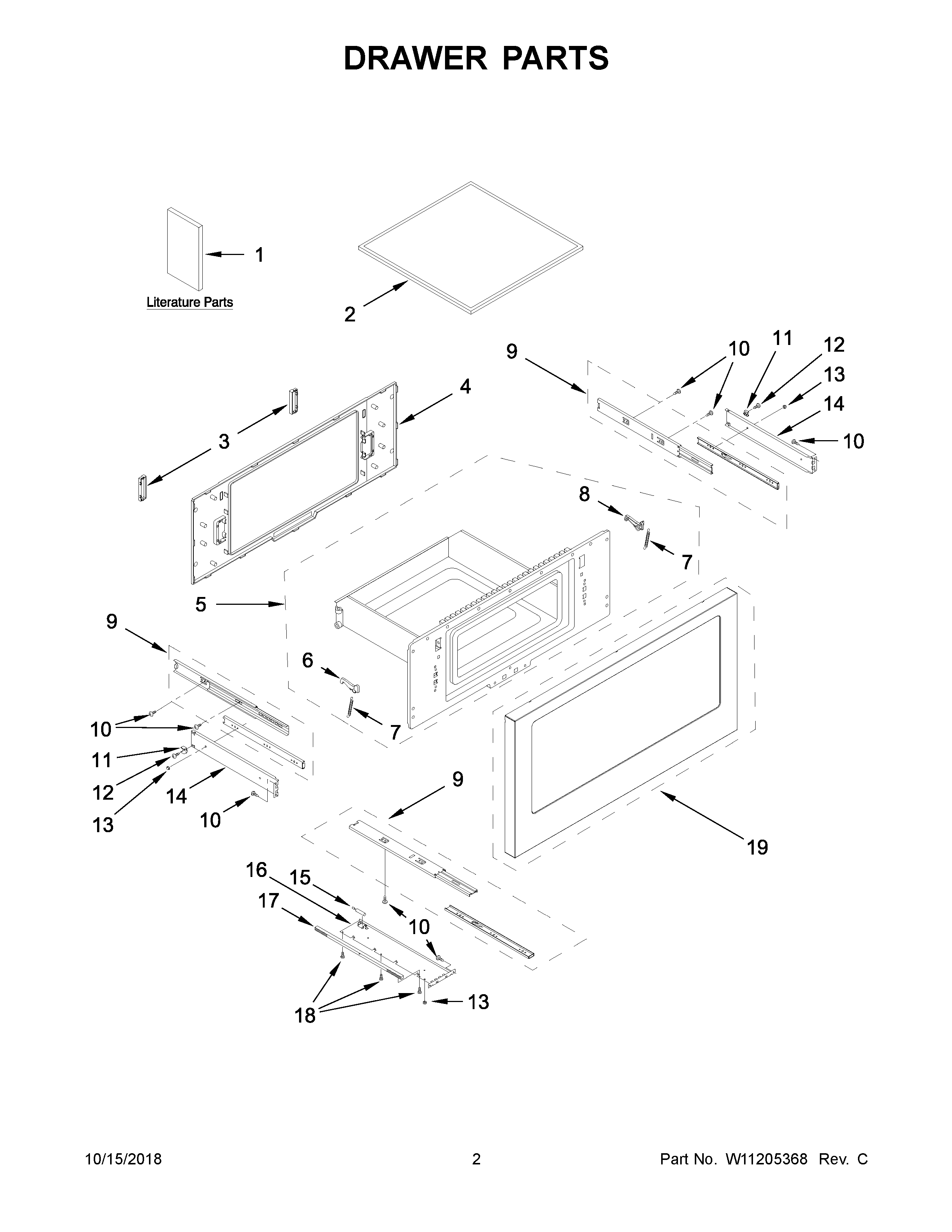

JMDFS30HL0 02 – DRAWER PARTSadmin2025-04-26T09:39:45+00:00JMDFS30HL0 02 – DRAWER PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | CORD, POWER |
| NI | HARNESS, MAIN |
| 1 | INSTALLATION INSTRUCTIONS |
| 1A | USE AND CARE GUIDE |
| 2 | TRAY, OVEN |
| 3 | COVER, SUPPORT |
| 4 | COVER, CHOKE |
| 5 | ASSEMBLY, DRAWER |
| 6 | HOOK, LATCH (LEFT) |
| 7 | SPRING, LATCH |
| 8 | HOOK, LATCH (RIGHT) |
| 9 | SLIDE, DRAWER |
| 10 | SCREW |
| 11 | STOPPER, DOOR |
| 12 | SCREW |
| 13 | NUT |
| 14 | SUPPORT, SIDE |
| 15 | PISTON, DOOR STOP |
| 16 | SUPPORT, BOTTOM |
| 17 | GEAR, DRAWER |
| 18 | SCREW |
| 19 | PANEL, DOOR |
