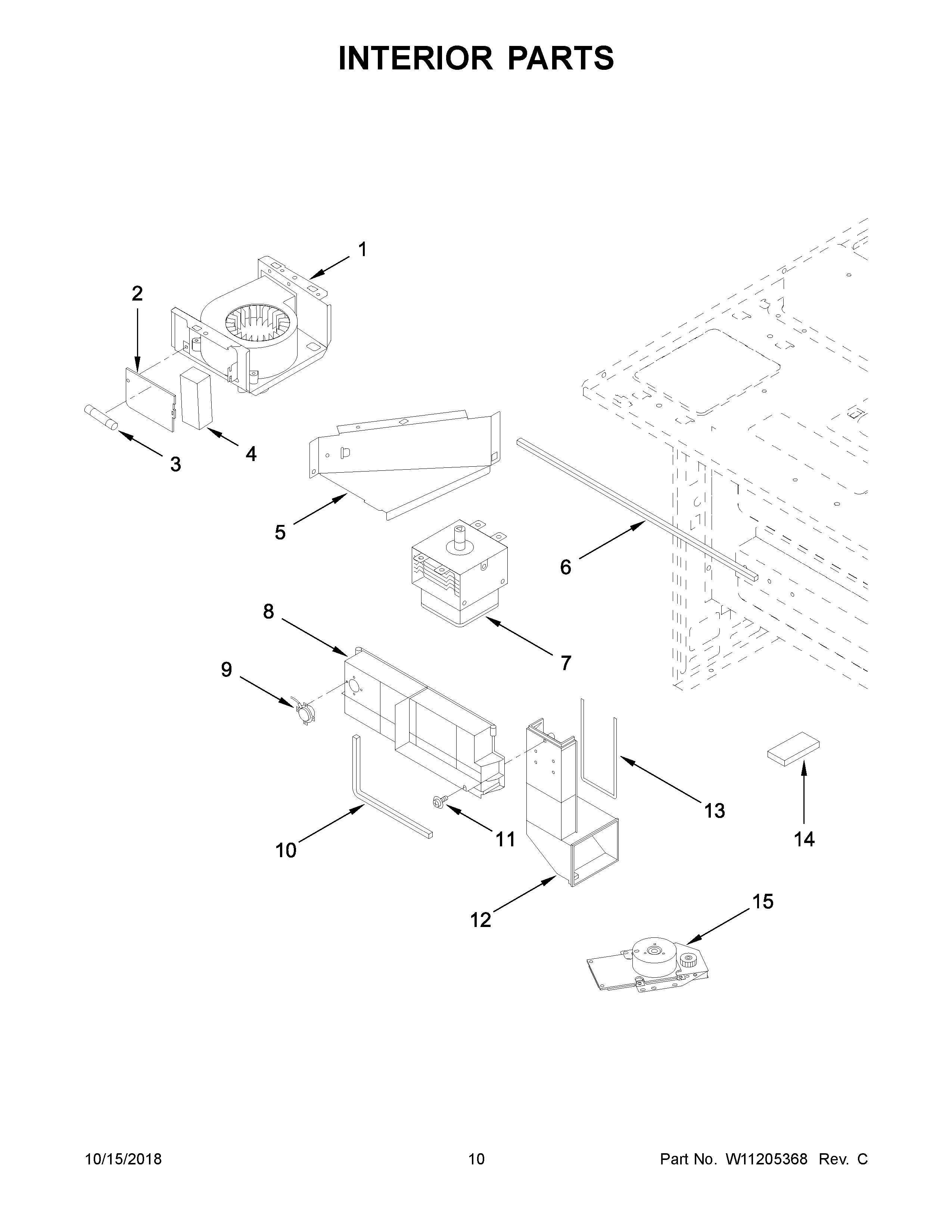

JMDFS30HL0 06 – INTERIOR PARTS

JMDFS30HL0 06 – INTERIOR PARTS

Written by

in

JMDFS30HL0 06 – INTERIOR PARTS

Products

PositionProduct
1MOTOR, FAN
2FILTER, NOISE
3FUSE (20A)
4CUSHION, FAN MOTOR SUPPORT
5DUCT, MAGNETRON
6CUSHION, INLET
7MAGNETRON
8DUCT, SENSOR
9ASSEMBLY, SENSOR
10CUSHION, DUCT
11SCREW
12DUCT, EXHAUST
13CUSHION, EXHAUST DUCT
14CUSHION, AIR FLOW
15ASSEMBLY, DRAWER GEAR
