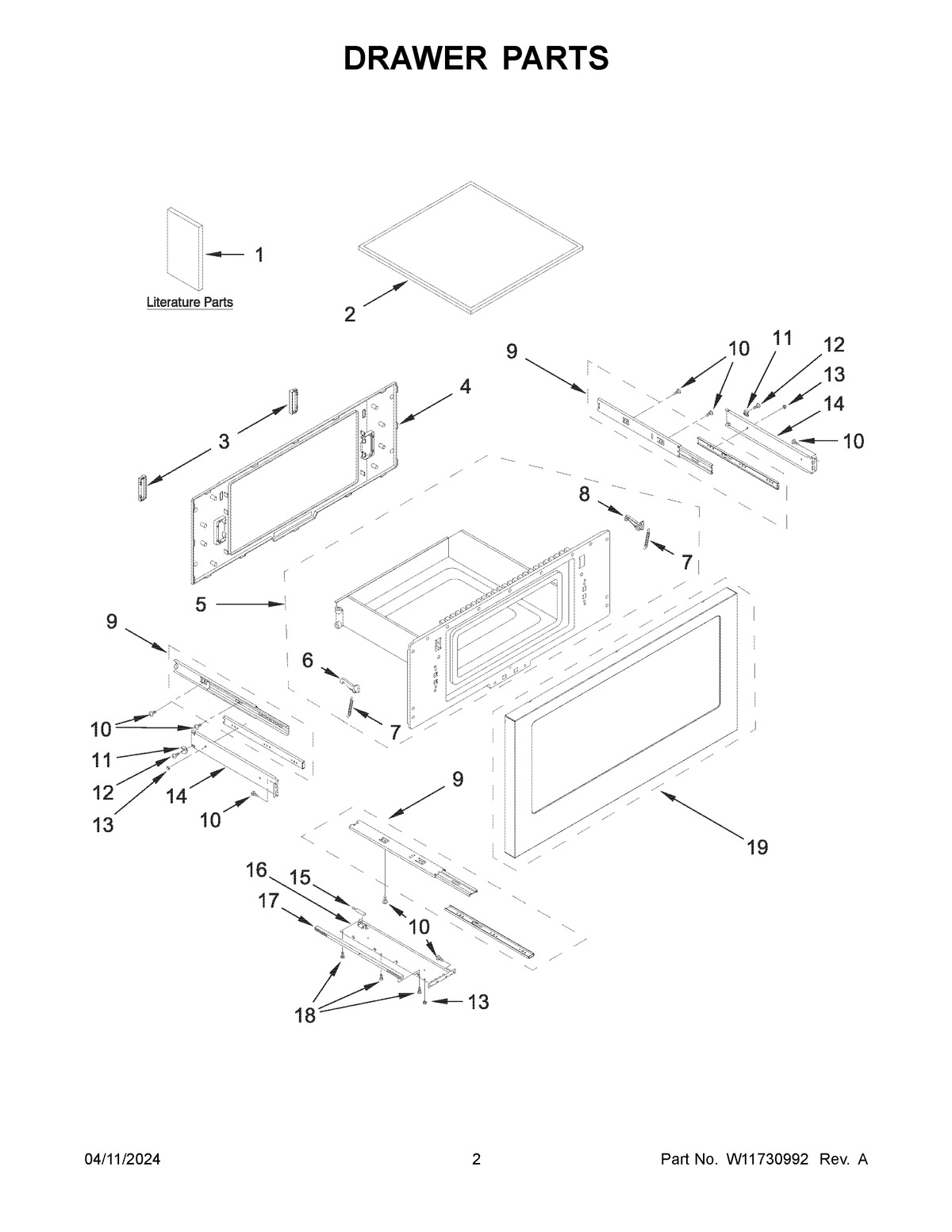

JMDFS30HL02 02 – DRAWER PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11199540 Whirlpool Microwave Power Cord
NI	W11362536 Whirlpool Wire Harness
1B	COOKING GUIDE (ENGLISH)
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
3	W11201390 Whirlpool Cover
4	COVER, CHOKE
5	W11690866 Whirlpool Microwave Door
6	HOOK, LEFT LATCH
7	SPRING, LATCH
8	HOOK, RIGHT LATCH
9	W11672511 Whirlpool Drawer Glide
10	SCREW
11	STOPPER, DOOR
12	SCREW
13	NUT
14	SUPPORT, SIDE
15	W11685617 Whirlpool Piston
16	SUPPORT, BOTTOM
17	GEAR, DRAWER
18	SCREW
19	W11201869 Whirlpool Microwave Outer Door
