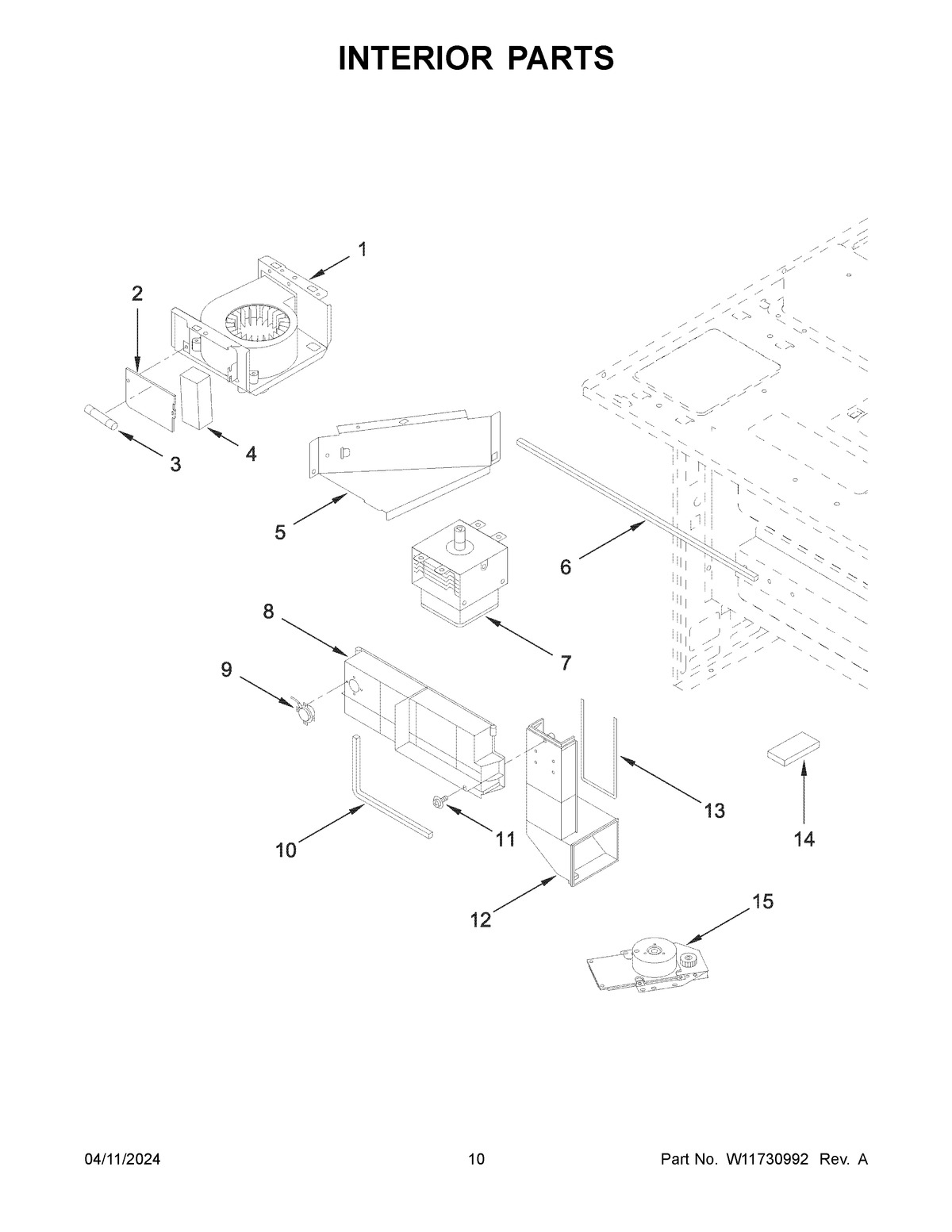

JMDFS30HL02 06 – INTERIOR PARTS

JMDFS30HL02 06 – INTERIOR PARTS

Written by

in

JMDFS30HL02 06 – INTERIOR PARTS

Products

PositionProduct
1W11362533 Whirlpool Fan Motor
2W11199545 Whirlpool Microwave Filter
3W11677637 Whirlpool Thermal Fuse
4CUSHION, FAN MOTOR SUPPORT
5DUCT, MAGNETRON
6CUSHION, INLET
7W11590863 Whirlpool Microwave Magnetron
8DUCT, SENSOR
9W10278023 Whirlpool Microwave Sensor
10CUSHION, DUCT
11SCREW
12DUCT, EXHAUST
13CUSHION, EXHAUST DUCT
14CUSHION, AIR FLOW
15W11685618 Whirlpool Gear Assembly
