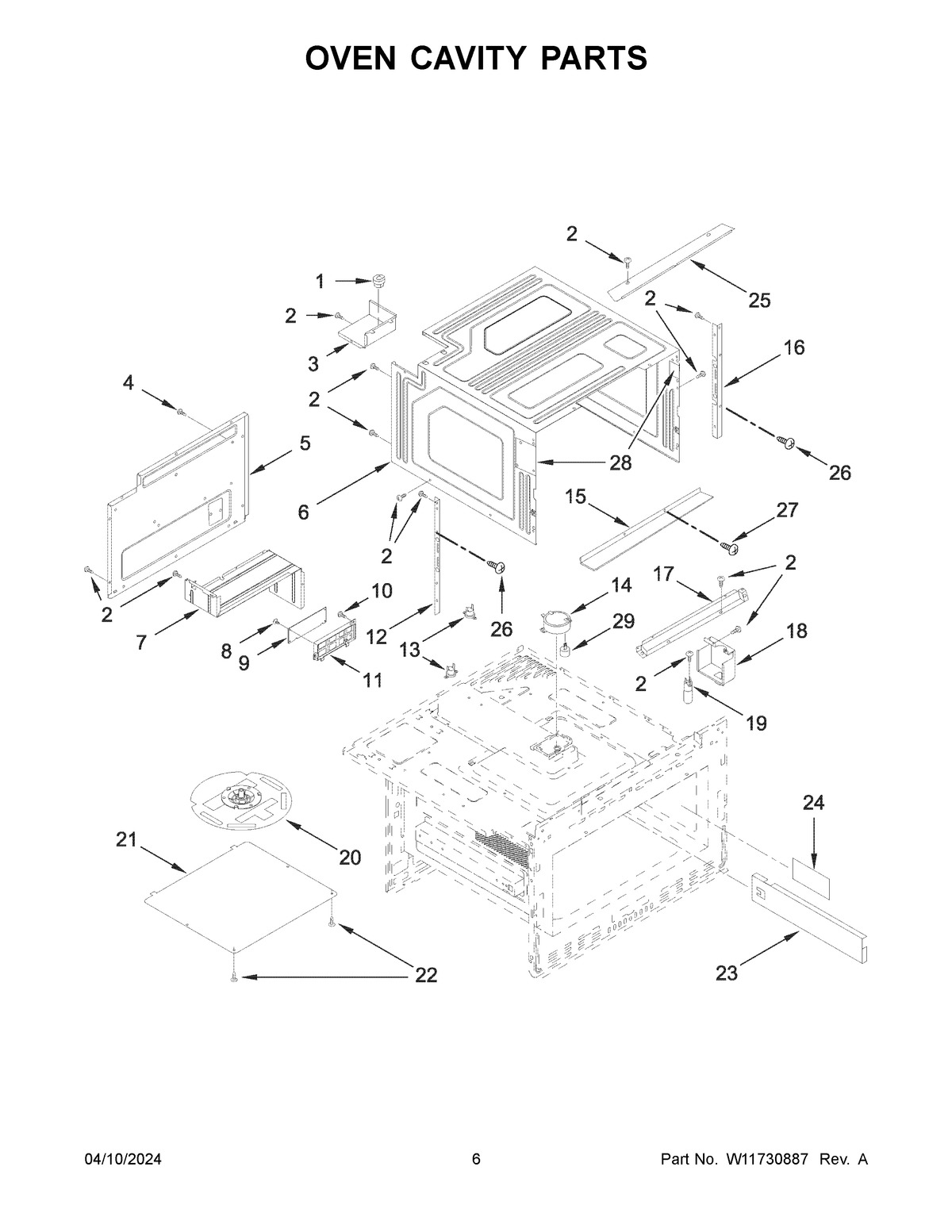

JMDFS30HM02 04 – OVEN CAVITY PARTS

JMDFS30HM02 04 – OVEN CAVITY PARTS

Written by

in

JMDFS30HM02 04 – OVEN CAVITY PARTS

Products

PositionProduct
1BUSHING, POWER CORD
2SCREW
3BRACKET, POWER CORD
4SCREW
5W11201389 Whirlpool Microwave Rear Cover
6W11199812 Whirlpool Microwave Wrapper-Cabinet
7PANEL, PARTITION
8SCREW
9W11445128 Whirlpool Microwave Power Relay
10SCREW
11HOLDER, RELAY
12BRACKET, LEFT
13W11199547 Whirlpool Microwave Thermostat Fix
14W11362534 Whirlpool Microwave Stir Motor
15DEFLECTOR
16BRACKET, RIGHT
17BRACKET, CONTROL PANEL
18COVER, LAMP
19W10278184 Whirlpool Microwave Lamp
20W11362539 Whirlpool Stir Blade
21W11201789 Whirlpool Microwave Stir Cover
22W11362541 Whirlpool Clip
23PANEL, BOTTOM PARTITION
24W11201855 Whirlpool Light Cover
25COVER, FACEPLATE
26W11254786 Whirlpool Screw
28COVER, LATCH
29SHAFT, STIRRER MOTOR
