JMHF730RBL00 05 – AIR FLOW PARTS

JMHF730RBL00 05 – AIR FLOW PARTS

Written by

in

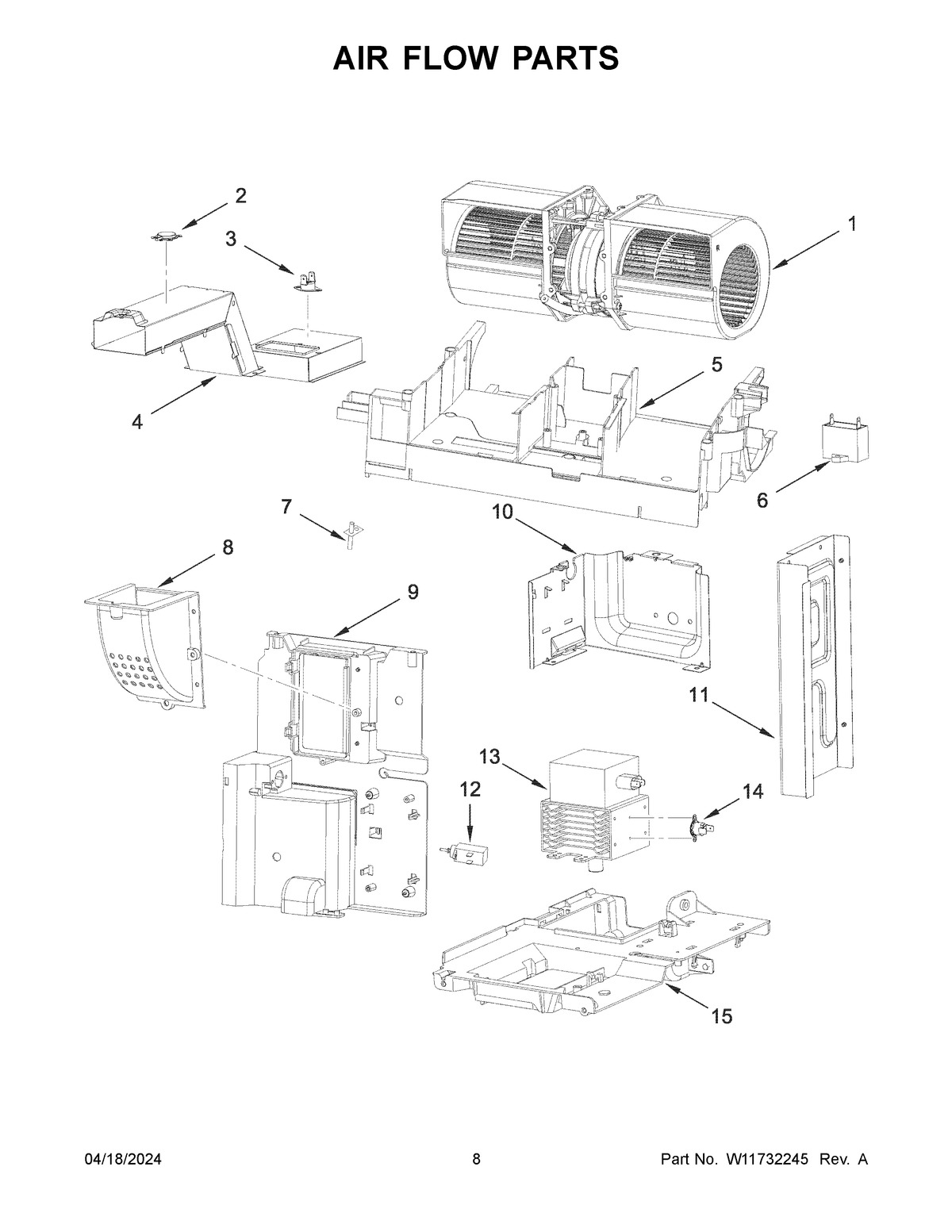

JMHF730RBL00 05 – AIR FLOW PARTS

Products

PositionProduct
1W11662638 Whirlpool Fan Motor
2W10557536 Whirlpool Microwave Sensor
3W11707360 Whirlpool Thermostat Fix
4CHANNEL, CAVITY OUTLET
5BASEPLATE,AIR GUIDE
6W11405831 Whirlpool Microwave Capacitor
7W10557537 Whirlpool Microwave Thermistor
8AIR CHANNEL, TRANSFORMER
9AIR CHANNEL, MAGNETRON
10CHANNEL, RIGHT HOOD
11W11662662 Whirlpool Air Guide
12W10458325 Whirlpool Microwave Actuator
13W11391712 Whirlpool Microwave Magnetron
14THRMST-FIX
15PLATE, MAGNETRON SUPPORT
