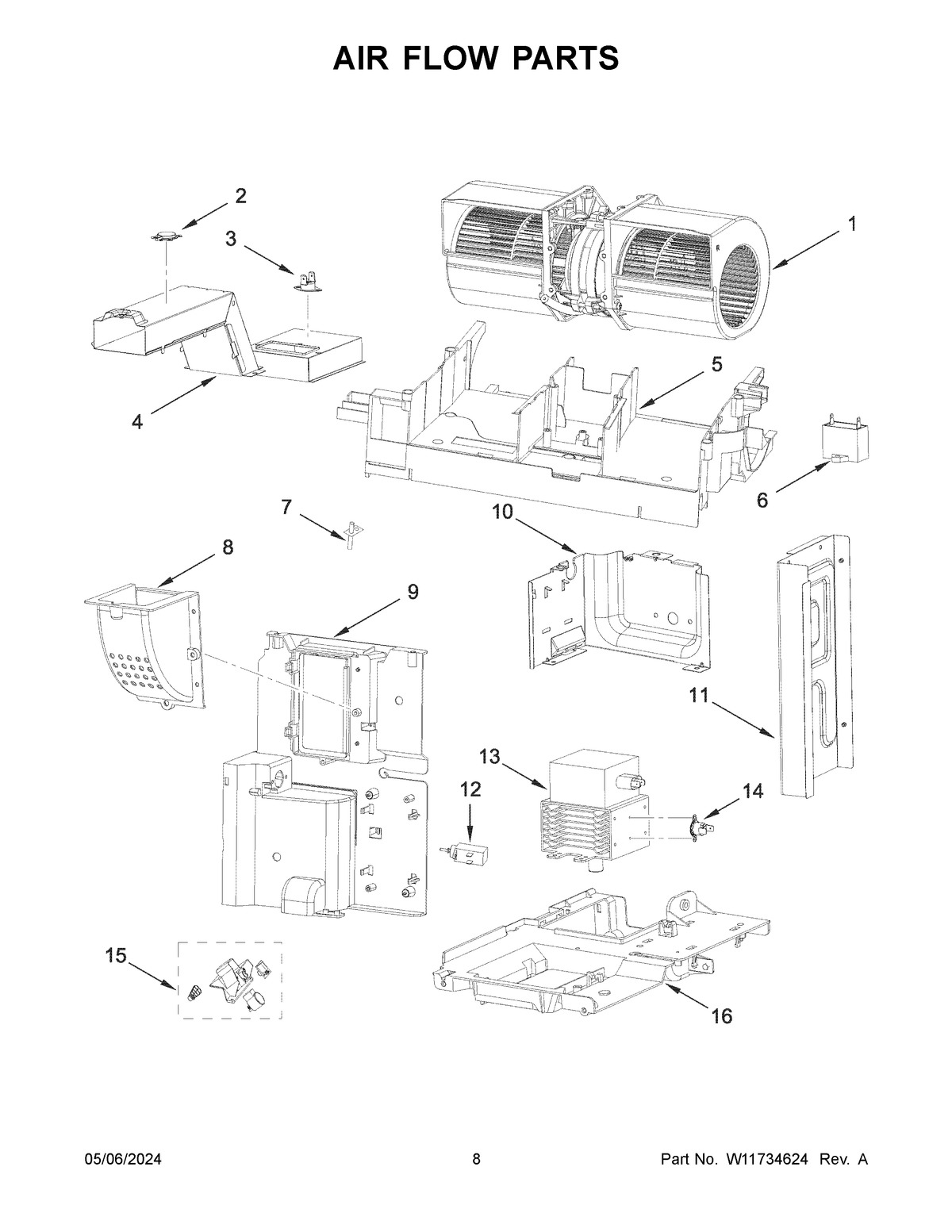

JMHF930RSS00 05 – AIR FLOW PARTS

Products

Position	Product
1	W11662638 Whirlpool Fan Motor
2	W10557536 Whirlpool Microwave Sensor
3	W11707360 Whirlpool Thermostat Fix
4	CHANNEL, CAVITY OUTLET
5	BASEPLATE,AIR GUIDE
6	W11405831 Whirlpool Microwave Capacitor
7	W10557537 Whirlpool Microwave Thermistor
8	AIR CHANNEL, TRANSFORMER
9	AIR CHANNEL, MAGNETRON
10	CHANNEL, RIGHT HOOD
11	W11662662 Whirlpool Air Guide
12	W10458325 Whirlpool Microwave Actuator
13	W11391712 Whirlpool Microwave Magnetron
14	THRMST-FIX
15	SENSOR
16	PLATE, MAGNETRON SUPPORT
