JMHF930RSS00 07 – CABINET AND INSTALLATION PARTS

JMHF930RSS00 07 – CABINET AND INSTALLATION PARTS

Written by

in

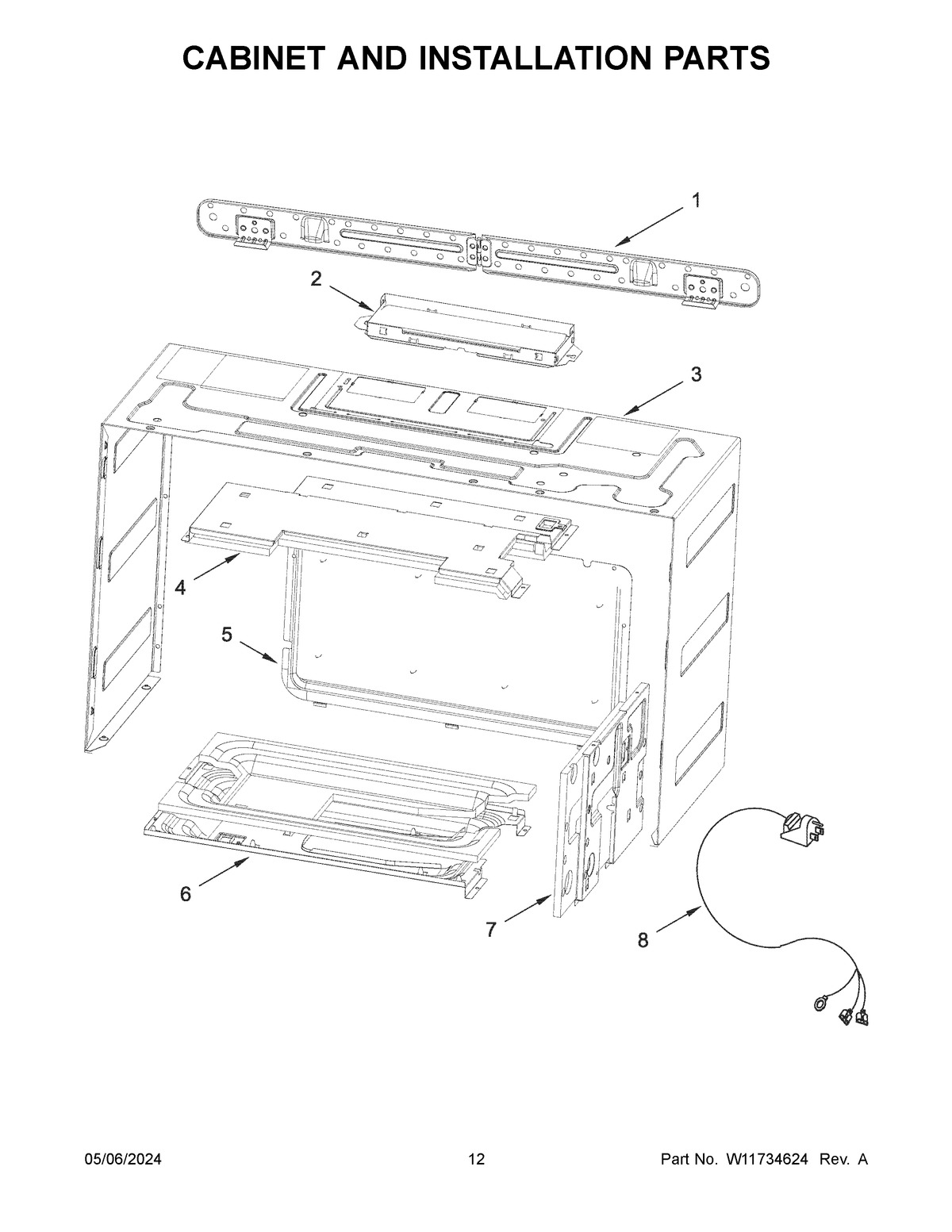

JMHF930RSS00 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, SIGNAL HARNESS, INFRARED SENSOR TO ACU
NIMISCELLANEOUS PARTS, HARNESS, VENT MOTOR TO ACU
NIMISCELLANEOUS PARTS, HARNESS, CAVITY LED TO ACU
NIMISCELLANEOUS PARTS, HARNESS, HOOD LED TO ACU
NIMISCELLANEOUS PARTS, SIGNAL HARNESS, HMI TO DOOR HINGE
NIMISCELLANEOUS PARTS, HARNESS, MIMAS TO ACU
NIMISCELLANEOUS PARTS, MOUNTING KIT, SILICONE SPACERS
NIMISCELLANEOUS PARTS, HARNESS, MEAT PROBE SOCKET
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, DOOR HINGE TO ACU
NIPLATE-MTNG
NIW11630290 Whirlpool Mounting Hardware
NIMISCELLANEOUS PARTS, SIGNAL HARNESS, DOOR & ODM TO ACU
1W11593197 Whirlpool Mounting Plate
2W10843943 Whirlpool Microwave Vent Damper
3W11593183 Whirlpool Cabinet Wrapper
4INSULATION, TOP PLATE
5INSULATION, BACK PLATE
6INSULATION, BOTTOM PLATE
7INSULATION, RIGHT PLATE
8CORD, POWER
