Products

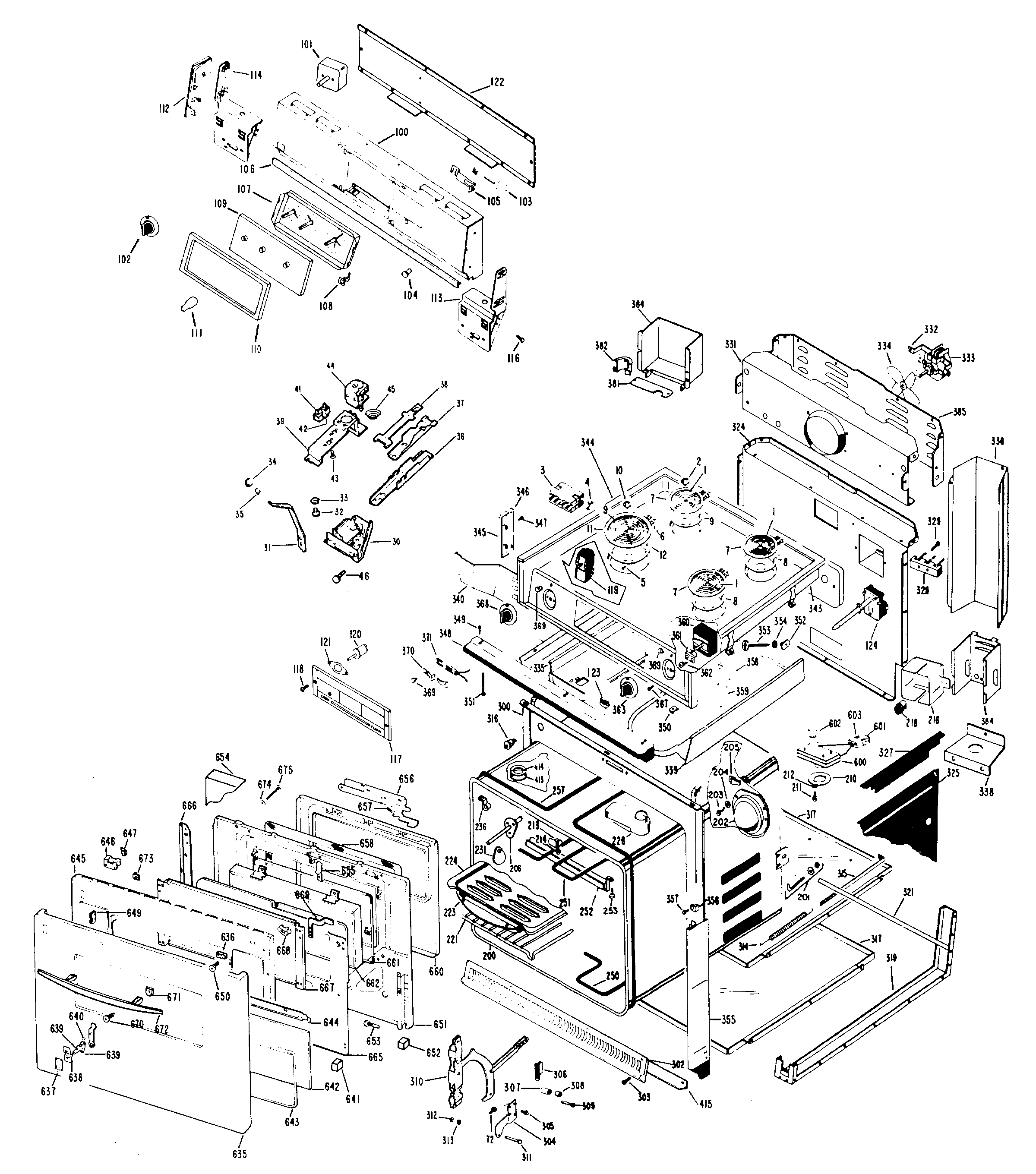

Position	Product
1	WB30X342 GE Oven Cooktop 6" Burner Unit 3w No Trim Ring
2	GEN WB32X0052
3	TERM BLOCK SINGLE COIL
4	CLIP INSULATOR
5	GEN WB01X0549
6	WB1X500D GE Oven Screw Package
7	WB31X5013 GE Oven 6" Chrome Trim Ring
8	WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
9	WB30X348 GE Oven 8" Surface Unit Element with Screw
10	GEN WB32X0051
11	WB31X5014 GE 8-Inch Chrome Trim Ring
12	CLIP LEAD
12	WB32X10013 GE Oven 8" Chrome Drip Pan
30	GEN WZ04X0362
30	LATCH ASSEMBLY
31	SCREW & WASHER ASM
31	GEN WB15X0097
32	GEN WB02X6212
33	RETAINER RING
34	GEN WB03X0322
35	RETAINER KNOB
36	GEN WB02X3157
37	GEN WB02X3158
38	GEN WB02X3159
39	PLATE MOUNTING UPPER OVEN
40	WB1X536 GE Oven Screw
41	GEN WB24X0183
42	GEN WB02X3161
43	GEN WB01X0561
44	GEN WB24X0197
45	GEN WB09X0148
46	WZ2X464D GE Screw
100	GEN WB61X0213
101	WB21X36771 GE Surface Element Switch
101	SCR 8-32 M PHR 3/16 S
102	KNOB – SURFACE UNIT SWIT
103	NEON LAMP 118V
103	GEN WB02X3468
104	WB25X65 GE Oven Light Indicator
105	CLIP MTG LAMP
106	GEN WB07X1138
106	SPEEDNUT MTG TRIM
107	GEN WB19X0147
108	GEN WB02X3325
109	GEN WB36X5321
110	GEN WB07X5607
111	GEN WB03X0459
112	GEN WB07X1131
112	GEN WZ05X0120
112	GEN WB07X1130
112	GEN WZ05X0187
113	GEN WB02X3326
114	GEN WB01X0408
114	GEN WZ04X0238
114	GEN WB02X3327
115	GEN WB07X0626
117	GEN WB07X1072
118	GEN WZ04X0237
119	GEN WB02X3178
119	SCR 8/32 TF FLR 5/16 S
119	GEN WB01X0306
119	GEN WB02X5545
119	GEN WB24X0176
119	GEN WB02X1132
120	SWITCH, LATCH RELEASE
121	WZ5X158D GE Screw Package of 12
121	GEN WB02X2051
121	BARRIER SWITCH
122	GEN WB59X0171
123	GEN WB24X0199
123	WZ4X345D GE Screw Package 12 C92
124	GEN WB24X0175
200	PLUG BUTTON CAP TUBE
200	GEN WB02X3471
200	GEN WB02X2115
200	GEN WB53X0252
201	HOOK PACKAGE
202	WB36X192 GE Oven Light Cover
203	GEN WZ04X0292
205	SPEEDNUT
206	GEN WB02X3164
206	GEN WB02X3163
210	GASKET ELIM. BTM.
212	WB1X119D GE Oven Range Washer
213	GEN WB02X3393
216	GEN WB02X3466
218	GEN WB08X0191
221	GEN WB48X0082
224	WB48X10056 GE Broil Pan Set, Large Porcelain
225	GEN WB56X0650
226	GEN WB38X0066
231	GEN WB02X3230
233	GEN WB24X0134
234	COVER VENT
235	VENT COVER GASKET
236	GEN WB02
