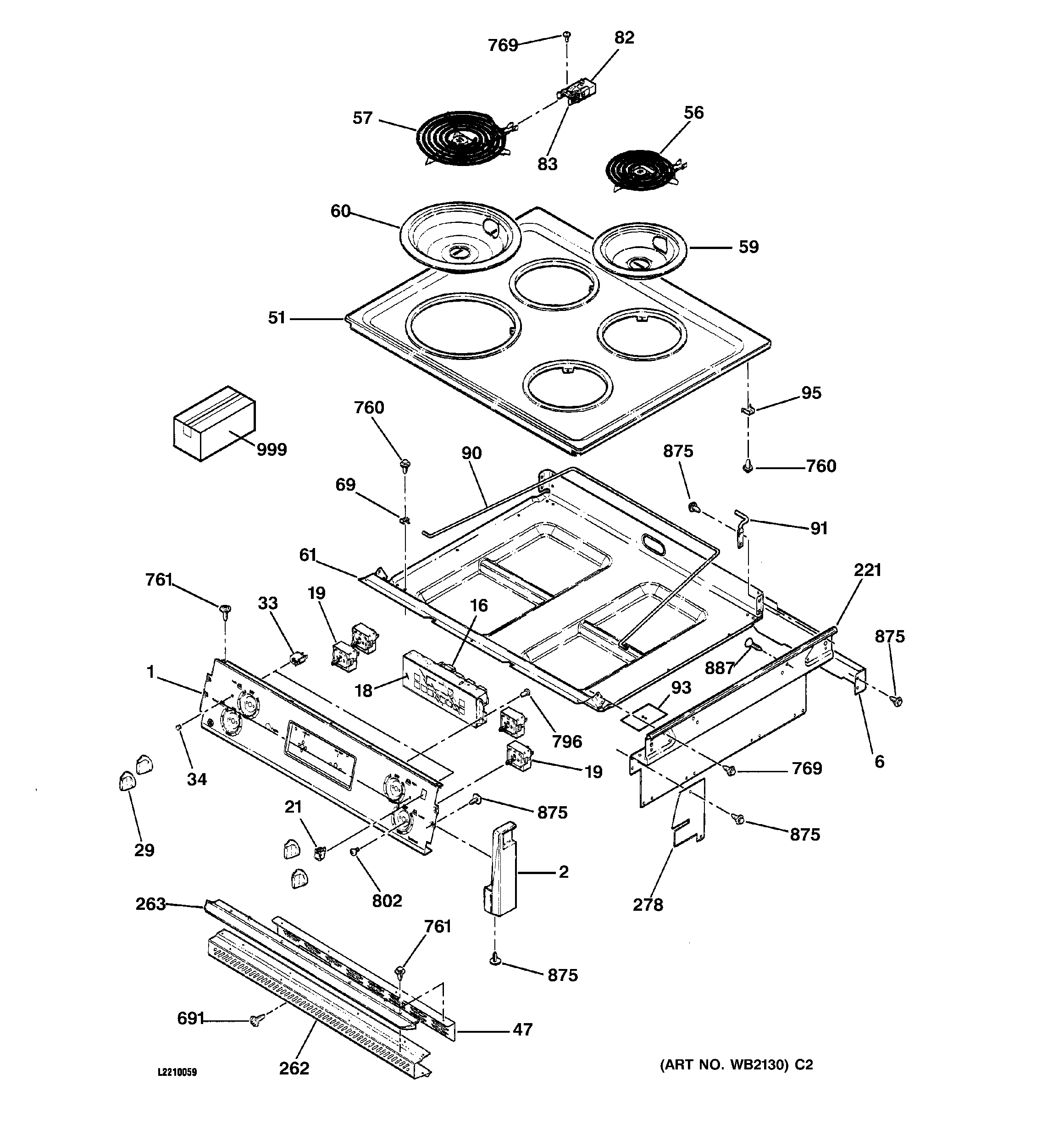

JMP28BA2WH CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB36K5565
2	WB07T10532 GE Oven End Cap Left (Black)
2	WB07T10531 GE Right End Cap (Black)
6	WB37K5022 GE Oven Back Panel
16	GEN WB27K5140
18	GEN WB27K5145
19	WB24X29365 GE Oven Infinite Control Switch
21	WB24K5035 GE Oven Rocker Switch
29	WB3K5109 GE Oven Black Infinite Knob
33	WB25T10040 GE Oven Light Indicator
34	LENS
47	WB38K5029 GE Oven Vent Barrier
51	WB62K5077 GE Oven Electric MTP White
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61	WB64K5051 GE Oven Bottom Burner Box
69	WB2M87 GE Oven Support Rod Clamp
82	WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83	GEN WB01K5128
90	GEN WB02K5226
91	WB14K5008 GE Oven Left Hinge Maintop
91	WB14K5009 GE Oven Right Maintop Hinge
93	WB34K5137 GE Oven Barrier Body Side External
95	WB1K5118 GE Oven Hinge Clip
102	WB35K5097 GE Oven Door Insulation SD
221	EXTENSION UPR SD
262	WB7K5101 GE Oven Vent Trim
262	WB07T10079 GE Oven Side Trim (White)
263	WB7K5378 GE Oven Brow Trim
278	GEN WB34K5135
691	WB1K5162 GE Oven Black Screw
760	WB1X536 GE Oven Screw
761	WB1K5029 GE Oven Screw
769	WB1X500D GE Oven Screw Package
796	WB1K5116 GE Oven Screw
802	GEN WB01K5123
875	WH2X930 GE Screw
887	WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
949	CLIP
955	GEN WB02M0009
999	GEN 31-13401
999	DR SW WIRE HARNESS
999	GEN WB18K5636
999	GEN WB18K5347
999	GEN WB18K5595
999	INSTALLATION INSTRUCTION
999	GEN 49-8876
