Aparts

JMP28GT1AD 1

JMP28GT1AD 1

Written by

in

JMP28GT1AD 1

Products

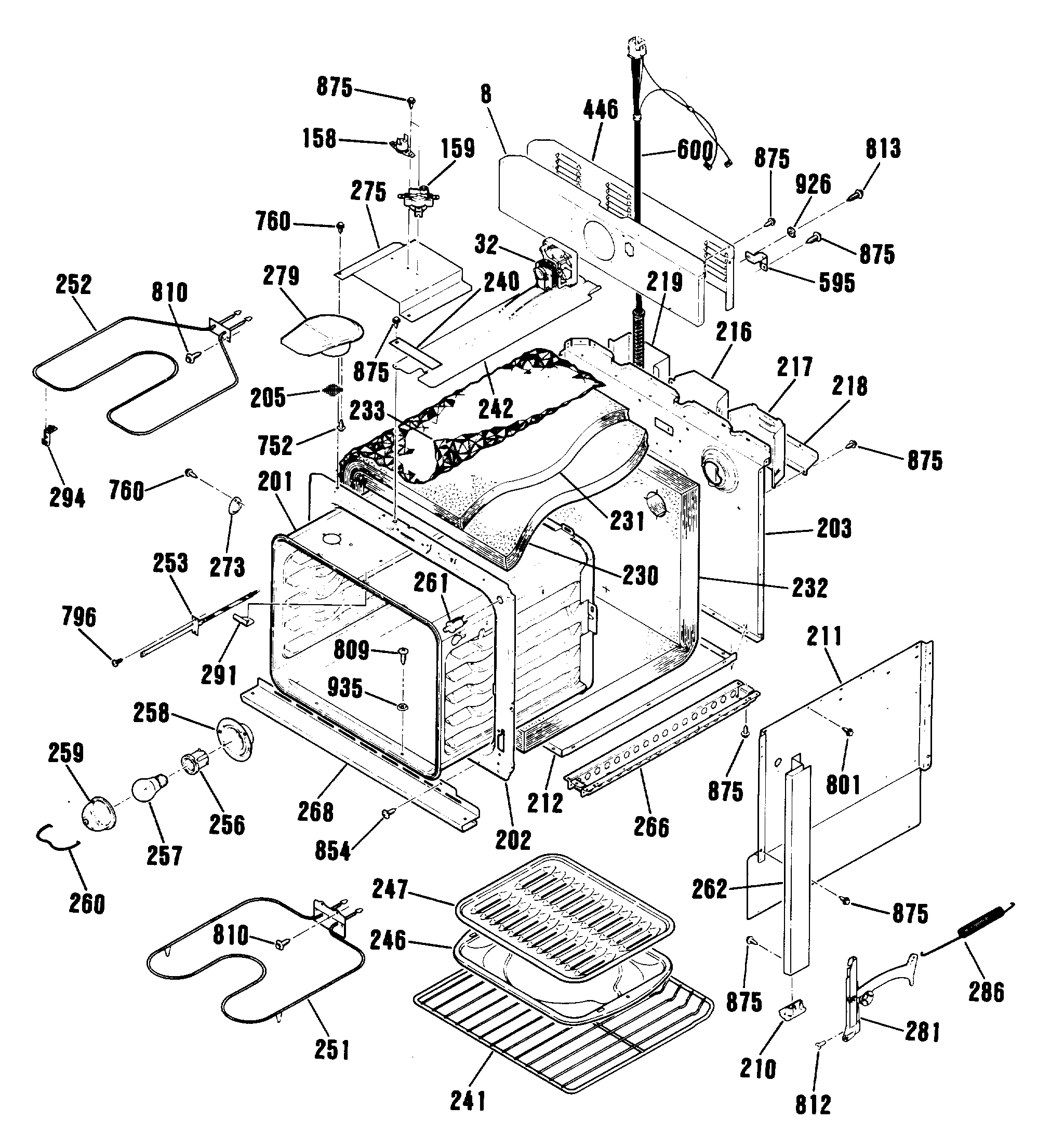

PositionProduct
8FAN SUPPORT-LOWER
32FAN ASM-LOWER
158WB24K5033 GE Oven Limit Switch
159WB24K5049 GE Oven Limit Switch
201GEN WB63K5086
202GEN WB63K5084
203WB63K5167 GE Back Main
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5176
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
240WB34K5138 GE Front Barrier Frame Latch
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
262GEN WB07K5269
262WB7K5101 GE Oven Vent Trim
266WB63K5079 GE Rail Base
268WB7K5268 GE Oven Lower Vent Trim
273GEN WB02X3230
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
281GEN WB14K5006
281GEN WB14K5007
286OVEN DOOR SPRING-UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
446WB34K5089 GE Wire Center Cover
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5346
752GEN WB00X6542
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
854GEN WB01X1328
854SCREW-BRT. NI.
875WH2X930 GE Screw
926GROUND WASHER
