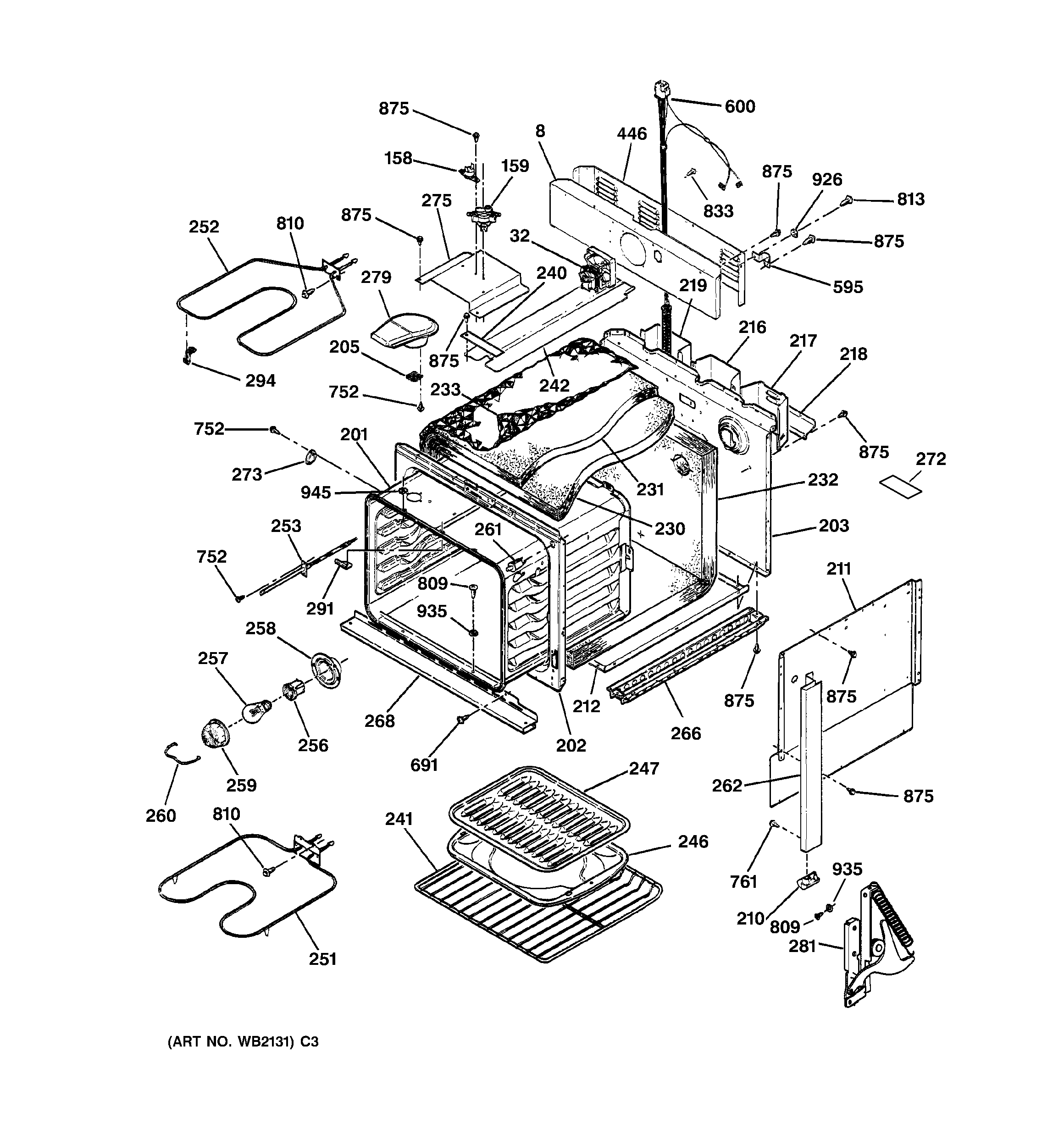

JMP31CL1CC BODY PARTS

JMP31CL1CC BODY PARTS

Written by

in

JMP31CL1CC BODY PARTS

Products

PositionProduct
8FAN SUPPORT-LOWER
32WB26K5072 GE Oven Fan Assembly
158WB24K5033 GE Oven Limit Switch
159WB24K5049 GE Oven Limit Switch
201GEN WB63T10053
202GEN WB63T10036
203WB63K5167 GE Back Main
205WB6K5026 GE Oven Smoke El Screw
210CAP END LWR TRIM (BQ)
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34T10006
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
240WB34K5138 GE Front Barrier Frame Latch
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10064 GE Oven Bake Element
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261WB24T10147 GE Oven SPDT Light Switch
262TRIM VENT (BQ)
262TRIM SDE (BQ)
266WB63K5079 GE Rail Base
268TRIM LOWER (BQ)
272WB35K5112 GE Insulator Module
273GEN WB02K5365
275GEN WB34T10004
279VENT BOX ASM-BLACK
281WB10T10043 GE Oven Left Door Hinge
281WB10T10042 GE Oven Right Door Hinge
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
446GEN WB34T10005
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5346
691GEN WB01K5163
752WB1K5200 GE Oven Screw 340531
761WB1K5134 GE Gray Screw
761WB1K5029 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
833WB1X1131 GE Screw 6-32
875WH2X930 GE Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
