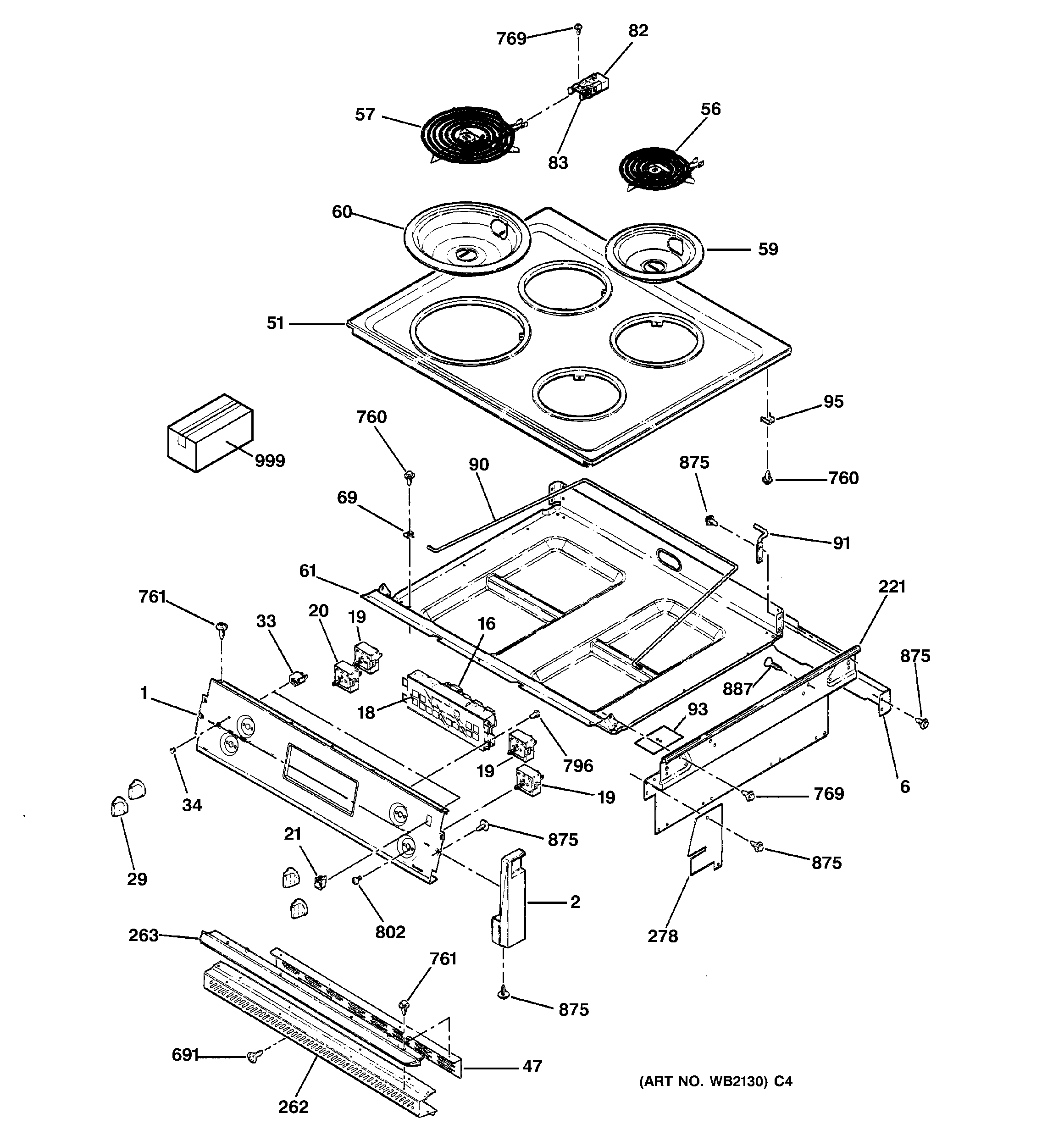

JMP31CL1CC CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB36K5567
2	CAP END RT (BQ)
2	CAP END LT (BQ)
6	WB37K5022 GE Oven Back Panel
16	ERC3B2K5 OVEN CONTROL
18	GEN WB27T10364
19	WB24T10022 GE Oven Infinite Switch
20	WB24T10025 SWITCH INFIN(2500W)
21	SWITCH ROCKER (BQ)
29	KNOB INF (BQ)
33	WB25T10040 GE Oven Light Indicator
34	LENS
47	WB38K5029 GE Oven Vent Barrier
51	GEN WB62T10221
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61	WB64K5051 GE Oven Bottom Burner Box
69	WB2M87 GE Oven Support Rod Clamp
82	WB17T10006 GE Oven Burner Receptacle Block
83	GEN WB01T10014
90	GEN WB02K5226
91	WB14K5008 GE Oven Left Hinge Maintop
91	WB14K5009 GE Oven Right Maintop Hinge
93	WB34K5137 GE Oven Barrier Body Side External
95	WB1K5118 GE Oven Hinge Clip
221	WB63T10103 GE Upper Side Right Extension
221	WB63T10104 GE Upper Left Side Extension
262	TRIM VENT (BQ)
262	TRIM SDE (BQ)
263	TRIM I-BROW (BQ)
278	WB34T10087 GE Shield Front Lower Right
278	GEN WB34T10086
691	GEN WB01K5163
760	WB1X536 GE Oven Screw
761	WB1K5029 GE Oven Screw
761	WB1K5134 GE Gray Screw
769	WB1X500D GE Oven Screw Package
796	WB1K5116 GE Oven Screw
802	GEN WB01K5123
875	WH2X930 GE Screw
887	GEN WB01T10033
999	GEN 31-10417
999	GEN 31-10514
999	MANUAL MINI & WD ASM
999	GEN 49-80330
