JMP31WC3WW CONTROL PANEL & COOKTOP

JMP31WC3WW CONTROL PANEL & COOKTOP

Written by

in

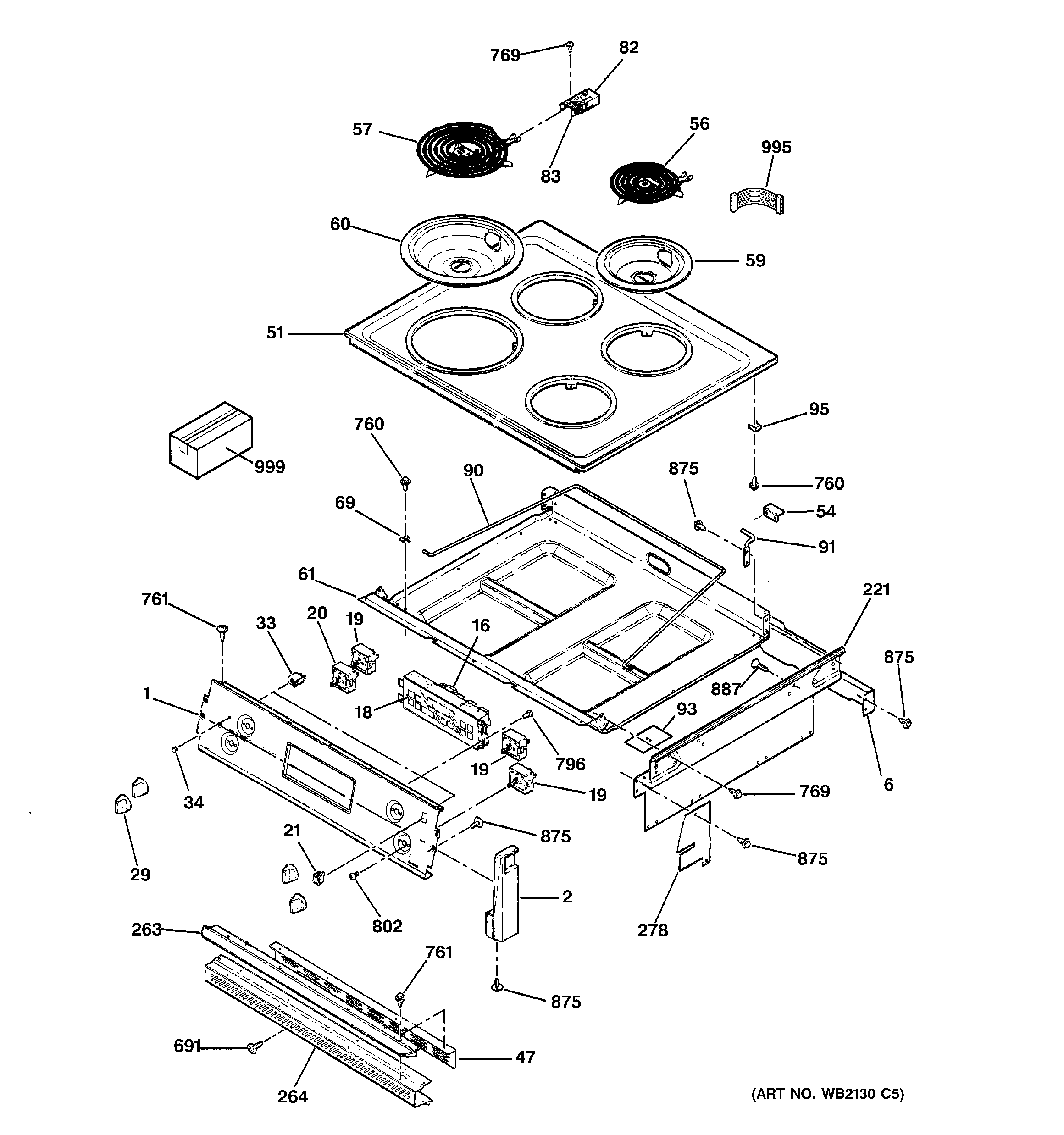

JMP31WC3WW CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB36K5565
1	WB36X20143 GE Oven Control Panel
1	GEN WB36K5567
2	WB07T10531 GE Right End Cap (Black)
2	WB07T10532 GE Oven End Cap Left (Black)
2	WB07T10533 GE Cap Right End (White)
2	CAP END RT (BQ)
2	CAP END LT (BQ)
2	WB07T10534 GE White Oven Endcap LT
6	WB37K5022 GE Oven Back Panel
16	ERC3B2K5 OVEN CONTROL
18	WB27K5337 GE Oven Clock Plate Black
18	GEN WB27T10364
18	WB27K5338 GE Oven White Clock Plate
19	WB24T10029 GE Oven Infinite Burner Switch
20	WB24T10025 SWITCH INFIN(2500W)
21	SWITCH ROCKER (BQ)
21	WB24K5035 GE Oven Rocker Switch
21	GEN WB24K5036
29	WB3K5109 GE Oven Black Infinite Knob
29	KNOB INF (BQ)
29	WB3K5110 GE Oven Infinite Control Knob
33	WB25T10040 GE Oven Light Indicator
34	LENS
47	WB38K5029 GE Oven Vent Barrier
51	GEN WB62T10221
51	WB62K5077 GE Oven Electric MTP White
51	WB62K5079 GE Oven Black Maintop
54	WB02X10739 GE Oven Anti-Tip Bracket
56	WB30X20478 GE Oven Range Cooktop 6" Surface Unit Burner Element
57	WB30X20481 GE Oven 8" Surface Element
59	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61	WB64K5051 GE Oven Bottom Burner Box
69	WB2M87 GE Oven Support Rod Clamp
82	WB17T10006 GE Oven Burner Receptacle Block
83	WB17T10009 GE Oven Clip Receptacle
90	GEN WB02K5226
91	WB14K5008 GE Oven Left Hinge Maintop
91	WB14K5009 GE Oven Right Maintop Hinge
93	WB34K5137 GE Oven Barrier Body Side External
95	WB1K5118 GE Oven Hinge Clip
221	WB63T10103 GE Upper Side Right Extension
221	WB63T10104 GE Upper Left Side Extension
263	GEN WB07K5379
263	WB7K5378 GE Oven Brow Trim
263	TRIM I-BROW (BQ)
264	WB7K5101 GE Oven Vent Trim
264	WB7K5236 GE Oven Vent Trim
264	TRIM VENT (BQ)
278	WB34T10087 GE Shield Front Lower Right
278	GEN WB34T10086
691	GEN WB01K5163
691	WB1K5162 GE Oven Black Screw
760	WB1X536 GE Oven Screw
761	WB1K5029 GE Oven Screw
761	WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761	WB1K5185 GE Oven White Screw
769	WB1X500D GE Oven Screw Package
796	WB1K5116 GE Oven Screw
802	GEN WB01K5122
875	WH2X930 GE Screw
887	WB01T10120 GE Screw 8-18 x 0.750 (Nickel)
995	GEN WB18T10136
999	GEN 31-15040
999	GEN 31-10830
999	WB18K5490 GE Oven Door Switch Wire Harness
999	WB18T10153 GE Motor Lock Wire Harness
999	GEN 49-80647
