JMP31WR2WH 0
Written by
in

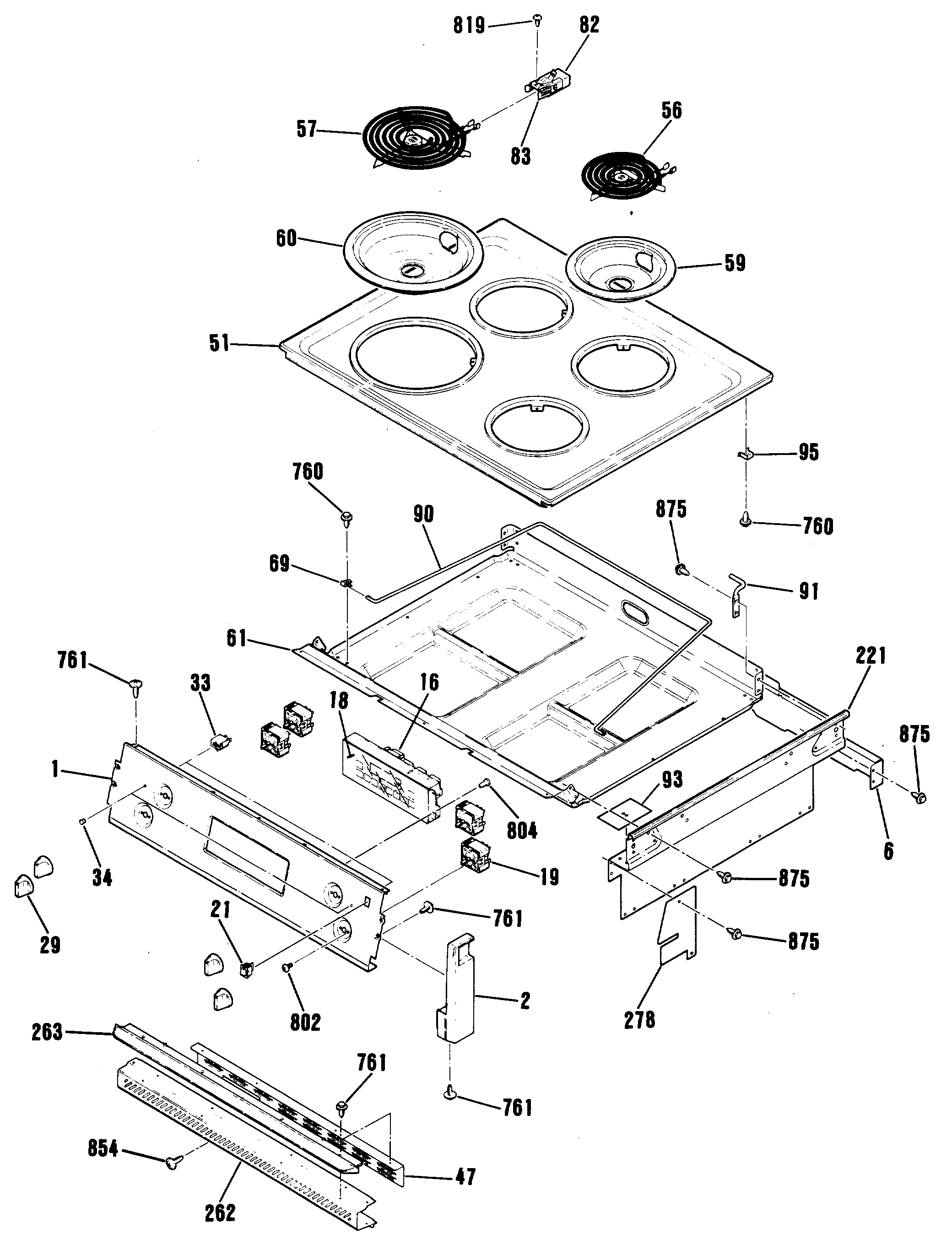

JMP31WR2WH 0
Products
Position
Product
1
GEN WB36K5235
2
GEN WB36K5227
2
WB07T10533 GE Cap Right End (White)
6
WB37K5022 GE Oven Back Panel
16
ERC II
18
GEN WB27K5031
19
WB24X29365 GE Oven Infinite Control Switch
21
GEN WB24K5036
29
WB3K5110 GE Oven Infinite Control Knob
33
WB25T10040 GE Oven Light Indicator
34
LENS
47
WB38K5029 GE Oven Vent Barrier
51
WB62K5077 GE Oven Electric MTP White
56
WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57
WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59
BOWL BURNER 6 (CH)
60
GEN WB31M0015
61
WB64K5051 GE Oven Bottom Burner Box
69
WB2M87 GE Oven Support Rod Clamp
82
WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83
GEN WB01K5128
90
GEN WB02K5226
91
WB14K5008 GE Oven Left Hinge Maintop
91
WB14K5009 GE Oven Right Maintop Hinge
93
WB34K5137 GE Oven Barrier Body Side External
95
WB1K5118 GE Oven Hinge Clip
201
GEN WB63K5086
221
EXTENSION UPR SD
262
WB7K5236 GE Oven Vent Trim
263
TRIM-I BROW GRAY-UP
278
GEN WB34K5135
760
WB1X536 GE Oven Screw
761
WB1K5062 GE Oven Screw
802
GEN WB01K5123
804
WB1X681 GE Oven Screw
833
WB1X1131 GE Screw 6-32
854
GEN WB01X1328
854
SCREW-BRT. NI.
875
WH2X930 GE Screw
999
GEN 31-13141
999
GEN WB18K5345
999
GEN WB18K5344
999
GEN 49-8278
999
INSTALLATION INSTRUCTION
999
GEN WB18K5347
999
GEN WB18K5468
←
30-4980-23-01 03 – COOKTOP PARTS
JGBS24DEK4CC BODY PARTS
→
