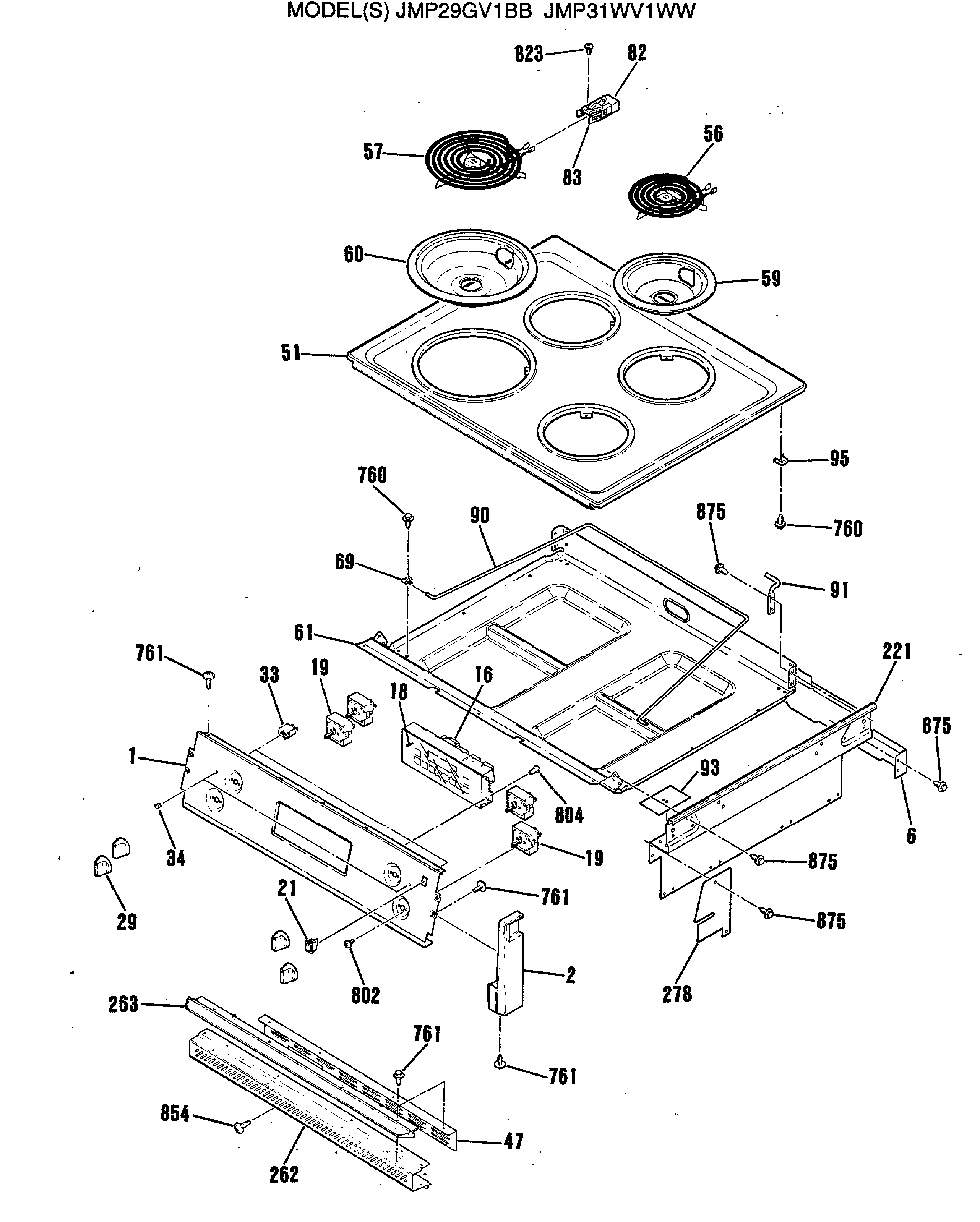

JMP31WV1WW 2

Products

Position	Product
1	WB36X20143 GE Oven Control Panel
2	GEN WB36K5227
2	WB07T10533 GE Cap Right End (White)
6	WB37K5022 GE Oven Back Panel
16	GEN WB27K5140
18	GEN WB27K5146
19	WB24X29365 GE Oven Infinite Control Switch
21	GEN WB24K5036
29	WB3K5110 GE Oven Infinite Control Knob
33	WB25T10040 GE Oven Light Indicator
34	LENS
47	WB38K5029 GE Oven Vent Barrier
51	WB62K5077 GE Oven Electric MTP White
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59	BOWL BURNER 6 (CH)
60	GEN WB31M0015
61	WB64K5051 GE Oven Bottom Burner Box
69	WB2M87 GE Oven Support Rod Clamp
82	WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83	GEN WB01K5128
90	GEN WB02K5226
91	WB14K5009 GE Oven Right Maintop Hinge
91	WB14K5008 GE Oven Left Hinge Maintop
93	WB34K5137 GE Oven Barrier Body Side External
95	WB1K5118 GE Oven Hinge Clip
221	EXTENSION UPR SD
262	GEN WB07K5179
262	WB7K5236 GE Oven Vent Trim
263	GEN WB07K5379
278	GEN WB34K5135
760	WB1X536 GE Oven Screw
761	WB1K5062 GE Oven Screw
802	GEN WB01K5123
804	WB1X681 GE Oven Screw
823	WB1X1425 GE Oven SCW 8ABX.250
833	WB1X1131 GE Screw 6-32
854	GEN WB01X1328
854	SCREW-BRT. NI.
875	WH2X930 GE Screw
999	USE CARE MANUAL
999	GEN 31-13177
999	INSTALLATION INSTRUCTION
999	GEN WB18K5468
999	GEN WB18K5347
999	GEN WB18K5345
999	GEN WB18K5344
