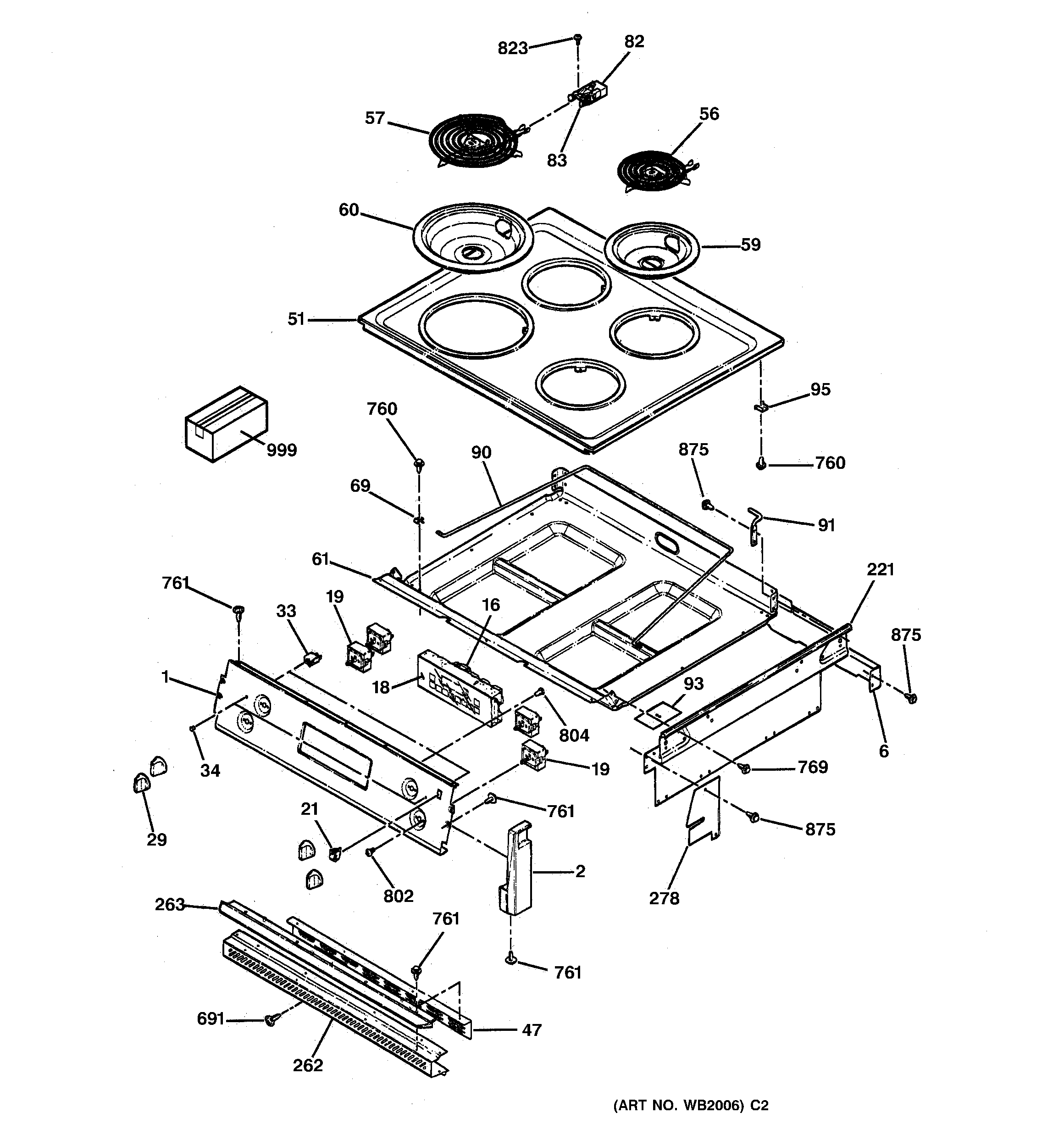

JMP31WW1WW COOKTOP & CONTROL PANEL

Products

PositionProduct
1WB36X20143 GE Oven Control Panel
2GEN WB36K5227
2WB07T10533 GE Cap Right End (White)
6WB37K5022 GE Oven Back Panel
16GEN WB27K5140
18GEN WB27K5146
19WB24X29365 GE Oven Infinite Control Switch
21GEN WB24K5036
29WB3K5110 GE Oven Infinite Control Knob
33WB25T10040 GE Oven Light Indicator
34LENS
46WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
47WB38K5029 GE Oven Vent Barrier
51WB62K5077 GE Oven Electric MTP White
56WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
59BOWL BURNER 6 (CH)
60GEN WB31M0015
61WB64K5051 GE Oven Bottom Burner Box
69WB2M87 GE Oven Support Rod Clamp
82WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83GEN WB01K5128
90GEN WB02K5226
91WB14K5009 GE Oven Right Maintop Hinge
91WB14K5008 GE Oven Left Hinge Maintop
93WB34K5137 GE Oven Barrier Body Side External
95WB1K5118 GE Oven Hinge Clip
221EXTENSION UPR SD
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
262WB7K5236 GE Oven Vent Trim
262GEN WB07K5179
263GEN WB07K5379
278GEN WB34K5135
530WB48X10056 GE Broil Pan Set, Large Porcelain
691GEN WB01K5163
691WB1K5169 GE Trim Screw 10-16 X 3/8" White
760WB1X536 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB1K5134 GE Gray Screw
761WB1K5062 GE Oven Screw
769WB1X500D GE Oven Screw Package
802GEN WB01K5123
804WB1X681 GE Oven Screw
823WB1X1425 GE Oven SCW 8ABX.250
833WB1X1131 GE Screw 6-32
856WB1X1293 GE Oven Screw
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
911GEN WB01K5124
955GEN WB02M0009
999GEN 31-13177
999USE CARE MANUAL
999GEN SR10106
999GEN WB18K5344
999GEN WB18K5595
999INSTALLATION INSTRUCTION
999GEN WB18K5347
999GEN WB18K5636
