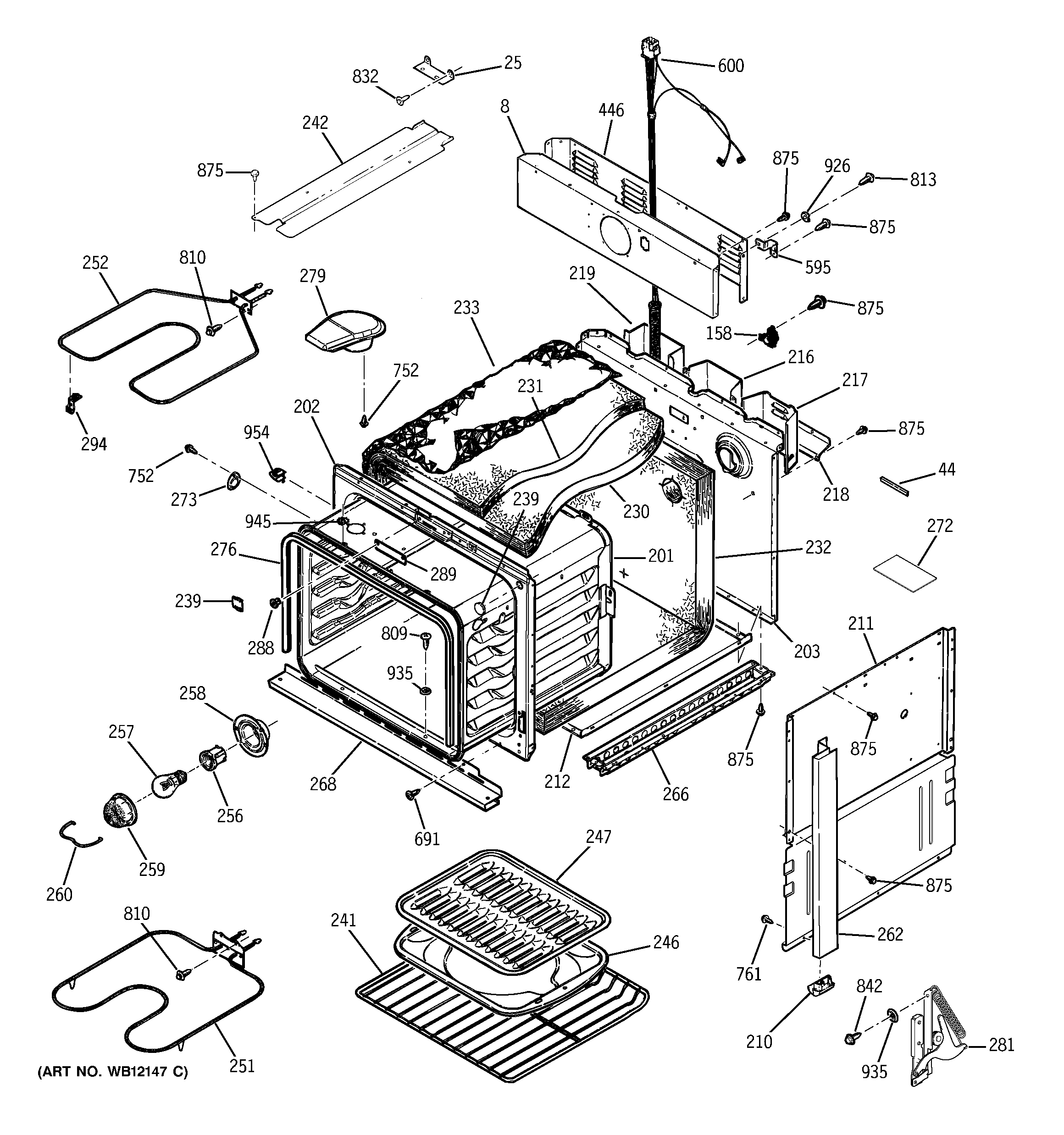

JMS08BA2AD BODY PARTS

JMS08BA2AD BODY PARTS

Written by

in

JMS08BA2AD BODY PARTS

Products

PositionProduct
8FAN SUPPORT-LOWER
25GEN WB02X9131
44GEN WB02K5225
158GEN WB24K5029
201GEN WB63T10053
202GEN WB63T10036
203WB63K5167 GE Back Main
210GEN WB07K5176
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34T10006
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
230WB35K5041 GE Inner Wrap Insulation
231INSULATION-OUTER-LOWER
232INSULATION BACK/BTM-LOW
233GEN WB34K5080
239PLUG ROUND
239WB2X9189 GE Oven Plug – REC
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10064 GE Oven Bake Element
252WB44K5009 GE Oven Broil Element
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
262WB07T10079 GE Oven Side Trim (White)
262WB7K5101 GE Oven Vent Trim
266WB63K5079 GE Rail Base
268WB7K5268 GE Oven Lower Vent Trim
272WB35K5112 GE Insulator Module
273GEN WB02K5365
276GEN WB32K5019
279VENT BOX ASM-BLACK
281GEN WB10T10001
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
294WB2X9719 GE Oven Support Bracket Clip
446WB34K5089 GE Wire Center Cover
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5346
691WB1K5162 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5029 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
832WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
954THERMOSTAT BULB RET CLIP
