JMS10GR2AD 1

JMS10GR2AD 1

Written by

in

JMS10GR2AD 1

Products

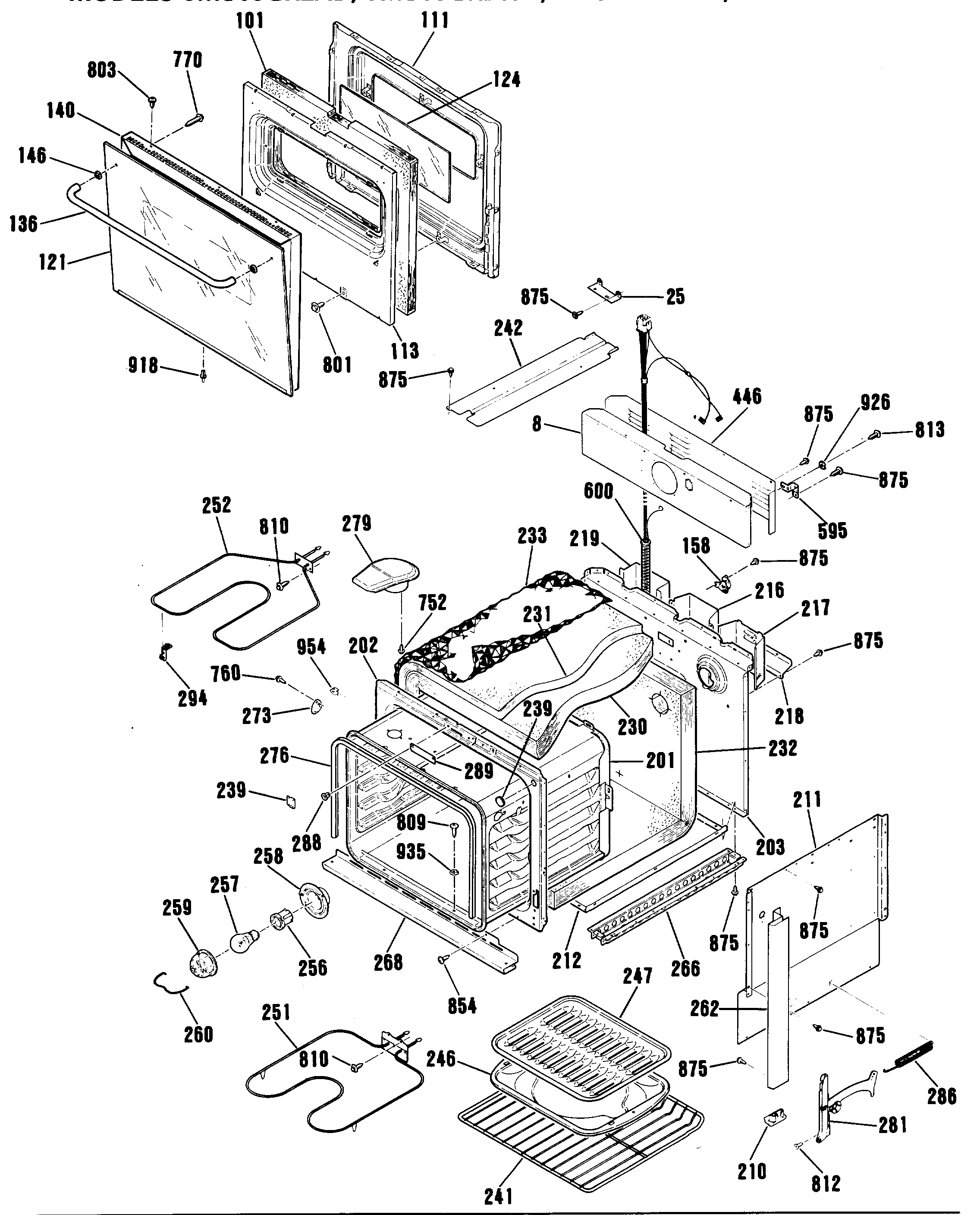

PositionProduct
8FAN SUPPORT-LOWER
25GEN WB02X9131
101WB35K5054 GE Oven Door Insulation
111GEN WB55K5016
113GEN WB02K5127
121GEN WB57K5108
124OVEN DOOR GLASS
136GEN WB15K5023
140WB56K5158 GE Oven Door Frame
146GEN WB02K5151
158GEN WB24K5029
201GEN WB63K5086
202GEN WB63K5084
203GEN WB63K5078
210GEN WB07K5176
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
230WB35K5041 GE Inner Wrap Insulation
231INSULATION-OUTER-LOWER
232INSULATION BACK/BTM-LOW
233GEN WB34K5080
239WB2X9189 GE Oven Plug – REC
239PLUG ROUND
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
262WB7K5101 GE Oven Vent Trim
262GEN WB07K5269
266WB63K5079 GE Rail Base
268WB7K5268 GE Oven Lower Vent Trim
273GEN WB02X3230
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
286GEN WB09K5018
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
294WB2X9719 GE Oven Support Bracket Clip
446WB34K5089 GE Wire Center Cover
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5346
752GEN WB00X6542
760WB1X536 GE Oven Screw
770WB1K5072 GE Oven Screw
801WB1M1 GE Oven Screw
803SCREW
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
854GEN WB01X1328
875WH2X930 GE Screw
918WB1K5071 GE Oven Plastic Rivet
926GROUND WASHER
935GEN WB01X1201
954THERMOSTAT BULB RET CLIP
