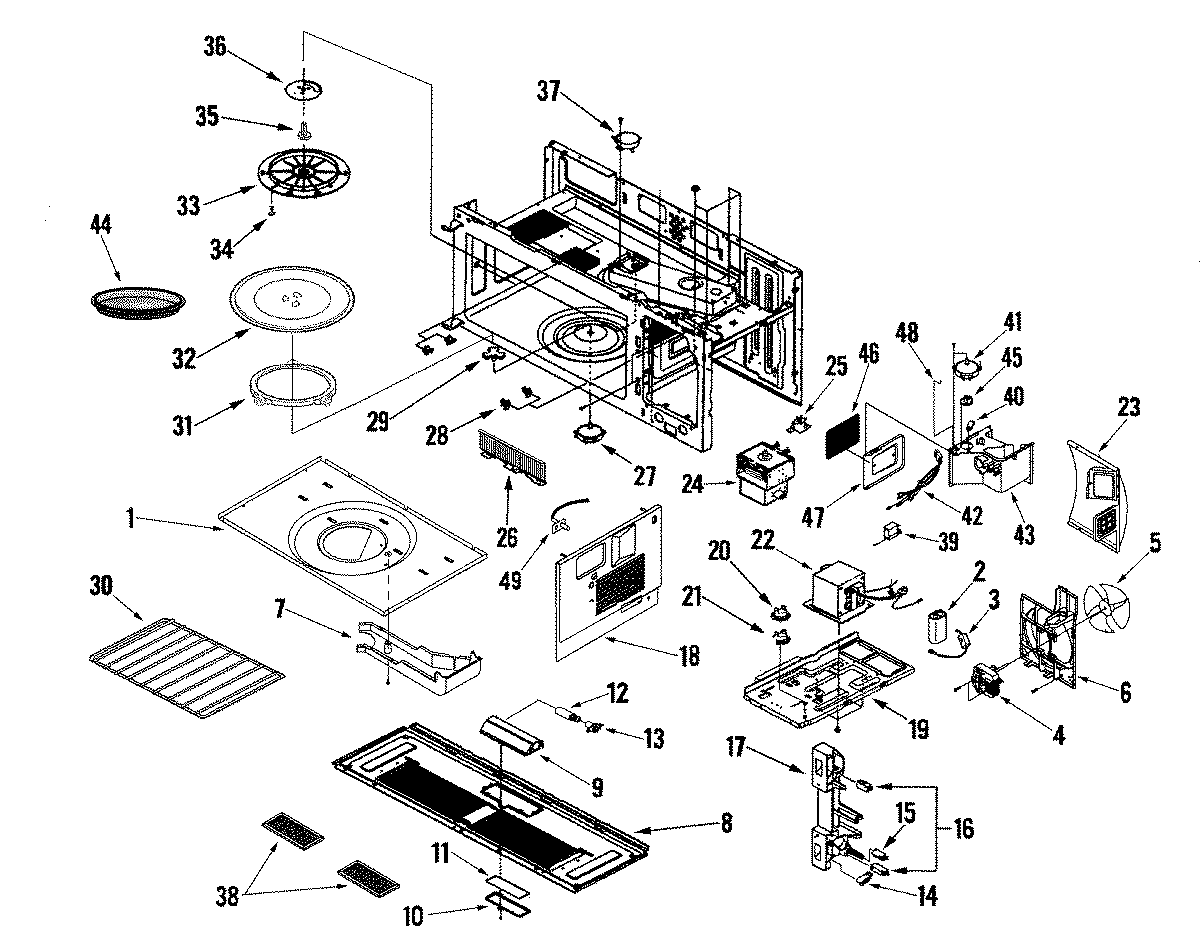

JMV8166BAW 01 – BASE/CAVITY/INTERNAL CONTROLS

Products

Position	Product
1	MAY DE97-00425A
2	2501-001016 Samsung Capacitor
3	DE91-70063D Samsung Oven Microwave High Voltage Diode
4	DE31-00046B Samsung Microwave Oven Ventilation Fan Motor
5	BLADE, FAN
6	DE63-00141A Samsung Cover Motor
7	MAY DE61-00502A
8	MAY DE61-00406B
10	DE63-00137B Samsung Cover-Glass Cooktop
11	DE64-00911A Samsung Glass Cooktop Lamp
12	4713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
13	DE47-00032B Samsung Microwave Oven HALOGEN Lamp Light Socket
14	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
15	MAY 3405-001033
17	LATCH-BODY
18	MAY DE97-00432A
19	MAY DE61-00490A
20	DE47-20034A Samsung Microwave Thermostat
22	MAY DE26-00122A
23	MAY DE61-00489A
24	WPW10126786 Whirlpool Microwave Magnetron
25	DE47-20007A Samsung Microwave Oven Thermostat
26	MAY DE63-00207A
27	MOTOR, DRIVE
28	MAY DE61-00501A
29	MAY DE67-00181A
30	MAY DE75-00044A
31	MAY DE97-00368B
32	MAY DE74-20016A
33	COVER-STIRRER
34	MAY DE66-20095B
35	HOLDER-STIRRED
36	MAY DE66-00127A
38	DE63-00196A Samsung Aluminum Air Filter
39	MAY DE59-50002A
40	WP3405-001034 Whirlpool Microwave Switch
41	MAY DE31-10095B
42	MAY DE39-00358B
43	MAY DE61-00498A
44	DE63-00234A Samsung Tray Convection
45	MAY DE66-00136A
46	MAY DE66-00154A
47	MAY DE66-00156A
48	MAY DE70-00394A
49	DE32-10013A Samsung Microwave Temperature Sensor
