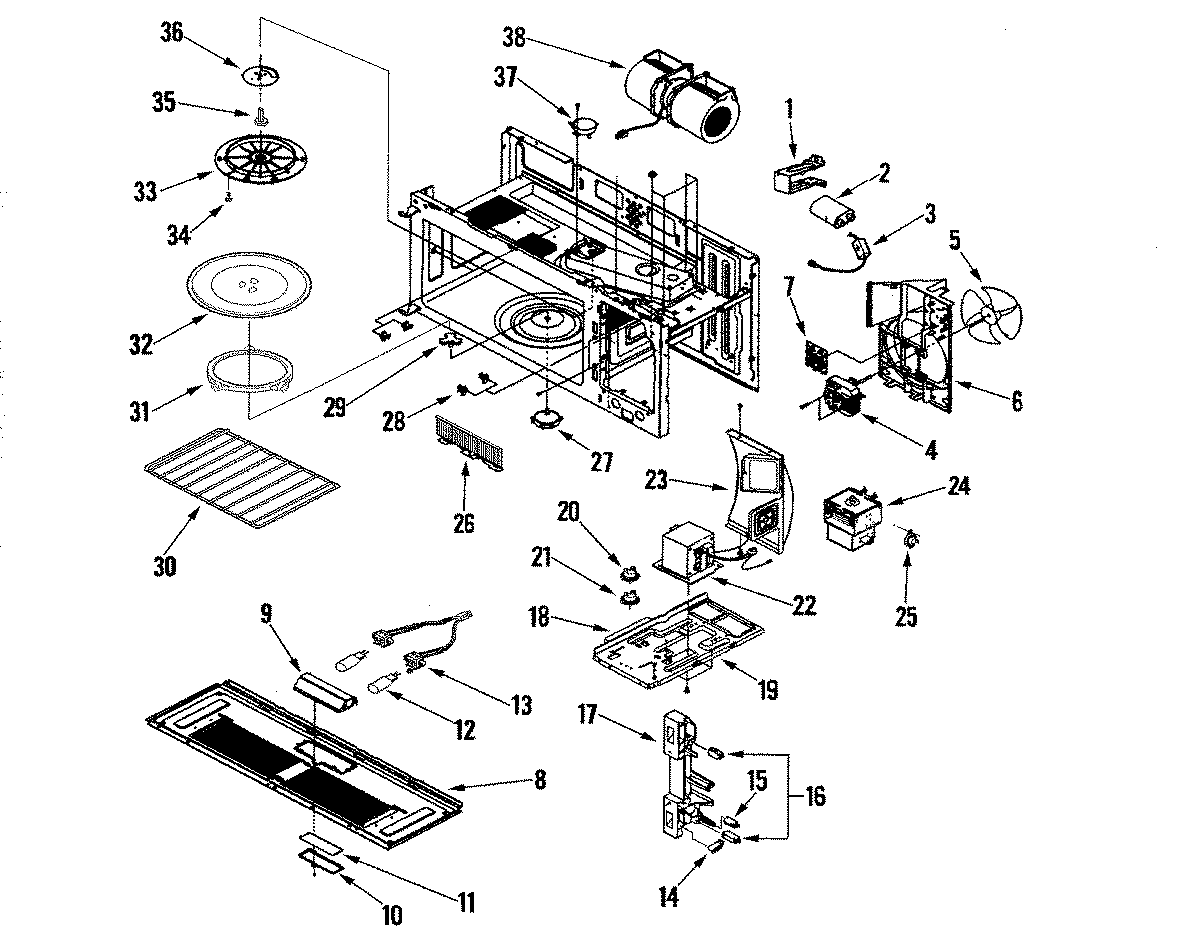

JMV8186AAB 01 – BASE/CAVITY/INTERNAL CONTROLS

Products

Position	Product
1	MAY DE61-00115A
2	2501-001011 Samsung Microwave High Voltage Capacitor
3	DE91-70063D Samsung Oven Microwave High Voltage Diode
4	DE31-00046B Samsung Microwave Oven Ventilation Fan Motor
5	BLADE, FAN
6	DE63-00141A Samsung Cover Motor
7	ASSY NOISE FILTER,SN-UF12B,250
8	BASE, BOTTOM (BLK)
9	BRACKET-BOTTOM LAMP
10	DE63-00137B Samsung Cover-Glass Cooktop
11	DE64-00911A Samsung Glass Cooktop Lamp
12	4713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
13	SOCKET-LAMP HALOGEN
14	DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
15	MAY 3405-001033
16	WP3405-001034 Whirlpool Microwave Switch
17	LATCH-BODY
18	CUSHION-SPONGE
19	BASE-PLATE
21	DE47-20034A Samsung Microwave Thermostat
22	DE26-00082D Samsung Trasnformer H.V SHV-U1870B 120V
23	BRACKET-DUCT REAR
24	ASSY-MAGNETRON
25	DE47-20007A Samsung Microwave Oven Thermostat
26	COVER-FRONT
27	MOTOR, DRIVE
28	DE61-00375A Samsung Holder Rack
29	DE67-00179A Samsung Coupler
30	DE97-00369A Samsung Wire Assembly Rack
31	DE97-00368A Samsung Microwave Guide Roller Assembly
32	DE74-20002b Samsung Range Microwave Oven Turntable Glass Cooking Tray
33	COVER-STIRRER
34	MAY DE66-20095B
35	MAY DE61-00505A
36	MAY DE66-00167A
