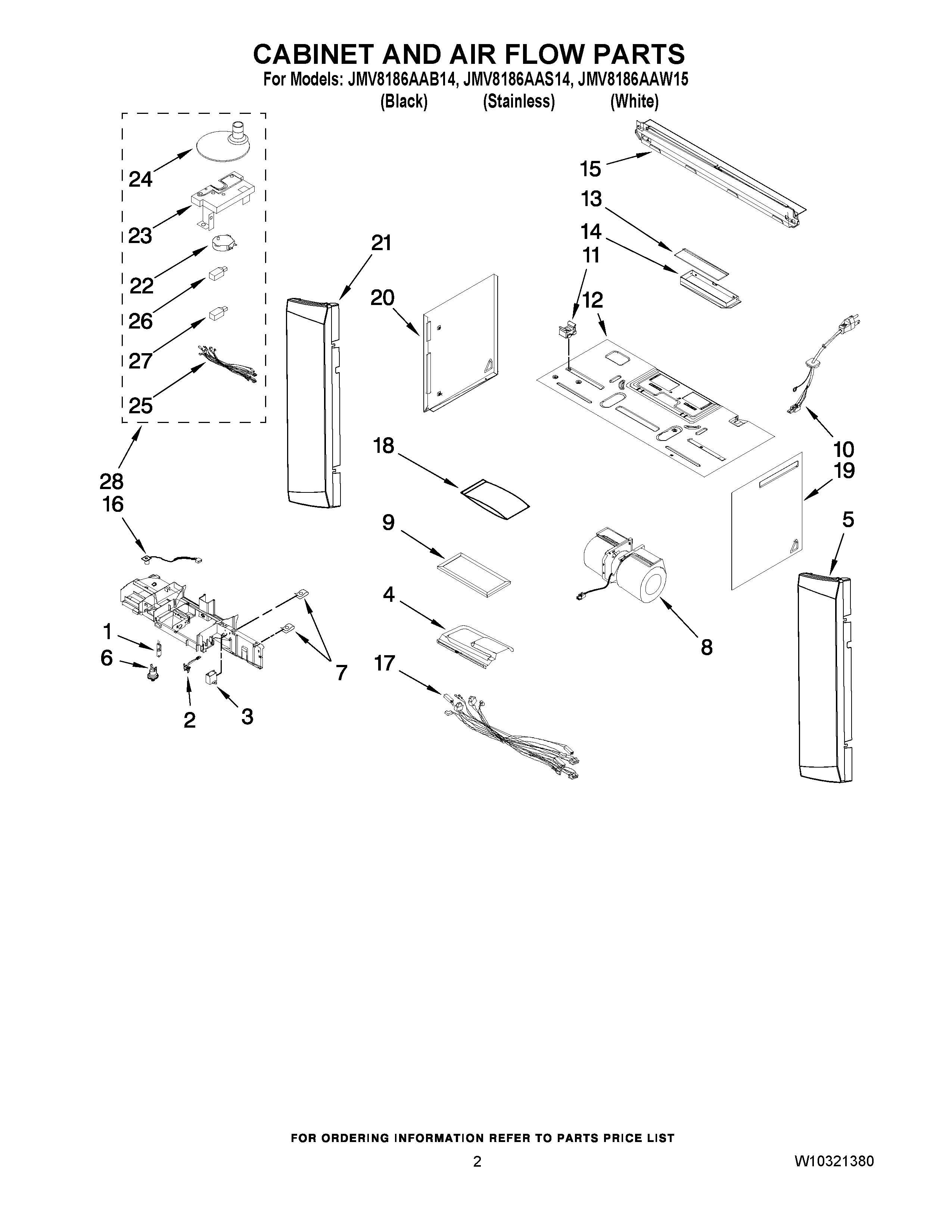

JMV8186AAB14 02 – CABINET AND AIR FLOW PARTS

JMV8186AAB14 02 – CABINET AND AIR FLOW PARTS

Written by

in

JMV8186AAB14 02 – CABINET AND AIR FLOW PARTS

Products

PositionProduct
NIMAY W10197644
NIMAY DE68-03144B
14713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
2SOCKET, LAMP
3MAY DE59-50002A
4BRACKET-DUCT UPPER
5PANEL, DECOR (RT-BLK)
5PANEL, DECOR (RT-WHT)
7MAY DE60-30063A
9DE63-00367H Samsung Charcoal Filter
10DE96-00218A Samsung Assembly Power Cord
11DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
12PANEL, TOP (WHT)
13COVER-DAMPER
14MAY DE72-40022A
15MAY DE70-00546A
16ASSY-SENSOR HUMIDITY,SMH7175WE
17ASSY WIRE LEAD-F,L140 JVM-1340
18DE92-90505E Samsung Hardware Assembly
19DE64-01407B Samsung Side Panel (RT-BLK)
20DE64-01406B Samsung Side Panel (LT-BLK)
21PANEL, DECOR (LT-WHT)
22DRIVE, MOTOR
23BRACKET, CAM
24LOUVER, CAM
25WIRE HARNESS-CAM,JVM-1860,-,-,
26MAY 3405-001051
27MAY 3405-001050
28ASSY-CAM LOUVER,JVM-1860,ASSEM
