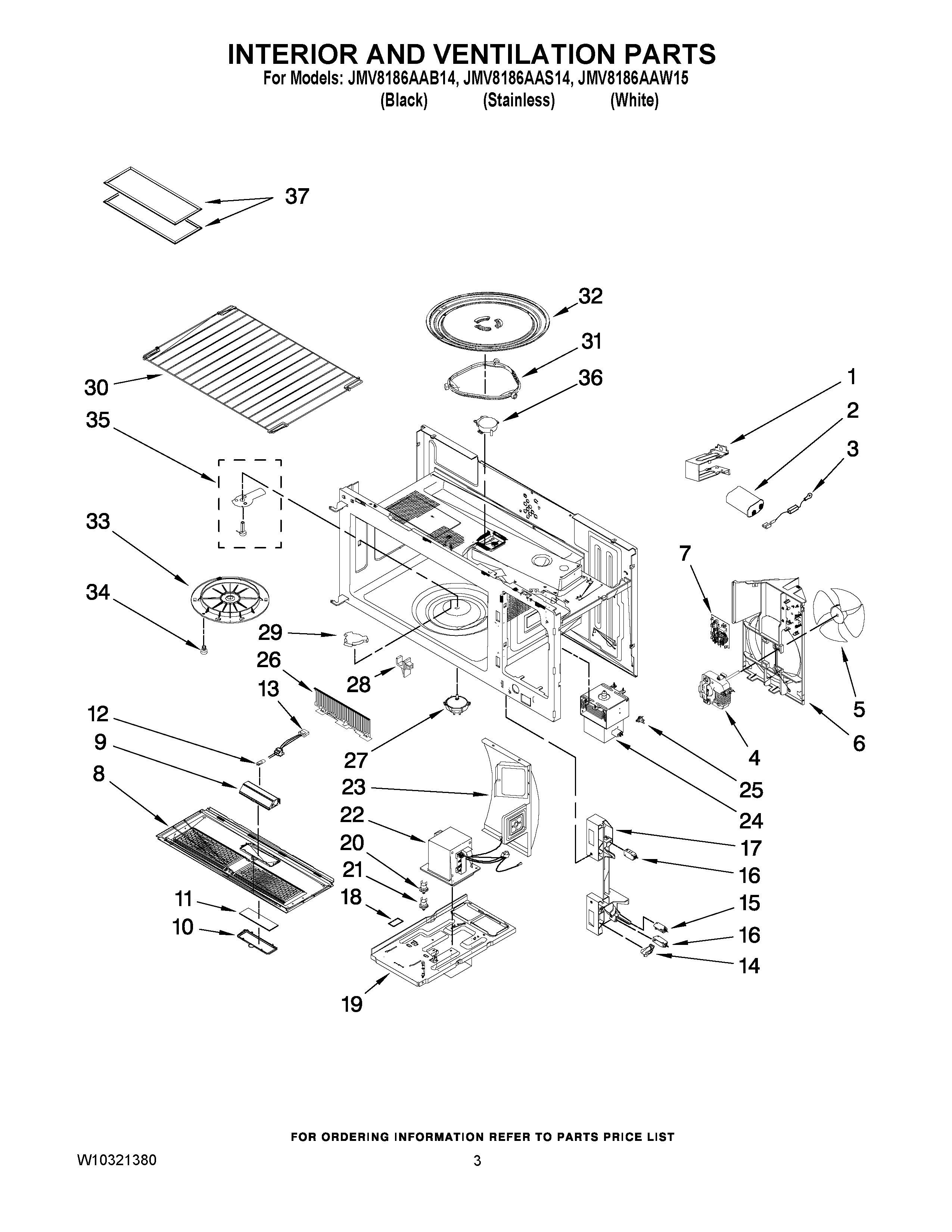

JMV8186AAB14 03 – INTERIOR AND VENTILATION PARTS

JMV8186AAB14 03 – INTERIOR AND VENTILATION PARTS

Written by

in

JMV8186AAB14 03 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1MAY DE61-00115A
22501-001011 Samsung Microwave High Voltage Capacitor
3DE91-70063D Samsung Oven Microwave High Voltage Diode
4DE31-00046B Samsung Microwave Oven Ventilation Fan Motor
5BLADE, FAN
6DE63-00141A Samsung Cover Motor
7ASSY NOISE FILTER,SN-UF12B,250
8BASE, BOTTOM (BLK)
8BASE, BOTTOM (GRY)
9BRACKET-BOTTOM LAMP
10DE63-00137B Samsung Cover-Glass Cooktop
10COVER-GLASS COOKTOP
11DE64-00911A Samsung Glass Cooktop Lamp
124713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
13SOCKET-LAMP HALOGEN
14DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing
15MAY 3405-001033
16WP3405-001034 Whirlpool Microwave Switch
17LATCH-BODY
18CUSHION-SPONGE
19BASE-PLATE
21DE47-20034A Samsung Microwave Thermostat
22DE26-00082D Samsung Trasnformer H.V SHV-U1870B 120V
23BRACKET-DUCT REAR
24ASSY-MAGNETRON
25DE47-20007A Samsung Microwave Oven Thermostat
26COVER-FRONT
27MOTOR, DRIVE
28DE61-00375A Samsung Holder Rack
29DE67-00179A Samsung Coupler
30DE97-00369A Samsung Wire Assembly Rack
31DE97-00368A Samsung Microwave Guide Roller Assembly
32DE74-20002b Samsung Range Microwave Oven Turntable Glass Cooking Tray
33COVER-STIRRER
34MAY DE66-20095B
35MAY DE66-00167A
37DE63-00196A Samsung Aluminum Air Filter
