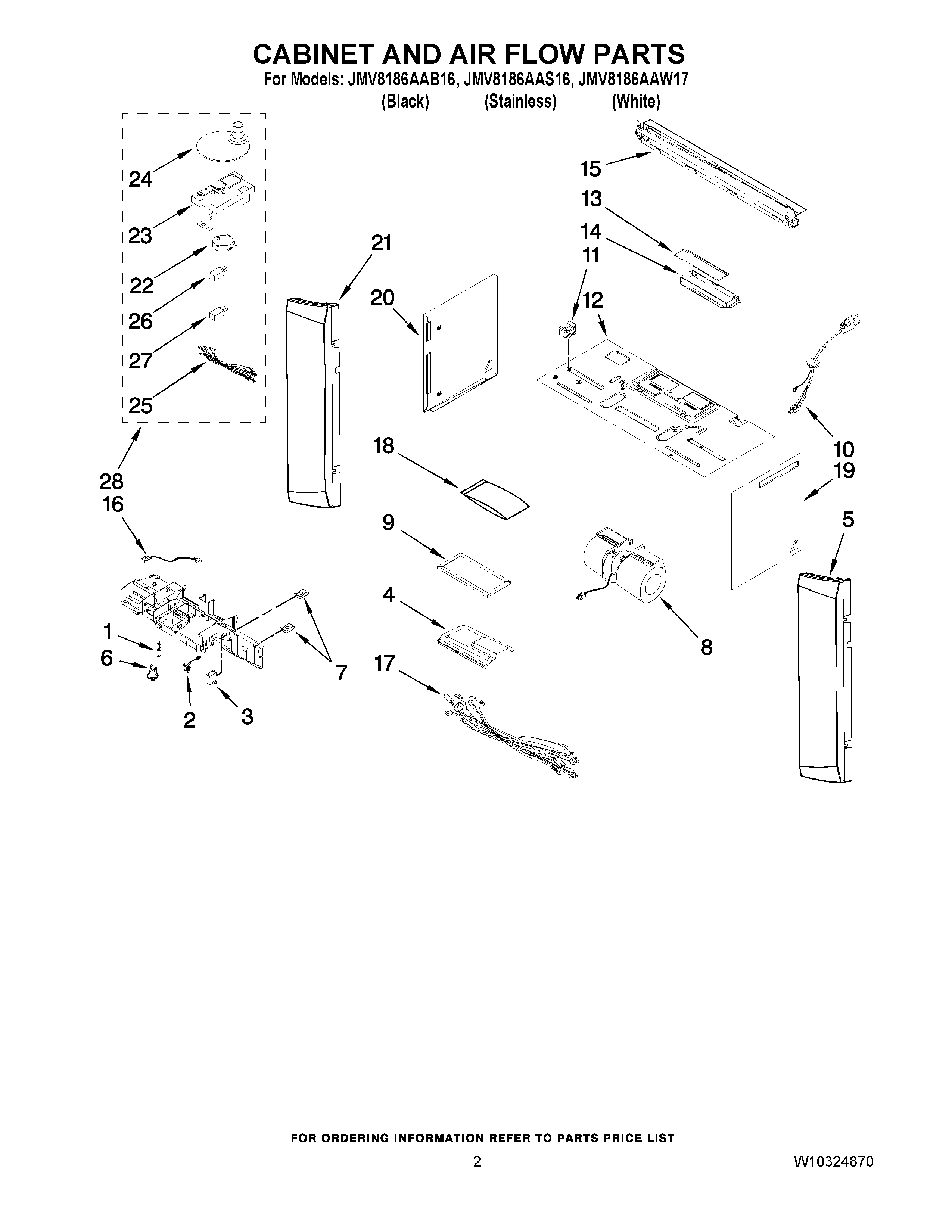

JMV8186AAB16 02 – CABINET AND AIR FLOW PARTS

Products

Position	Product
NI	MAY W10197644
NI	MAY DE68-03144B
1	4713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
2	SOCKET, LAMP
3	MAY DE59-50002A
4	BRACKET-DUCT UPPER
5	PANEL, DECOR (RT-BLK)
5	PANEL, DECOR (RT-WHT)
7	MAY DE60-30063A
8	DE31-00029B Samsung Motor Ventilation SMV-460U
9	DE63-00367H Samsung Charcoal Filter
10	DE96-00218A Samsung Assembly Power Cord
11	DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
12	PANEL, TOP (WHT)
13	COVER-DAMPER
14	MAY DE72-40022A
15	MAY DE70-00546A
16	SENSOR, GAS
17	ASSY WIRE LEAD-F,L140 JVM-1340
18	DE92-90505E Samsung Hardware Assembly
19	DE64-01407B Samsung Side Panel (RT-BLK)
20	DE64-01406B Samsung Side Panel (LT-BLK)
21	PANEL, DECOR (LT-WHT)
22	DRIVE, MOTOR
23	BRACKET, CAM
24	LOUVER, CAM
25	WIRE HARNESS-CAM,JVM-1860,-,-,
26	MAY 3405-001051
27	MAY 3405-001050
28	ASSY-CAM LOUVER,JVM-1860,ASSEM
