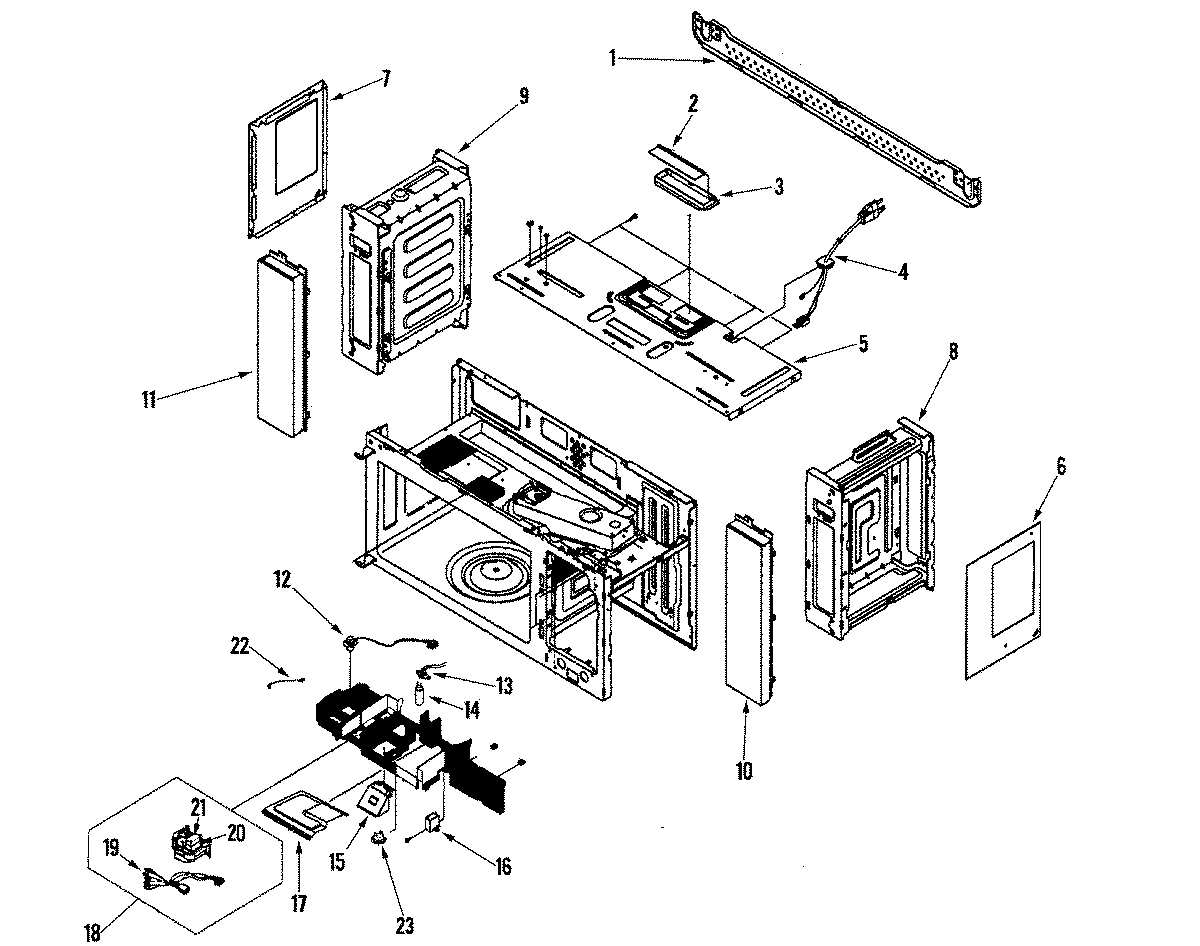

JMV8186AAS 02 – BODY/UPPER DUCTadmin2025-04-26T09:38:50+00:00JMV8186AAS 02 – BODY/UPPER DUCT
Products
| Position | Product |
|---|
| 1 | MAY DE70-00546A |
| 2 | COVER-DAMPER |
| 3 | MAY DE72-40022A |
| 4 | DE96-00218A Samsung Assembly Power Cord |
| 6 | DE64-01407B Samsung Side Panel (RT-BLK) |
| 7 | DE64-01406B Samsung Side Panel (LT-BLK) |
| 10 | PANEL, DECOR (RT-BLK) |
| 12 | ASSY-SENSOR HUMIDITY,SMH7175WE |
| 13 | SOCKET, LAMP |
| 14 | 4713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base |
| 15 | MAY DE63-00188A |
| 16 | MAY DE59-50002A |
| 17 | BRACKET-DUCT UPPER |
| 18 | ASSY-CAM LOUVER,JVM-1860,ASSEM |
| 18 | LOUVER, CAM |
| 18 | DRIVE, MOTOR |
| 18 | BRACKET, CAM |
| 19 | WIRE HARNESS-CAM,JVM-1860,-,-, |
| 20 | MAY 3405-001051 |
| 21 | MAY 3405-001050 |
| 22 | ASSY WIRE LEAD-F,L140 JVM-1340 |
