JMV8186AAW 03 – CONTROL PANEL/DOOR/GRILLE – Aparts

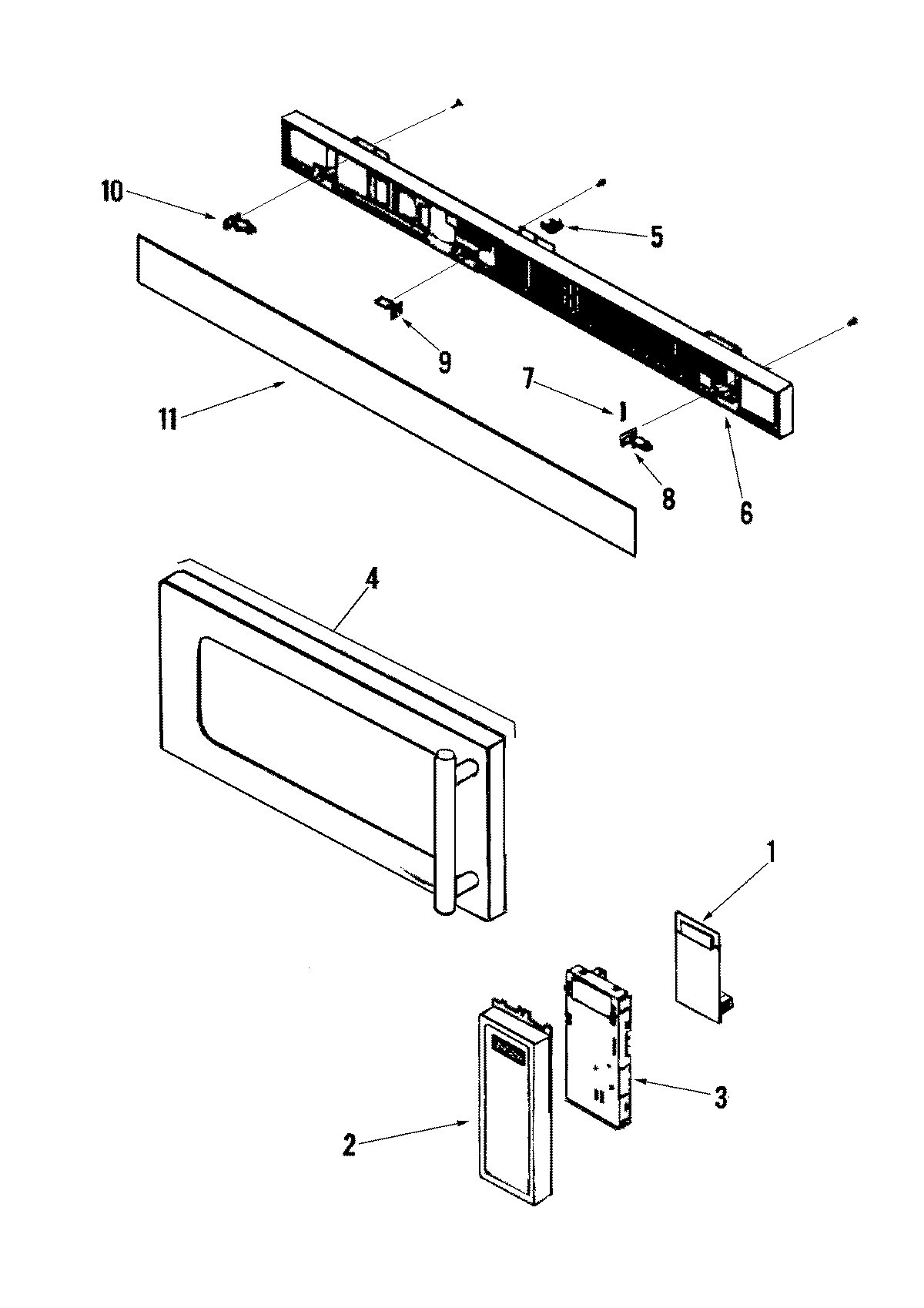

JMV8186AAW 03 – CONTROL PANEL/DOOR/GRILLE

Products

Position	Product
1	ASY PCB PARTS
2	MAY DE94-01331B
3	BRACKET, CONTROL PANEL
4	MAY DE94-01332B
5	EARTH-GRILLE
6	GRILLE (WHT)
7	SPRING ETC-LOUVER,JVM-2070,HSW
8	HINGE-GRILLE(R)
9	HINGE-GRILLE(M)
10	HINGE-GRILLE(L)
11	MAY DE97-00588C
