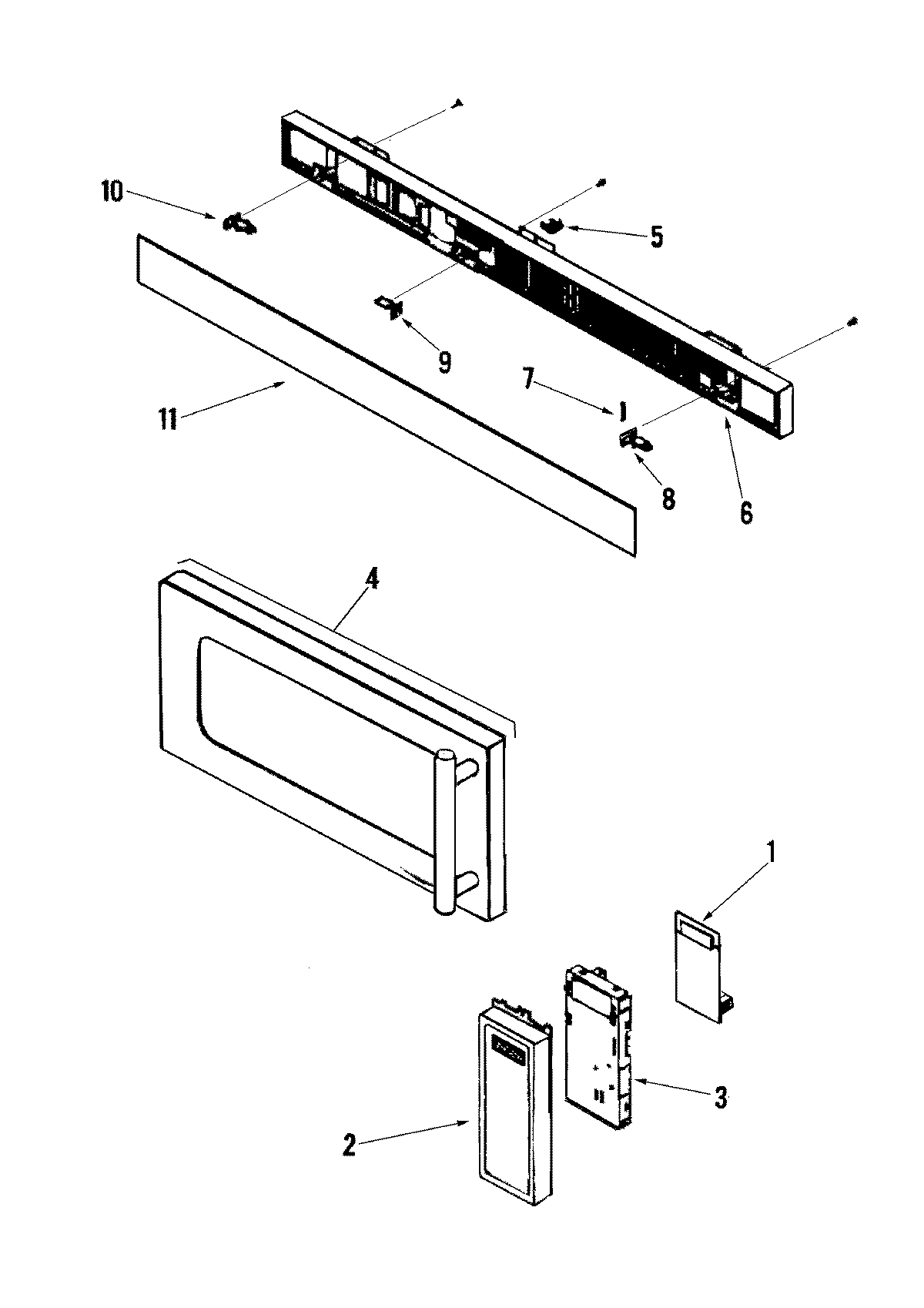

JMV8208BAB 03 – CONTROL PANEL/DOOR/GRILLE

Written by

Products

Position	Product
1	MAY W10127101
2	Panel Asy, Control Membrane, Lens and Bracket (Black)
3	DE97-00633A Samsung Assembly BKT-C/Panel
4	DE94-01398D Samsung Door Assembly Black
5	MAY DE61-00823A
6	MAY DE64-01455A
7	SPRING ETC-LOUVER,JVM-2070,HSW
8	HINGE-GRILLE(R)
9	HINGE-GRILLE(M)
10	HINGE-GRILLE(L)
11	MAY DE97-00656B
