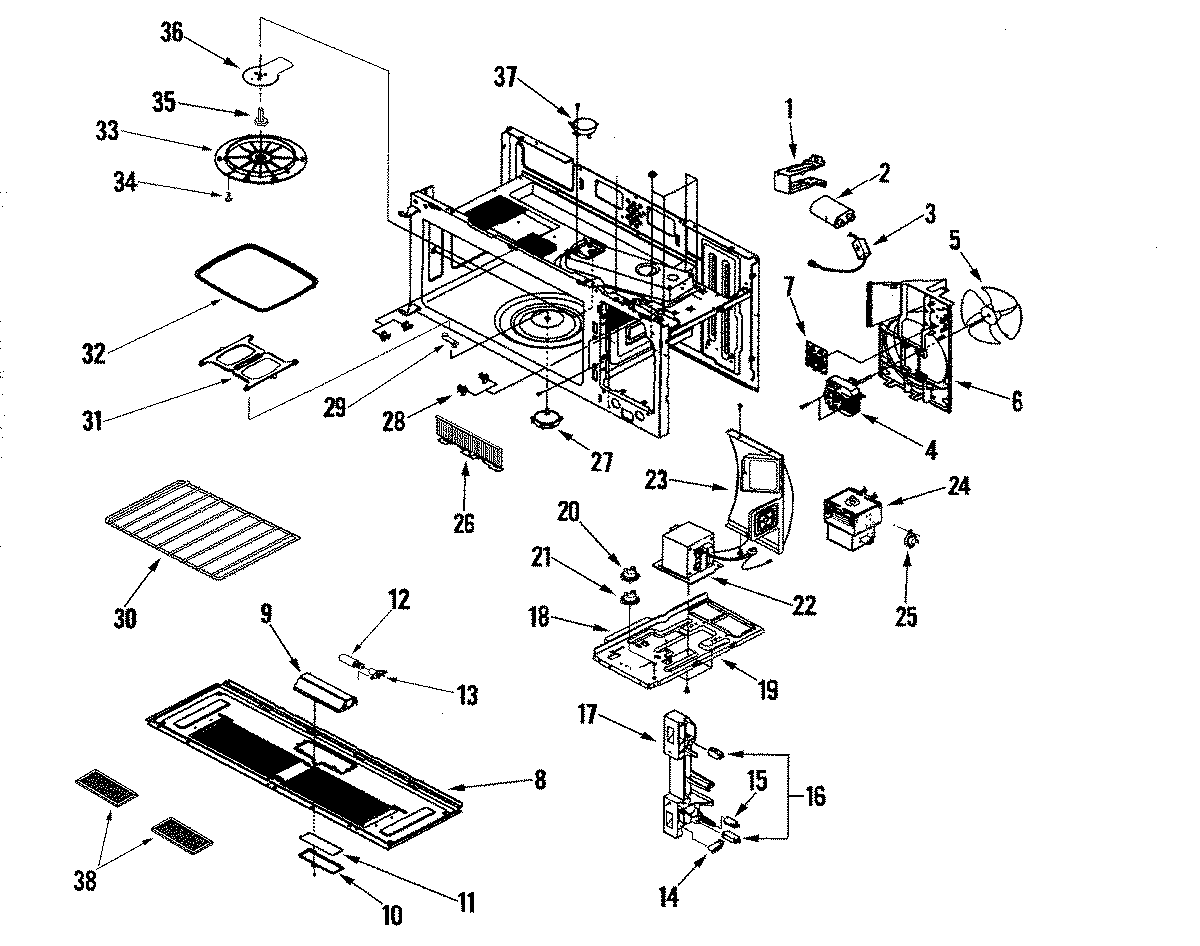

JMV8208BAW 01 – BASE/CAVITY/INTERNAL CONTROLSadmin2025-04-26T09:38:52+00:00JMV8208BAW 01 – BASE/CAVITY/INTERNAL CONTROLS
Products
| Position | Product |
|---|
| 1 | MAY DE61-00115A |
| 2 | 2501-001016 Samsung Capacitor |
| 3 | DE91-70063D Samsung Oven Microwave High Voltage Diode |
| 4 | DE31-00046B Samsung Microwave Oven Ventilation Fan Motor |
| 5 | BLADE, FAN |
| 6 | DE63-00141A Samsung Cover Motor |
| 7 | ASSY NOISE FILTER,SN-UF12B,250 |
| 8 | MAY DE61-00406B |
| 10 | DE63-00137B Samsung Cover-Glass Cooktop |
| 11 | DE64-00911A Samsung Glass Cooktop Lamp |
| 12 | 4713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base |
| 13 | DE47-00032B Samsung Microwave Oven HALOGEN Lamp Light Socket |
| 14 | DE66-90106B Samsung Washer Lower Lever Switch Ball Bearing |
| 15 | MAY 3405-001033 |
| 16 | WP3405-001034 Whirlpool Microwave Switch |
| 17 | LATCH-BODY,MODULAR-2,PP,-,-,-, |
| 18 | CUSHION-SPONGE |
| 19 | BASE-PLATE |
| 21 | DE47-20034A Samsung Microwave Thermostat |
| 23 | BRACKET-DUCT REAR |
| 24 | WPW10126786 Whirlpool Microwave Magnetron |
| 25 | DE47-20007A Samsung Microwave Oven Thermostat |
| 26 | COVER-FRONT |
| 28 | DE61-00375A Samsung Holder Rack |
| 29 | DE97-00648A Samsung Assembly COUPLER |
| 30 | DE97-00369A Samsung Wire Assembly Rack |
| 31 | MAY DE61-00855A |
| 32 | MAY DE63-00383A |
| 33 | COVER-STIRRER |
| 34 | MAY DE66-20095B |
| 35 | MAY DE61-00804A |
| 36 | MAY DE66-00184A |
| 37 | Motor, Turntable |
| 38 | DE63-00196A Samsung Aluminum Air Filter |
