JMV8208CB0 04 – INTERIOR AND VENTILATION PARTS
Written by
in

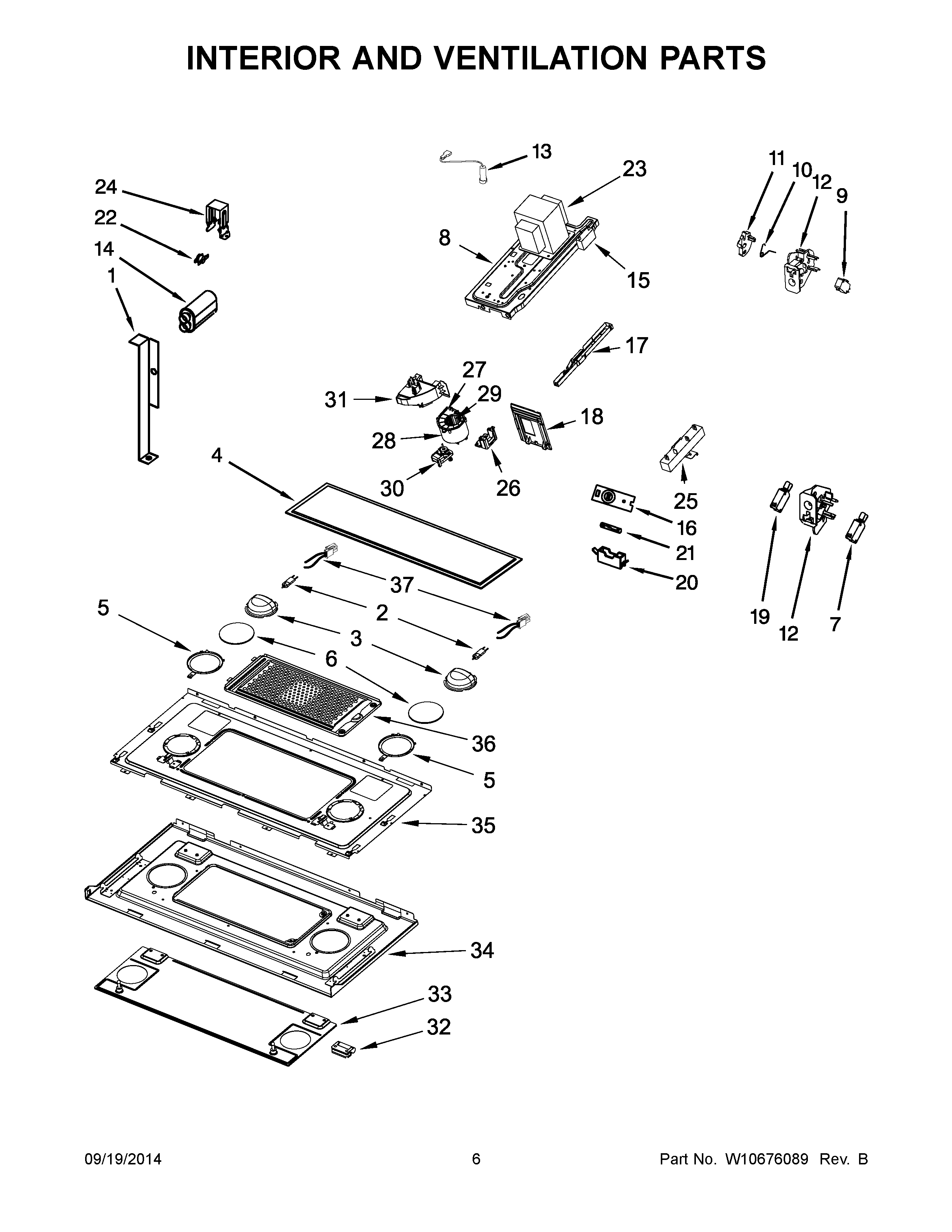

JMV8208CB0 04 – INTERIOR AND VENTILATION PARTS
Products
Position
Product
1
BRACKET, TOP CAVITY
2
MAY W10208564
3
MAY W10574986
4
MAY W10208631
5
MAY W10614207
6
MAY W10574987
7
SWITCH, MICRO V15T16-CC200
8
MAY W10631826
9
SWITCH, MICRO V15T16-CP200
10
MAY W10156812
11
MAY W10156811
12A
MAY W10156813
12
MAY 8206419
13
MAY W10575765
14
MAY W10561770
15
MAY W10245191
16
MAY W10536989
17
MAY W10540718
18
DEFLECTOR, AIR
19
SWITCH, MICRO V15T16-CZ200
20
MAY W10245194
21
MAY W10138793
22
MAY W10654514
23
MAY W10625371
24
MAY W10518719
25
MAY W10568805
26
MAY W10533480
27
MAY W10533502
28
MAY W10533501
29
MAY W10533503
30
MAY W10536556
31
AIR GUIDE, MAGNETRON
32
MAY W10574978
33A
MAY W10614211
33
MAY W10614213
34
MAY W10614222
35
MAY W10614209
36
MAY W10614204
37
MAY W10657044
←
